Sq Ft
4,298 FT²

Beds
4

Baths
4.5

Stories
1

Garage
3

Depth
108' 5"

Width
101' 8"

From
$1,515.00

Front View

Rear View

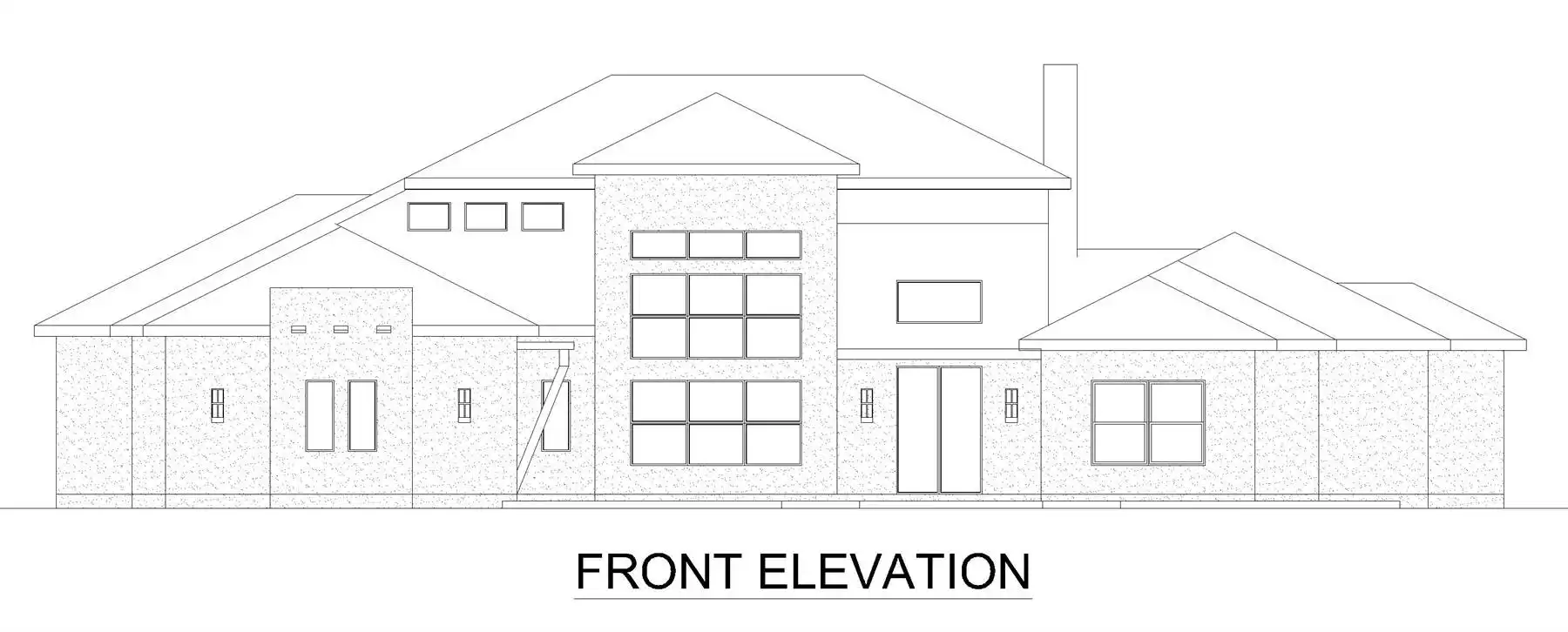

Front View

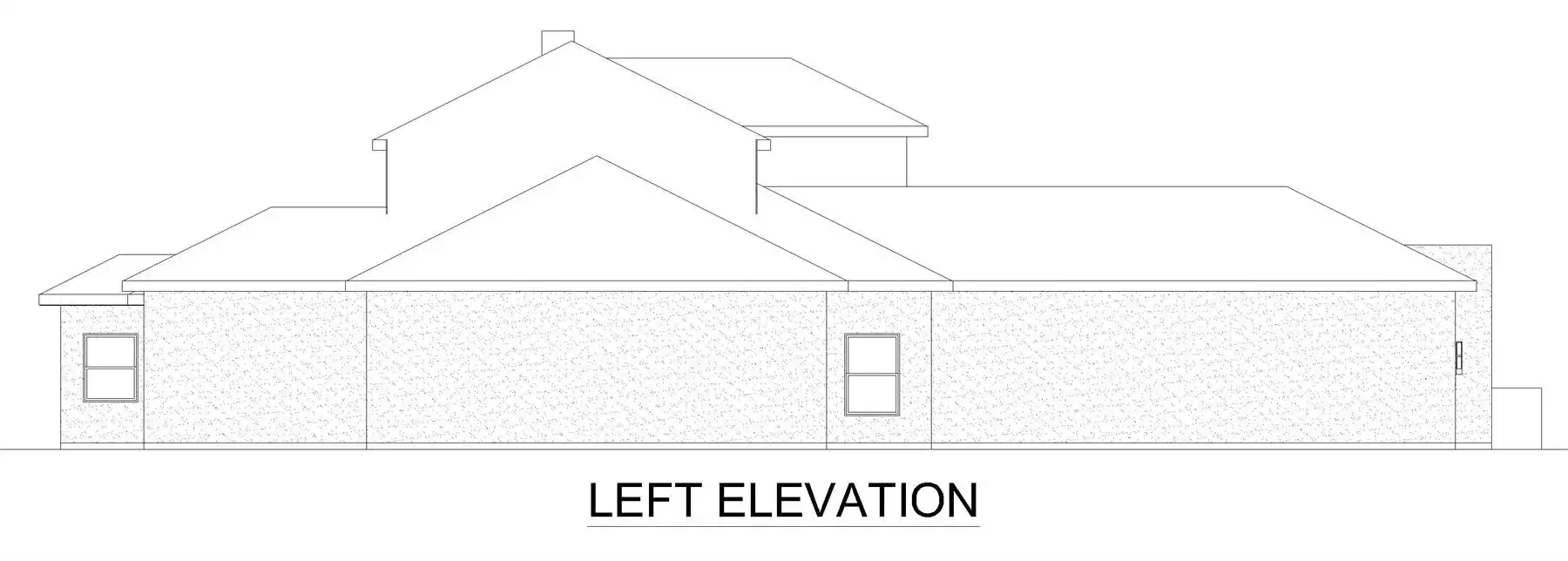

Left View

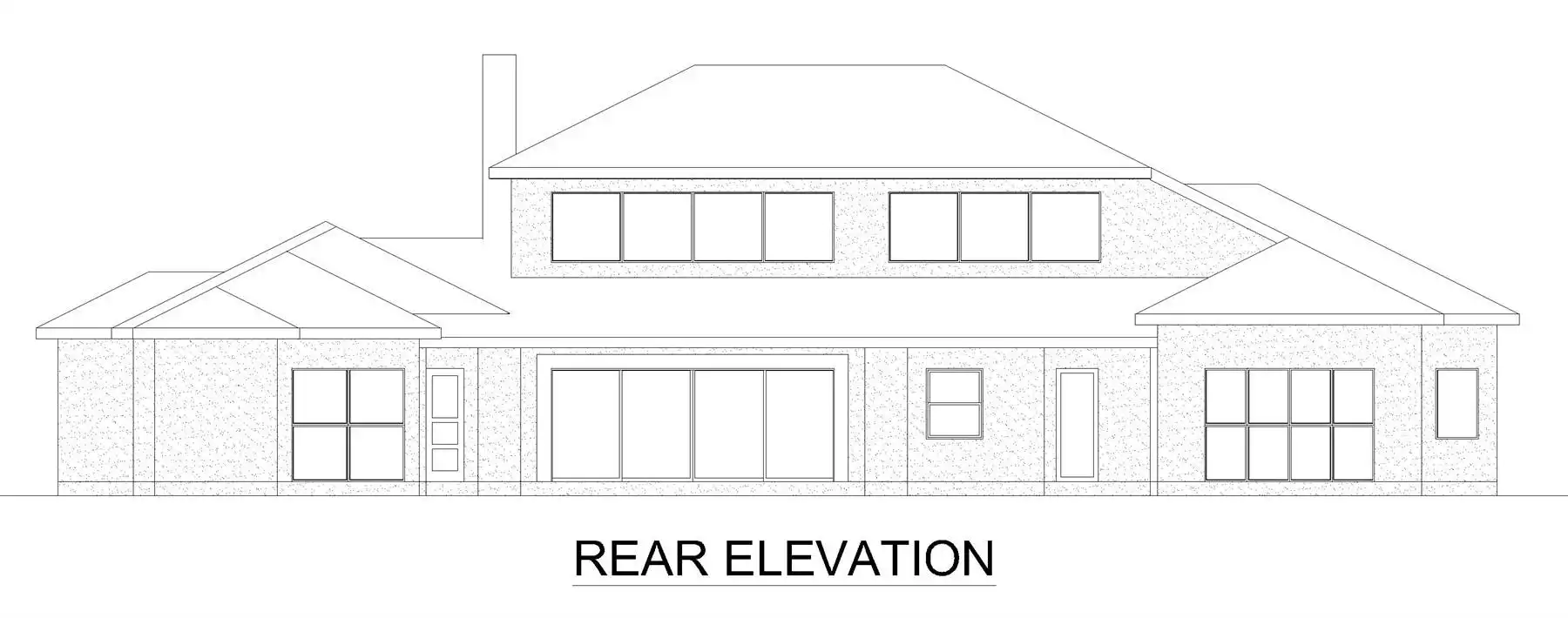

Rear View

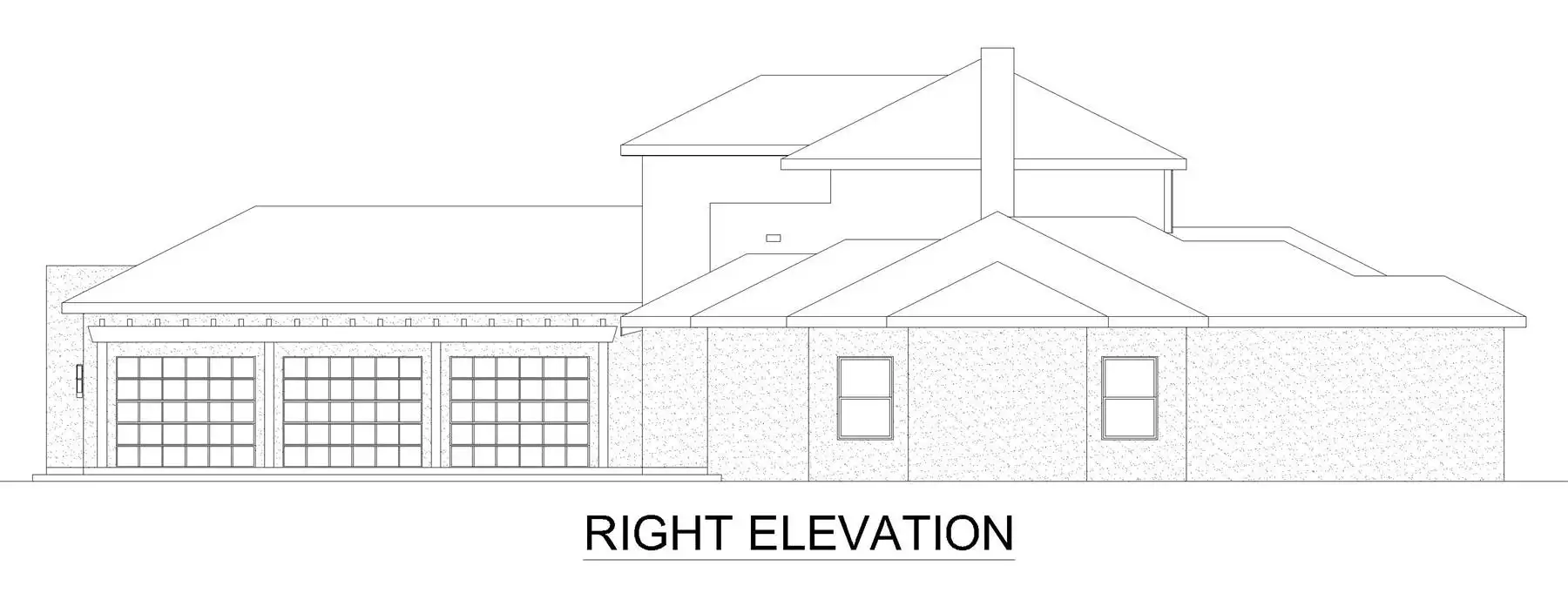

Right View

View All 6 Images | Photographs may reflect modified home

Sq Ft

4,298 FT²

From

$1,515.00

Beds

Baths

4.5

Stories

Garage

Depth

108' 5"

Width

101' 8"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

1st Floor

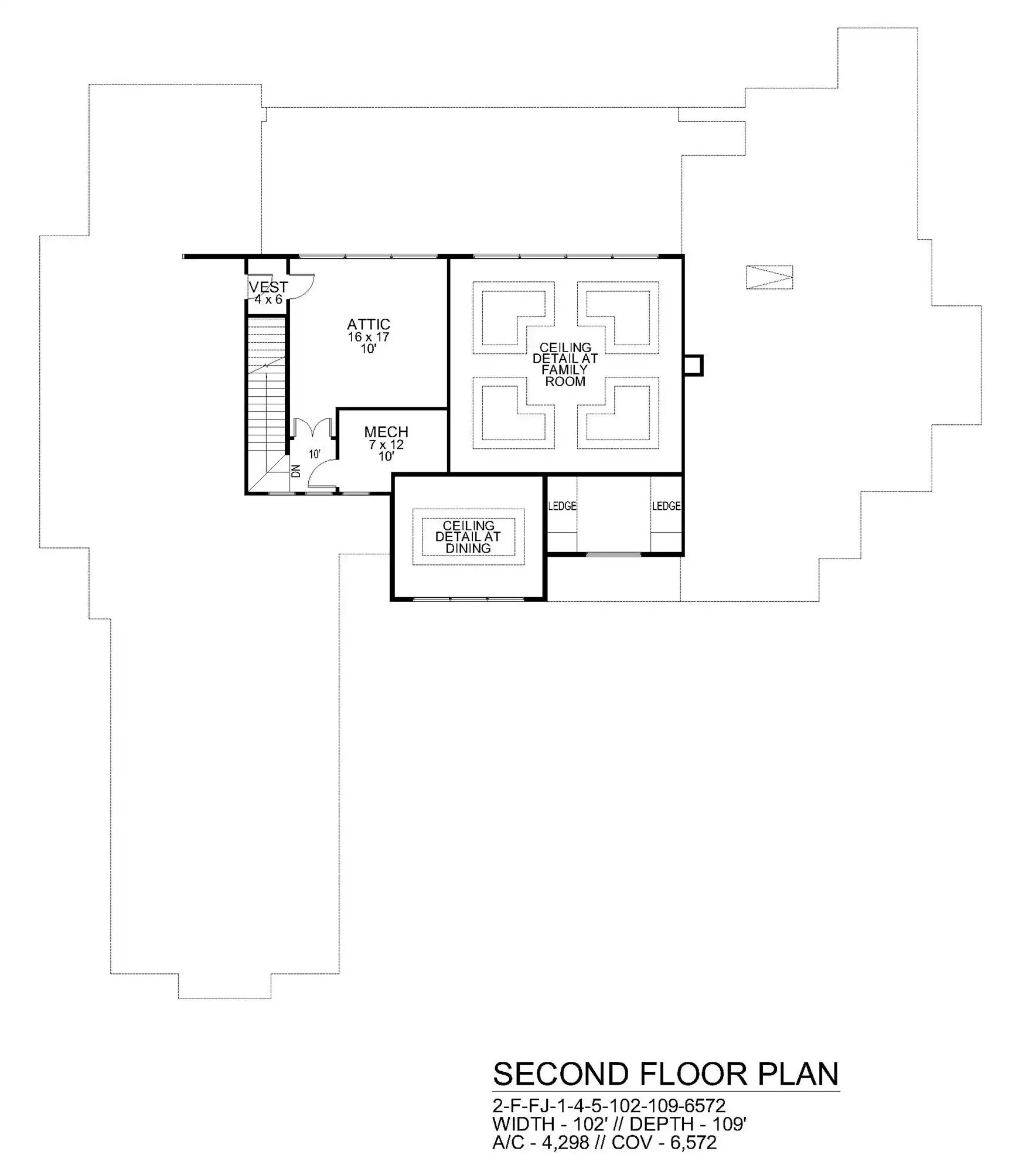

2nd Floor

1st Floor

2nd Floor

About This Plan

Welcome to an exquisite 4,298 square foot Mediterranean-style residence that seamlessly blends elegance with functionality. As you enter, the grandeur unfolds in a formal dining room boasting 20' ceilings and captivating views to the front. The butler’s pantry adds a touch of convenience, simplifying the art of serving guests. To the right of the foyer, a refined study provides a tranquil workspace for those who value the luxury of working from home. A discreetly hidden door behind shelving opens to reveal a safe room, combining practicality with security. The heart of the home resides in the 2-story family room, where a collapsible rear wall effortlessly connects indoor and outdoor living. Access to the outdoor lounge, featuring a two-sided fireplace and an eating patio with an outdoor kitchen, is granted from the game room with a wet bar, the powder room, the master suite, and the kitchen hall. This creates a perfect setting for entertaining or simply relishing the serene surroundings. The master suite offers a private retreat, granting direct access to the outdoor lounge for a relaxing escape. With four bedrooms and 4.5 baths, this home ensures abundant space and comfort for all occupants.Complete with a spacious three-car garage that includes dedicated space for a workbench, this residence perfectly caters to practical needs, seamlessly marrying functionality with elegance.

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Kitchen Island
Pantry
Walk-in Pantry

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Outdoor Kitchen
Outdoor Living Space
Rear Porch

Additional features

2 Story Volume
Dining Room
Family Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Courtyard/Motorcourt Entry
Side-entry

6,572 Ft

Total Structure

4,298 Ft

Total Heated

Bedrooms

4.5

Bathrooms

Garage

Stories

101' 8"

Width

108' 5"

Depth

29' 6"

Height

11' 0"

Main Floor Ceiling

22' 0"

Living/Great Room Ceiling

15' 6"

Foyer Ceiling

11' 0"

Primary Ceiling

2x4

Framing

Stick

Roof Framing

6:12

Primary Roof Pitch

3:12

Secondary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

965 Ft

Garage

90 Ft

Storage

69 Ft

Porch

770 Ft

Deck

380 Ft

Bonus Room

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,365

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,365

$1,545

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,545

$2,050

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,050

Need To Reverse Plan? (Optional)

$175

Readable Reverse

Reverse house plans with readable text and dimensions

$175

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
