House Plan 3574: Piketon-1824

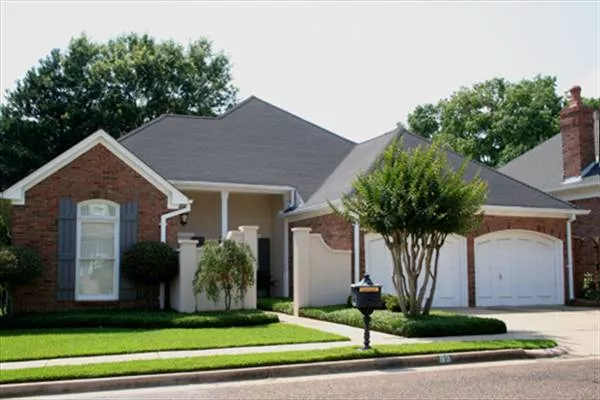

This clever design proves that privacy doesn't have to be compromised even in high-density urban neighborhoods. From within, views are oriented to a beautiful, lush entry courtyard and a covered rear porch. The exterior appearance is sheltered, but warm and welcoming.  Read more >

House Plan Details

Sq. Ft.
1,891
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
49' 0"
Depth
64' 0"
Select Plan Package
PDF Construction Set - 1
$850
Select Foundation Options
$0
Concrete Slab Foundation
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

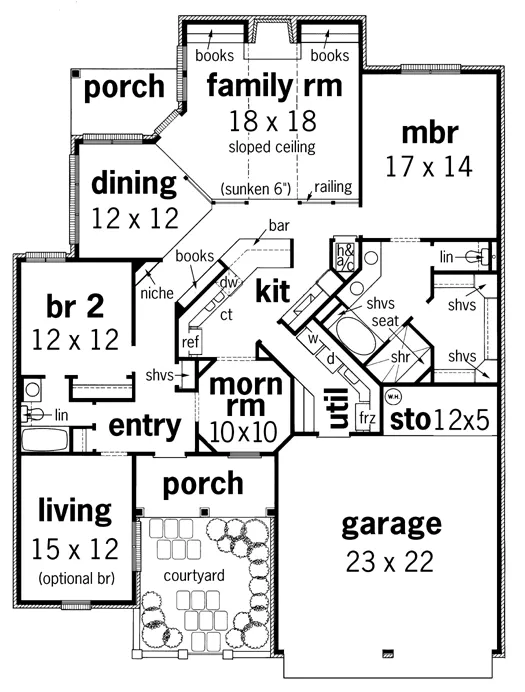

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,891
1st Floor SQ. FT.:
1,891
Bedrooms:
3
Bathrooms:
2.0
Garage:
2
Stories:
1
Main Ceiling Height:
8'
Upper Ceiling Height:
'
Framing:
2x6
Roof Framing:
Stick
Roof Pitch:
Primary: 9/12
Width:
49' 0"
Depth:
64' 0"
Height:
25' 0"
Exterior Styles:
Cottage
European
Southern
Traditional
Unheated Living Space:
Garage: 720
HOME FEATURES
Bedroom Features:
Master Bdrm Main Floor
Kitchen Features:
Additonal Features:
Family Room
Laundry 1st Fl
Garage Features:
Attached
Front-entry
Garage Location:
Front
Lot Features:
Suited for narrow lot
