Sq Ft
1,783 FT²
Bed
3
Bath
0
Stories
1
Garage
2
Depth
72'
Width
56'
On Sale
$935.00
$935.00
© copyright by designer
View All 4 Images | Photographs may reflect modified home
Sq Ft
1,783 FT²
From
$935.00
Bed
3
Bath
0
Stories
1
Garage
2
Depth
72'
Width
56'

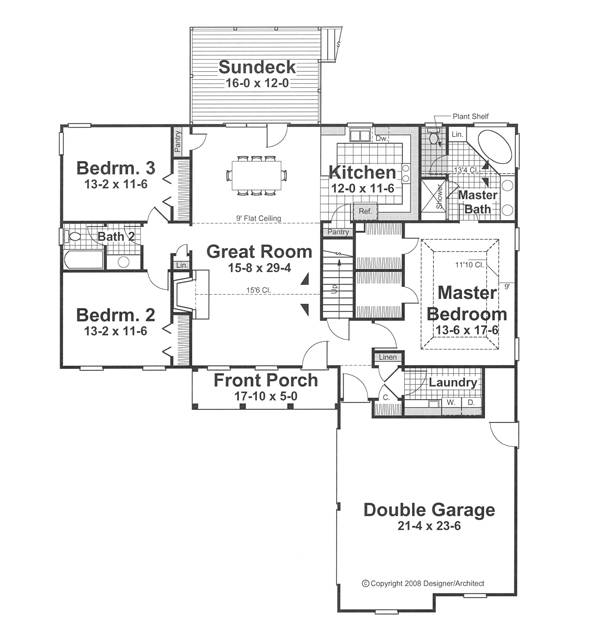

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

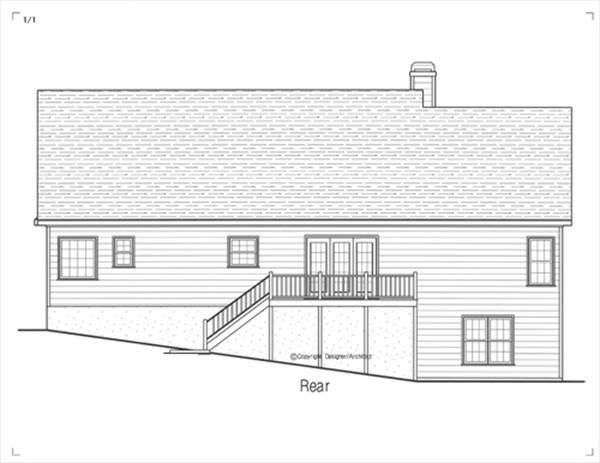

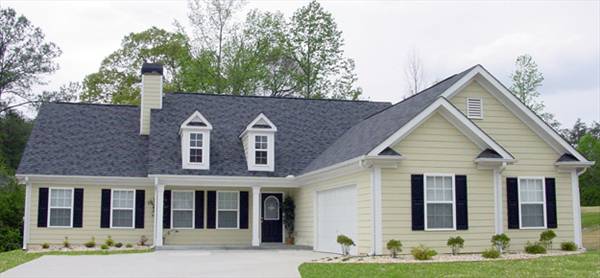

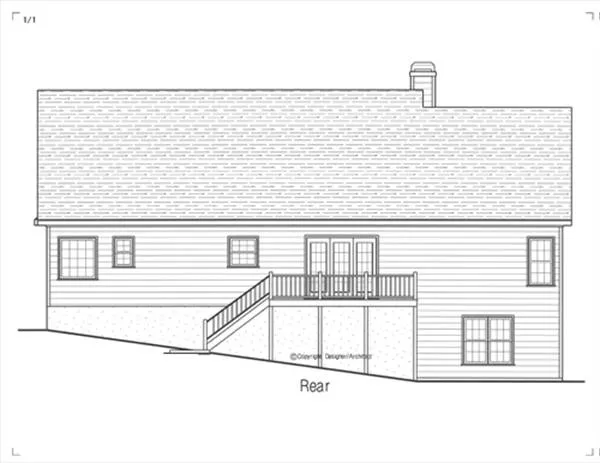

This courtyard design features a split bedroom floor plan allowing total privacy for the master suite. The great rooms vaulted ceiling centers on the fireplace creating separation from the dining area despite any breaks in the space. An atrium door at the back of the dining area floods the space with light while providing access to the spacious rear deck. The open kitchen adds to the spaciousness of this modest single level design. The master suite boasts his and hers closets as well as a bath with all the amenities.




FEATURES & DETAILS

Kitchen features
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Deck
Front Porch
Foundation Options

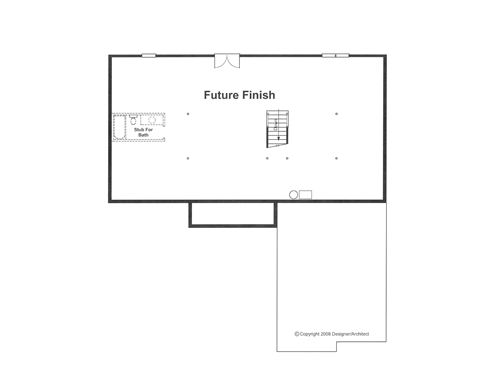

Basement
Walkout Basement
Lot Options
Suited for corner lot
Suited for sloping lot
Additional features
Fireplace
Great Room
Laundry 1st Fl
Open Floor Plan
Unfinished Space
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
Side-entry
1,783 Ft
2
Total Heated
3
Bedrooms
2
Garage
1
Stories
56' 0"
Width
72' 0"
Depth
22' 9"
Height
9' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
9/12
Primary Roof Pitch
12/12
Dormer Roof Pitch
Single
Dwelling Number

Unheated Living Space
548 Ft
2
Garage
90 Ft
2
Porch
193 Ft
2
Deck


Plan Package Options

 Select Plan Package
$725
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$725
$1,100
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,100
$1,200
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,200
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
