House Plan 5149: Orleans

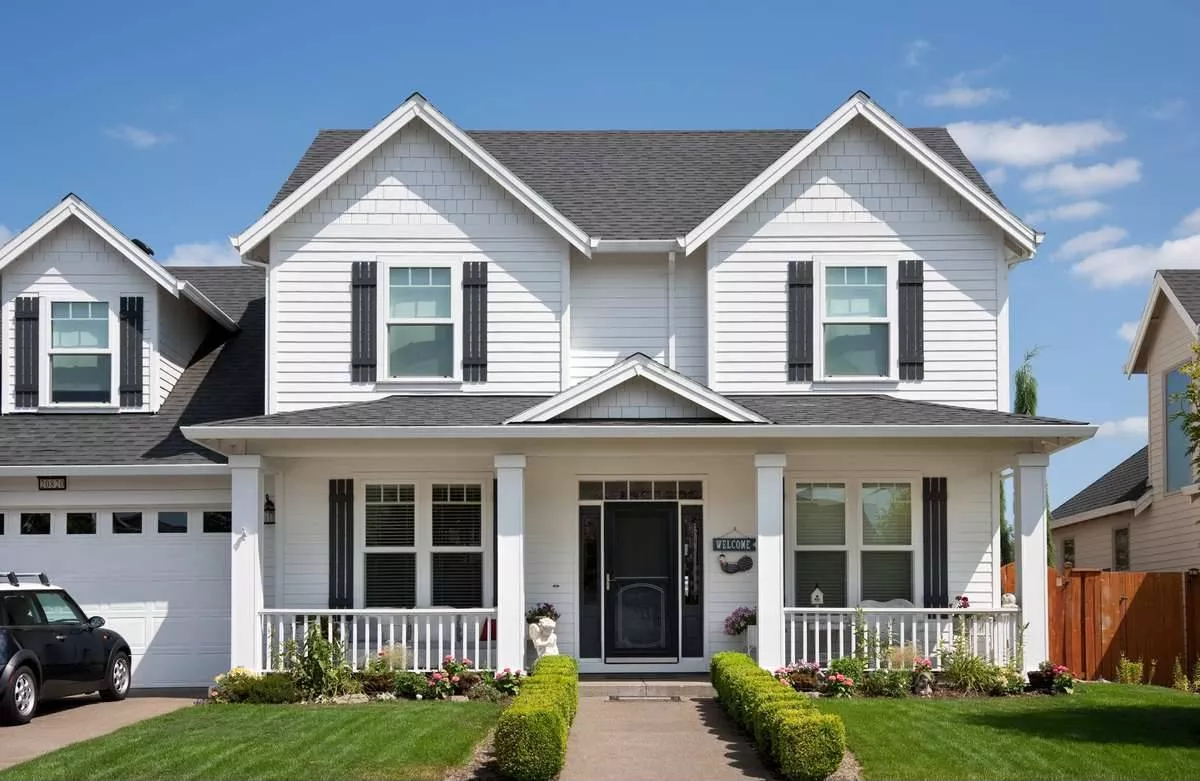

Wonderful symmetry comes into play on the exterior of this plan. Twin gables adorn the upper level, echoing a dormer on the three-car garage and a pediment over the entry. The main level is host to living spaces as well as the vaulted master suite.  Read more >

House Plan Details

Sq. Ft.
2,372
Beds
4
Baths
2.1
Stories
2
Garages
3
Width
60' 0"
Depth
49' 0"
Select Plan Package
PDF Files - Single Build
$1248
Select Foundation Options
$0
Crawlspace
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

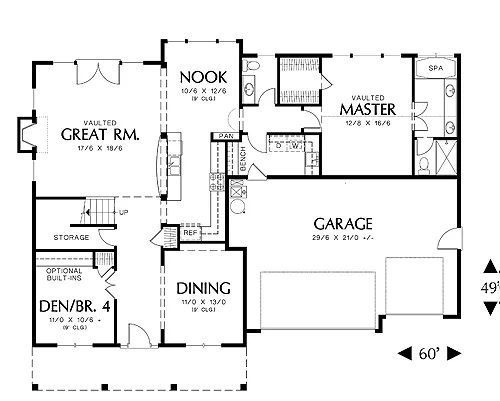

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,372
1st Floor SQ. FT.:
1,736
2nd Floor SQ. FT.:
636
Bonus:
418
Bedrooms:
4
Bathrooms:
2.1
Garage:
3
Stories:
2
Main Ceiling Height:
Varies'
Upper Ceiling Height:
8' 1"'
Framing:
2x6
Roof Framing:
Truss
Roof Pitch:
Primary: 8/12
Gable: 6/12
Porch: 4/12
Width:
60' 0"
Height:
28' 0"
Depth:
49' 0"
Exterior Styles:
Country
Traditional
Unheated Living Space:
Garage: 647
Porch: 180
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features:
Country Kitchen
Kitchen Island
Additonal Features:
Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Loft / Balcony
Mud Room
Open Floor Plan
Storage Space
Vaulted Ceilings
Garage Features:
Attached
Garage Location:
Front
Lot Features:
Suited for view lot
