Sq Ft
1,009 FT²

Beds
3

Baths
2

Stories
1

Garage
0

Depth
28'

Width
39' 9"

On Sale
$825.85
$995.00

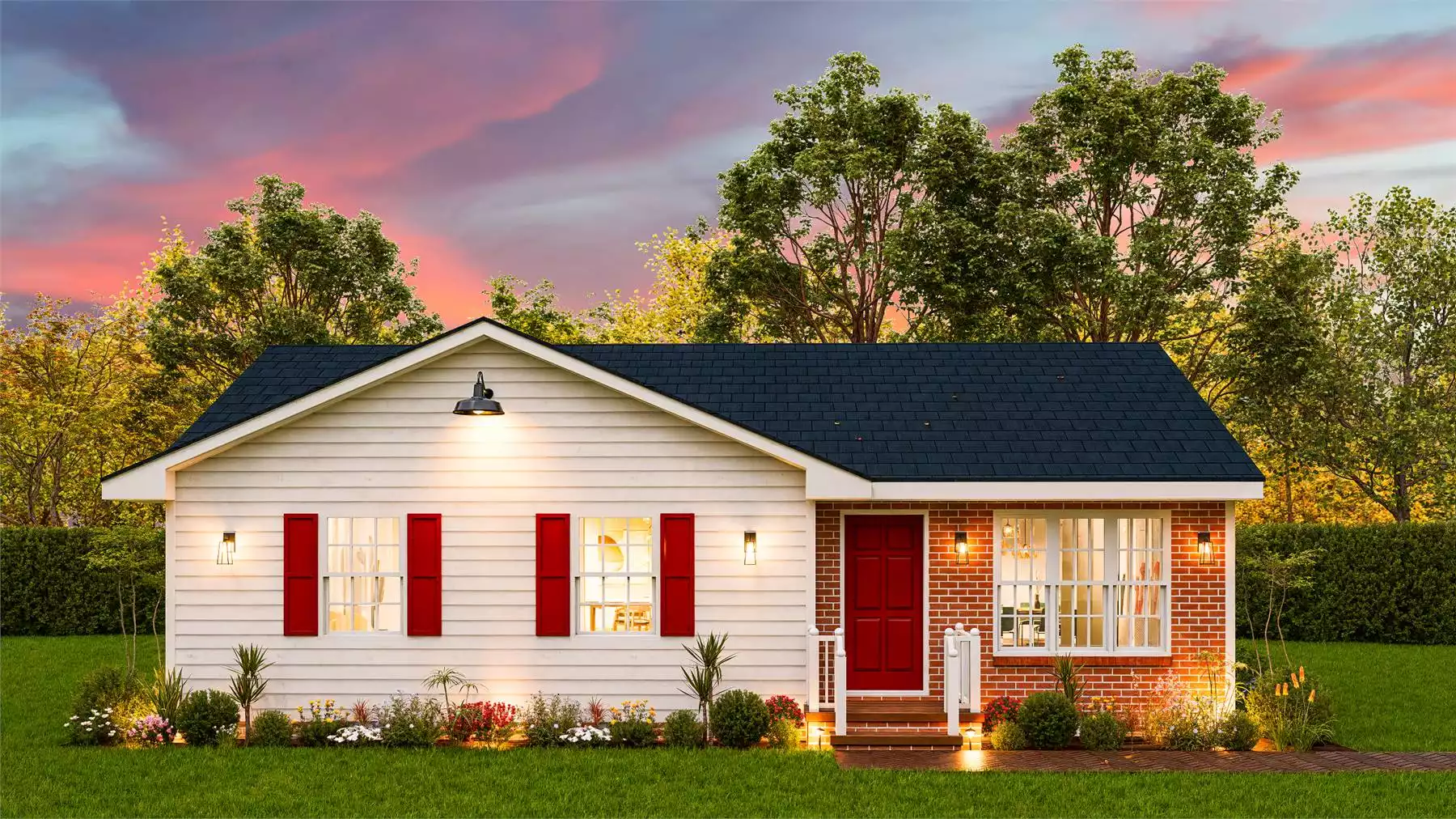

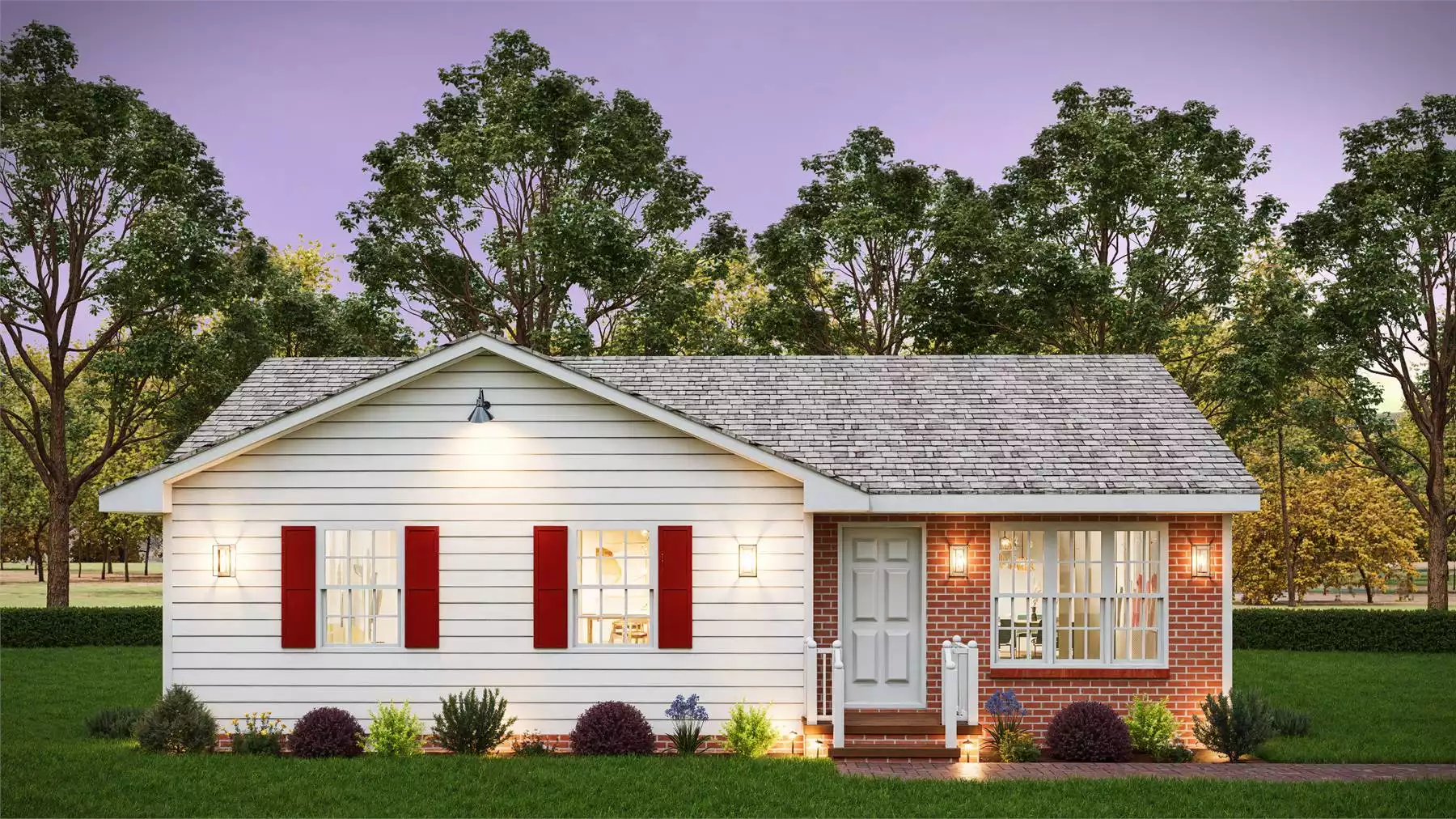

Front View

Frobt Left

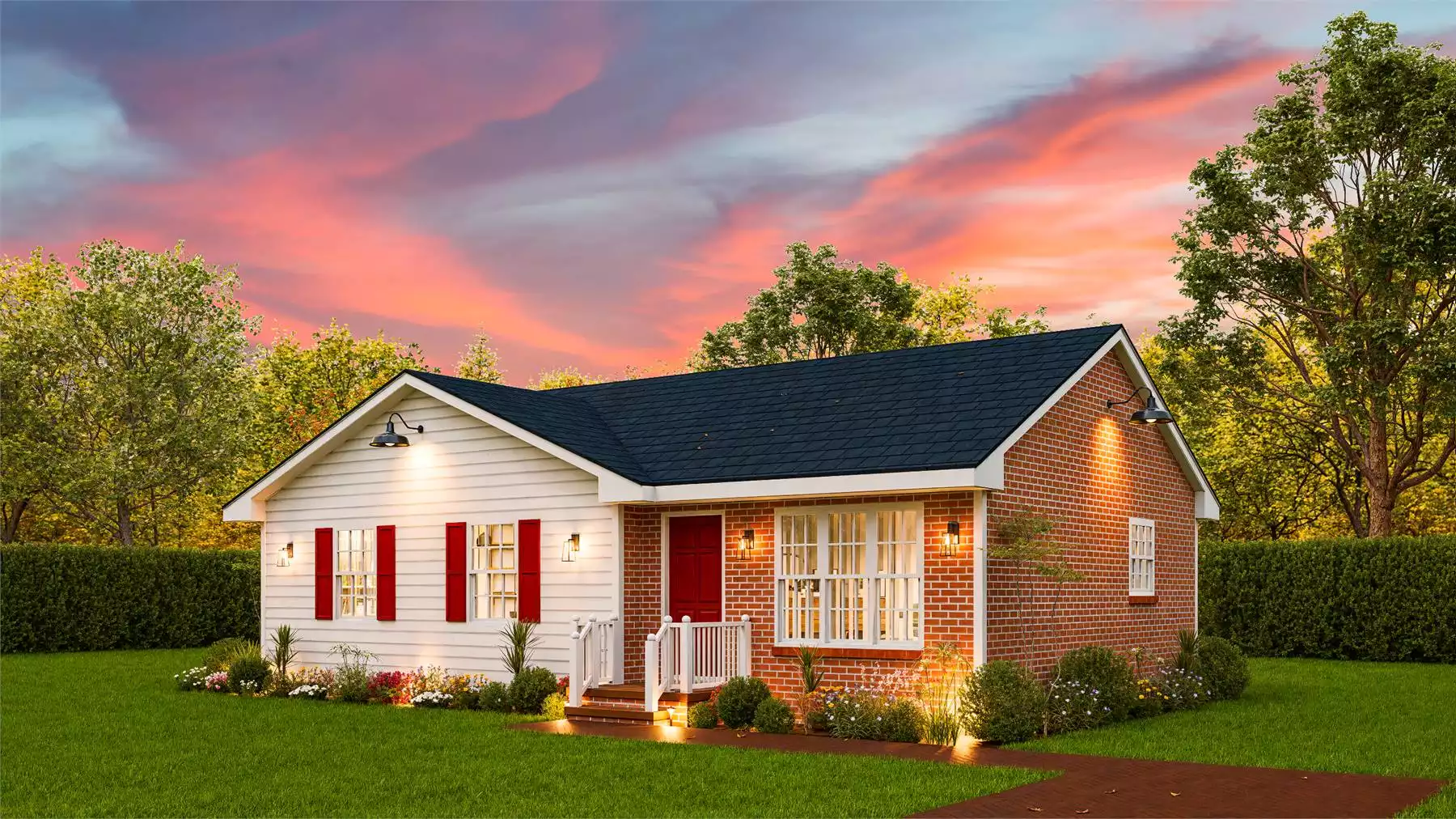

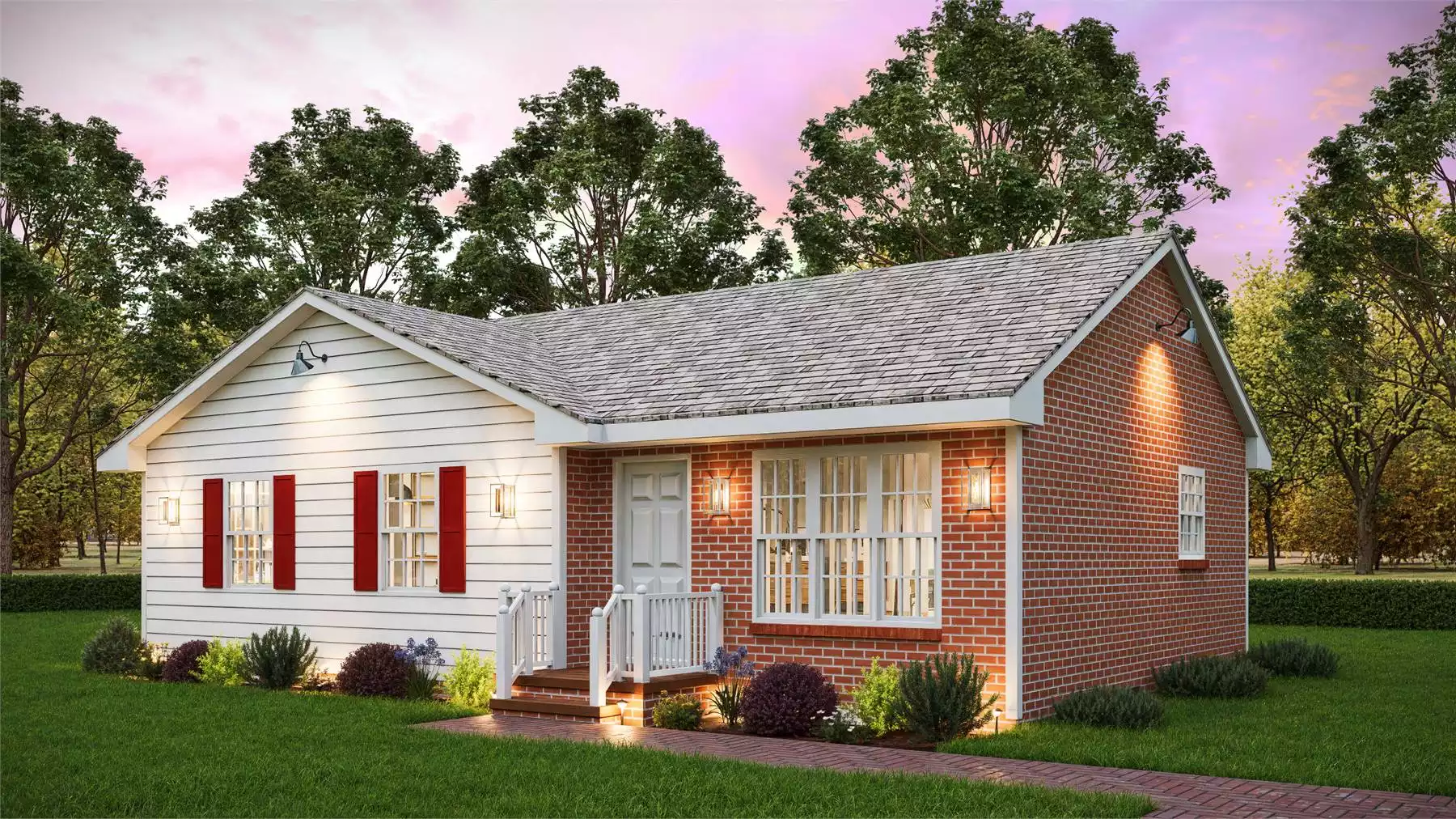

Front Left

Front Right

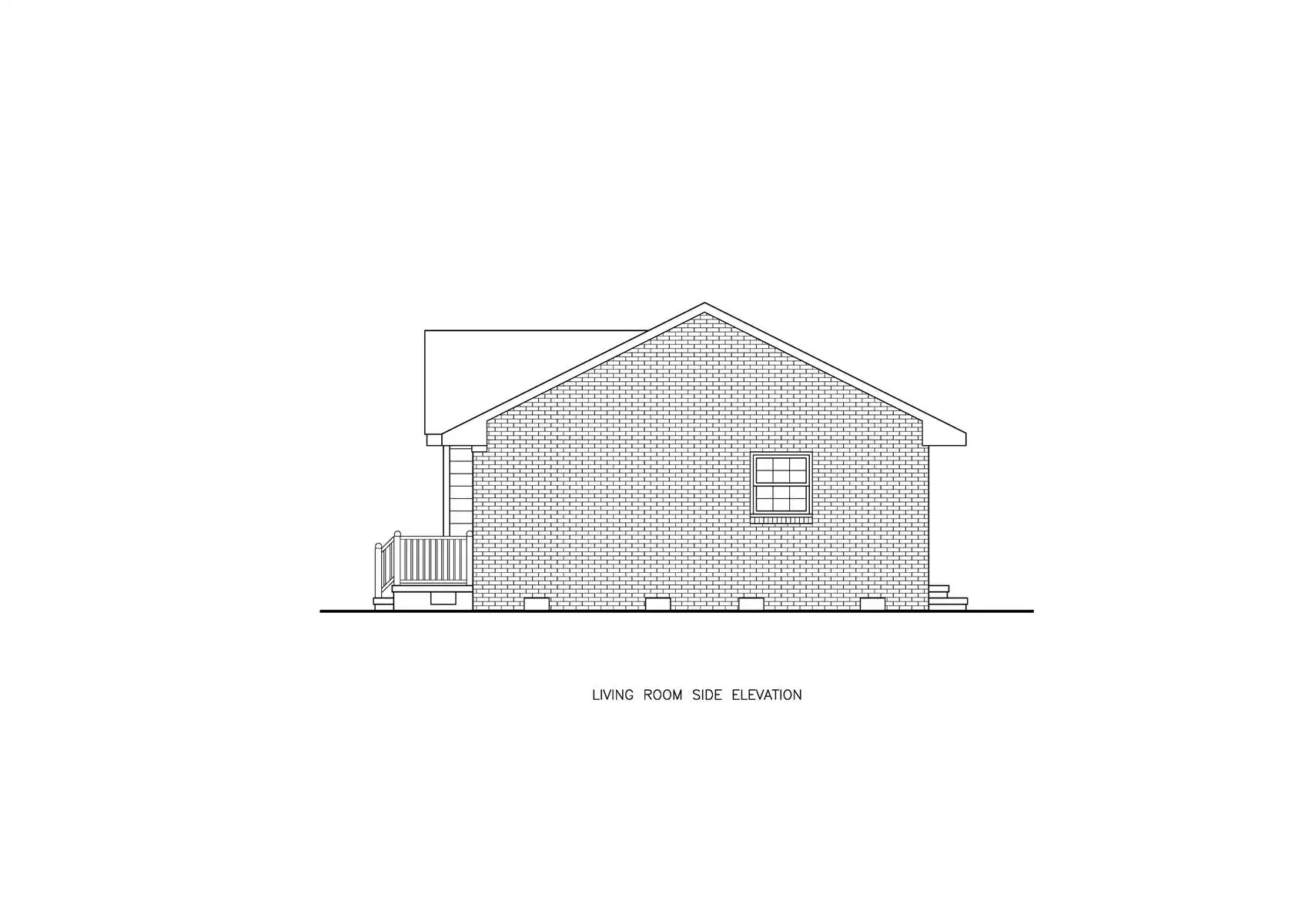

Side View

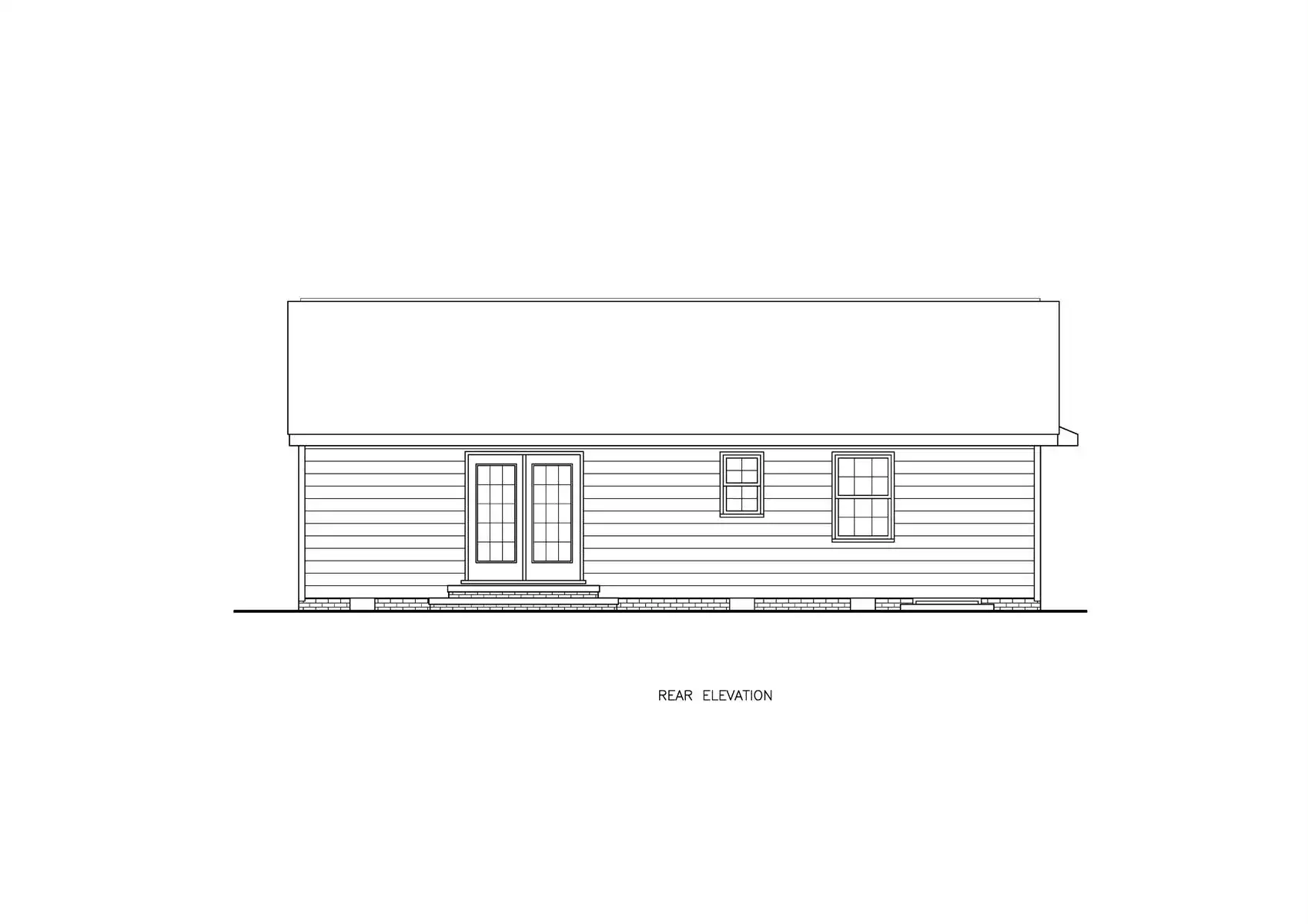

Rear View

1st Floor

View All 9 Images | Photographs may reflect modified home

Sq Ft

1,009 FT²

From

$825.85

Beds

Baths

Stories

Garage

Depth

28'

Width

39' 9"

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

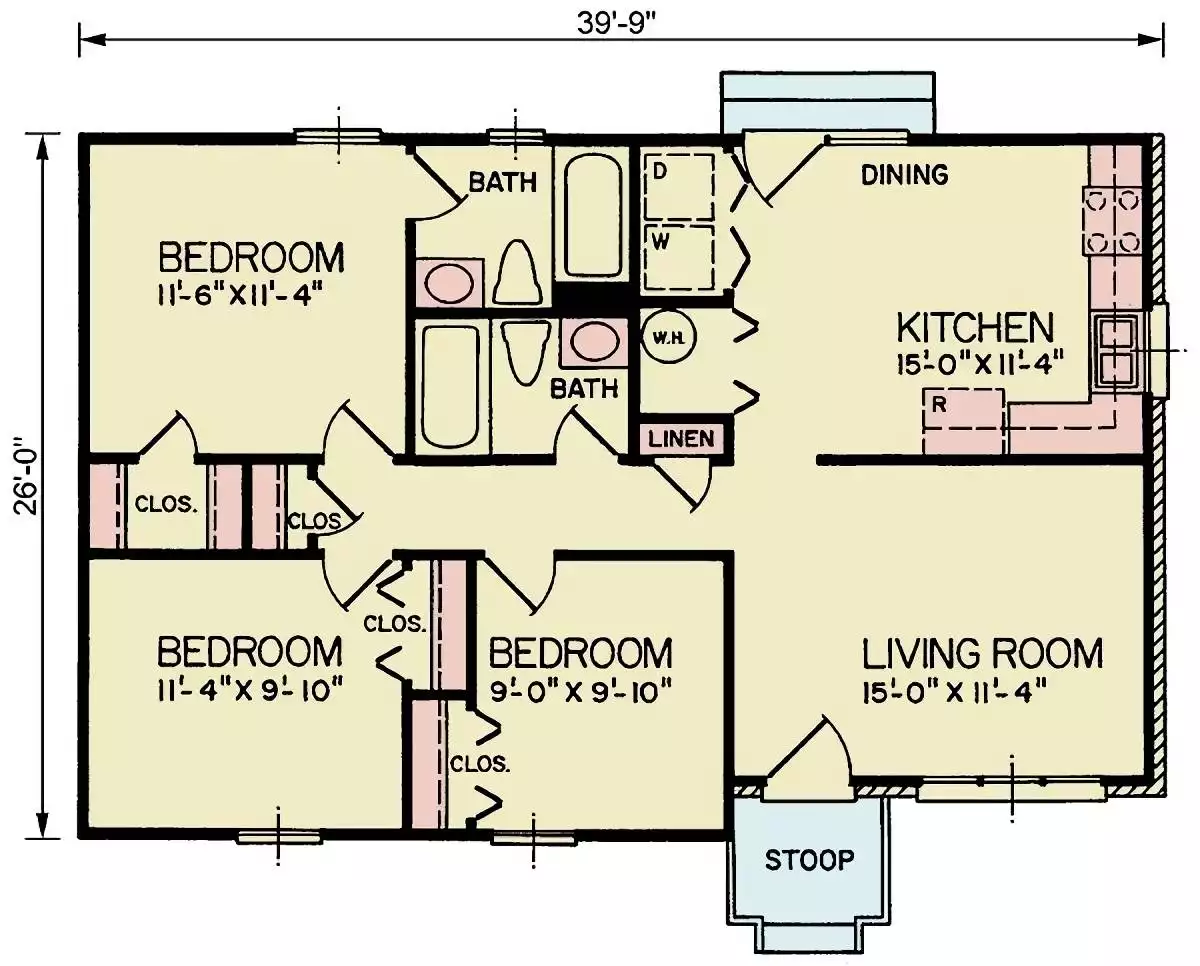

1st Floor

About This Plan

Welcome to Southall, a charming and efficient one-story home offering 1,009 square feet of thoughtfully designed living space. This 3-bedroom, 2-bathroom layout is perfect for first-time homeowners, those looking to downsize, or empty nesters seeking comfort without excess. The L-shaped design separates the cozy living room from the kitchen, creating distinct, functional spaces, while a nearby utility area adds everyday convenience. The primary bedroom includes a private ensuite, and the two additional bedrooms share a full bathroom—making this an ideal and affordable solution for modern living.

See All Plan Options

FEATURES & DETAILS

Bedroom features

Family Style
Primary Bdrm Main Floor

Exterior features

Covered Front Porch

Lot Options

Suited for corner lot
Suited for narrow lot

Additional features

Great Room
Laundry 1st Fl

1,032 Ft

Total Structure

1,009 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

39' 9"

Width

28' 0"

Depth

15' 2"

Height

8' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

6/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

23 Ft

Front Porch

Exterior Styles

Bungalow

Cottage

Ranch

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $826

PDF Single Build

~~$995~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $826

Sale: $1,033

5 Printed Sets

~~$1,245~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,033

Sale: $1,116

5 Printed Sets + PDF

~~$1,345~~

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,116

Sale: $1,531

CAD Single Build

~~$1,845~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,531

Sale: $2,195

CAD Unlimited Build

~~$2,645~~

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

Sale: $2,195

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
