House Plan 4580: Oakmont

The kitchen and great room in this home design flow together allowing the perfect setting for entertaining and family time. A large curved snack bar divides the two rooms which share a cathedral ceiling. A separate living room is beautifully accented by columns.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,475
Beds
3
Baths
2.1
Stories
1
Garages
2
Width
70' 0"
Depth
78' 11"
1st Floor
2,475
Garage
674
Porch
412
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Five Sets - Minimum Const
$1215
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $1215
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

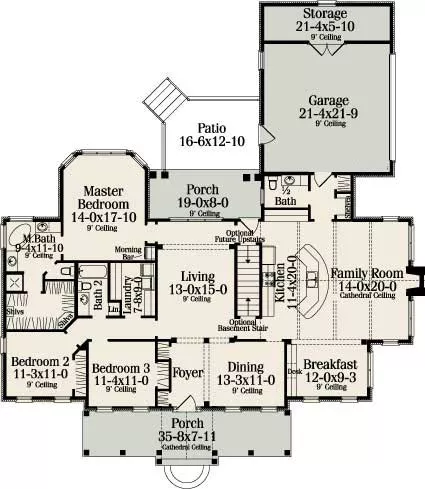

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 2
Stories: 1
Exterior Style
Cottage
Southern
Traditional
Dimensions
Width: 70' 0"
Height: 29' 0"
Depth: 78' 11"
Heated Living Space
Total Sq. Ft: 2,475
1st Floor: 2,475
Unheated Living Space
Garage: 674
Porch: 412
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Additional Room Features
Dining Room
Family Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings
Garage Location
Rear
Garage Features
Attached
Side-entry
Lot Features
Suited for corner lot
Suited for view lot
Roof Pitch
Primary: 10/12
