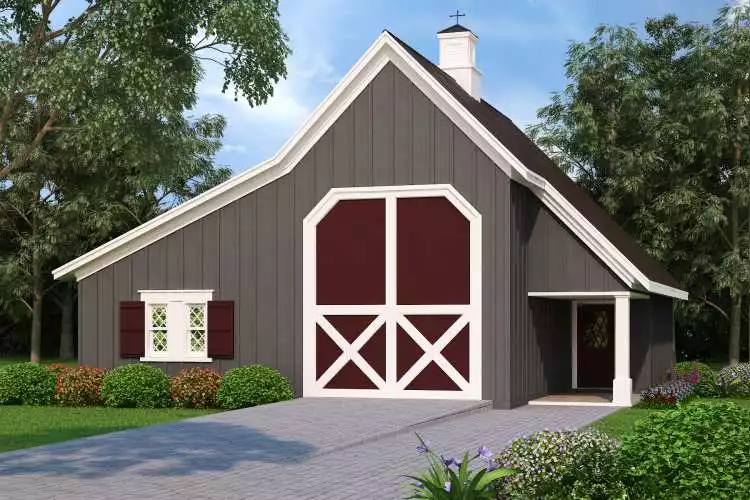

Front Rendering

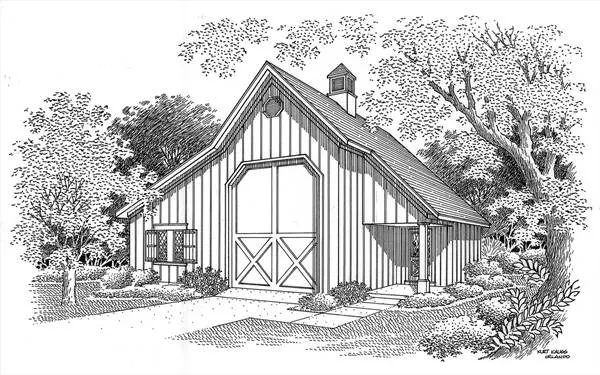

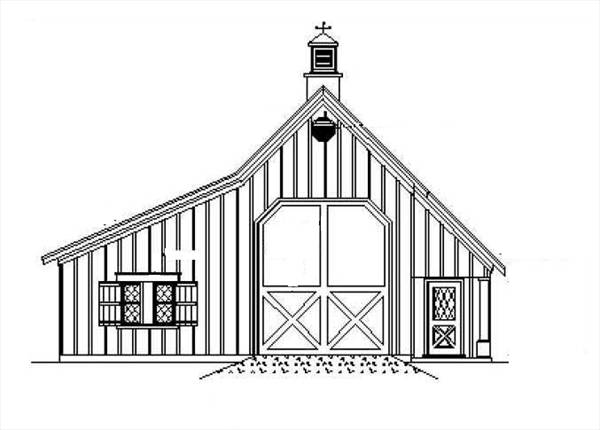

Front Exterior

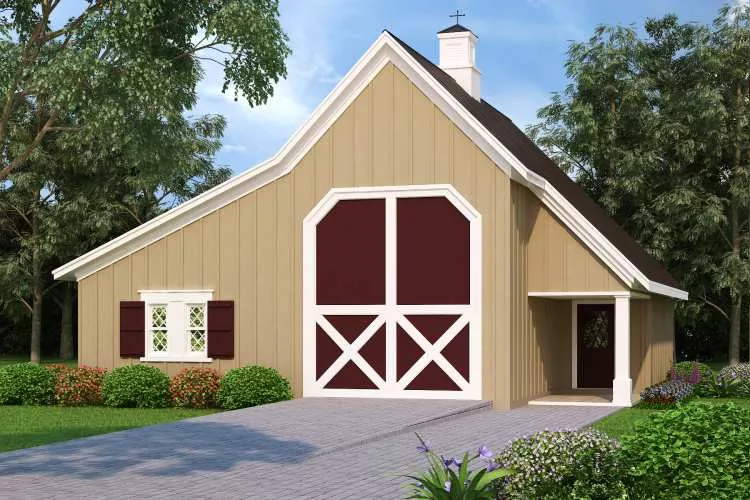

Front Rendering

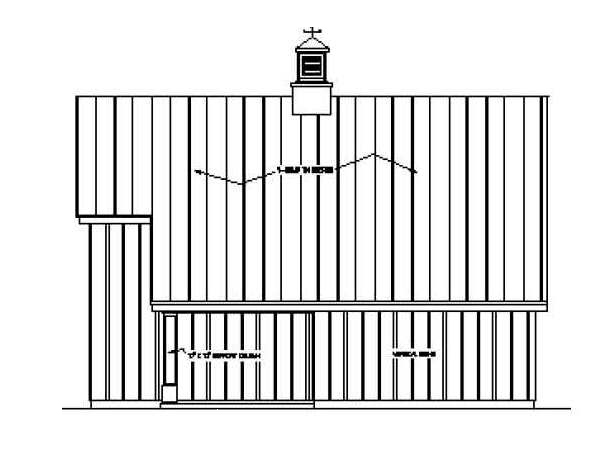

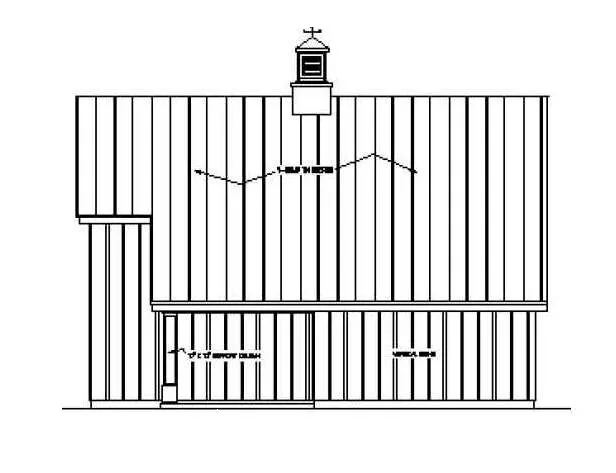

Right Side Elevation

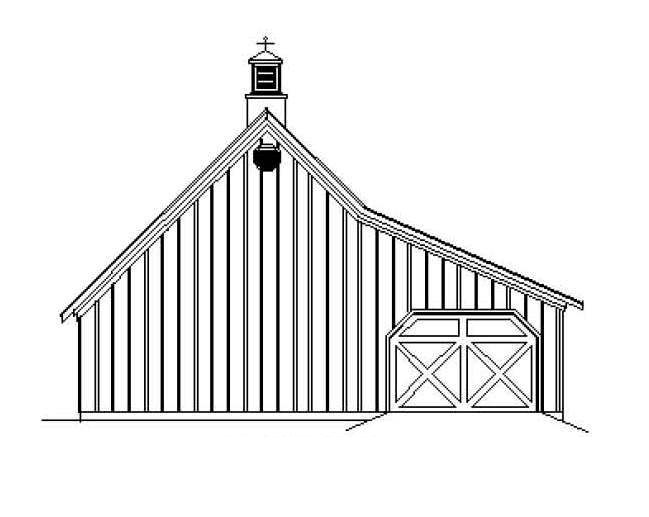

Rear Exterior

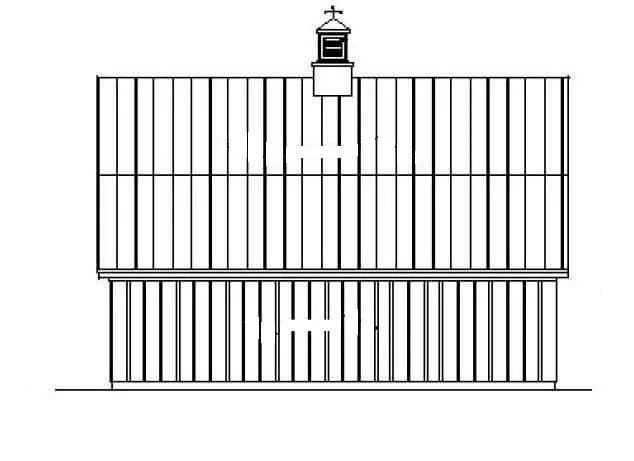

Left side elevation
Front Rendering

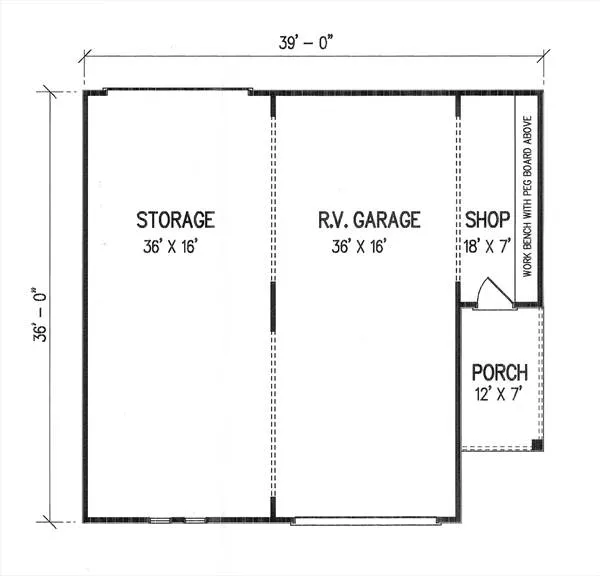

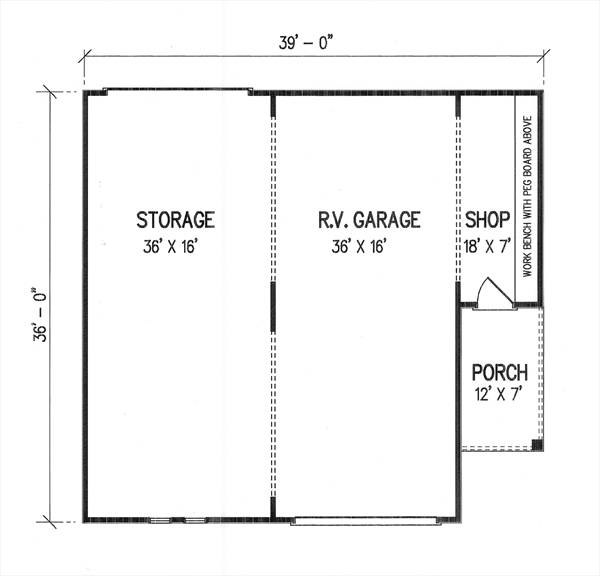

Floor Plan
House Plan 2993: Oakley - 107
Designed with the exterior appearance of a charming country barn, this toy barn will hold your RV and all of your other toys too. The RV bay has 16' high ceilings and is accessed through a 12' wide and 14' high overhead garage door.
Read more >
House Plan Details
Sq. Ft.
1,362
Beds
0
Baths
0.0
Stories
1
Garages
1
Width
39' 0"
Depth
36' 0"
PLAN IMAGES
Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,362
Bedrooms:
0
Bathrooms:
0.0
Garage:
1
Stories:
1
Main Ceiling Height:
9 & 16'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 12/12
Secondary: 5:12
Secondary: 5:12
Width:
39' 0"
Depth:
36' 0"
Height:
24' 0"
Exterior Styles:
Cottage
Country
Farm House
Country
Farm House
Unheated Living Space:
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additional Features:
Garage Features:
Attached
Front-entry
Front-entry
Garage Location:
Front
Lot Features:
