Oak Harbor 3 Bedroom Traditional Style House, Plan 7846


Sq Ft
1,503 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
42'

Width
64' 8"
From
$1,485.00
© copyright by designer

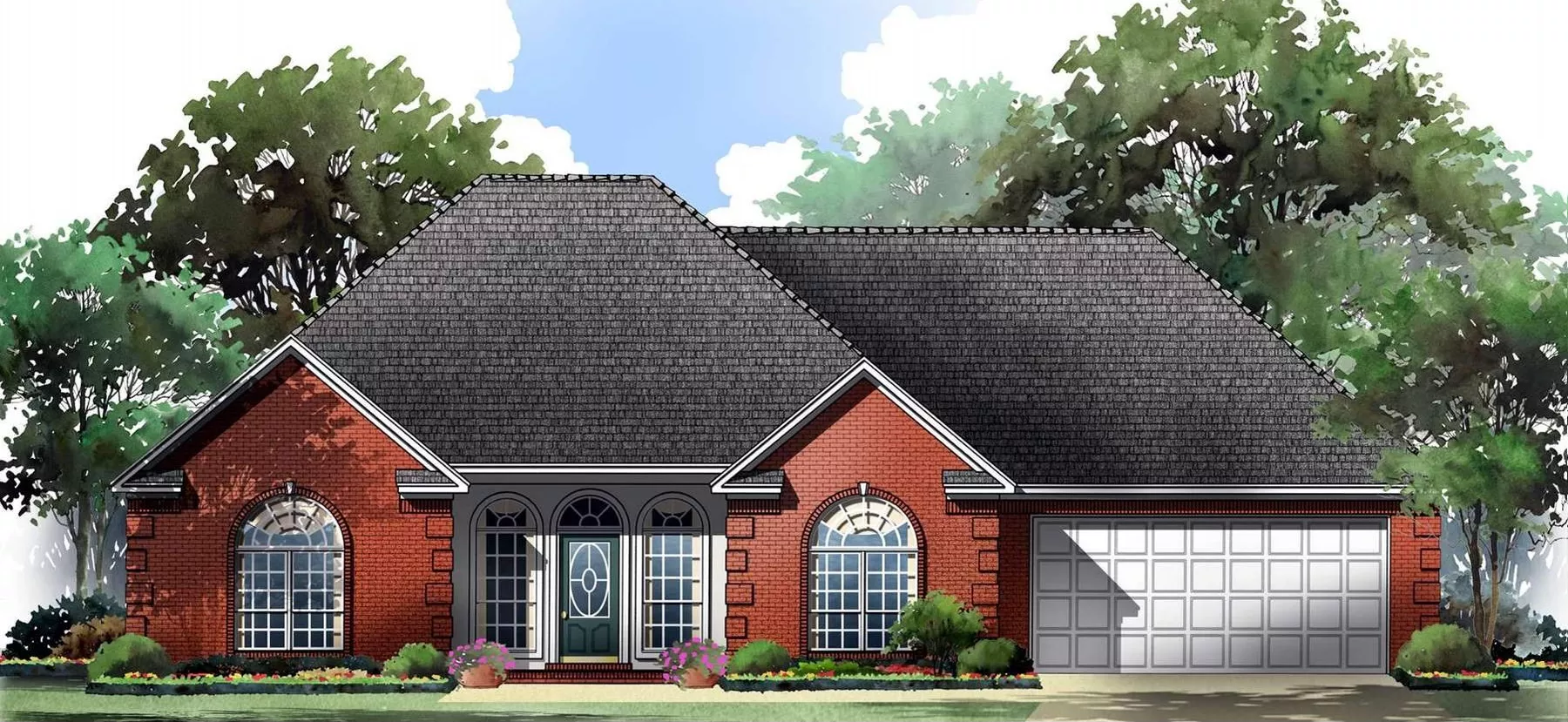

View All 2 Images | Photographs may reflect modified home
Sq Ft
1,503 FT²
From
$1,485.00
Beds
3
Baths
2
Stories
1
Garage
2
Depth
42'
Width
64' 8"

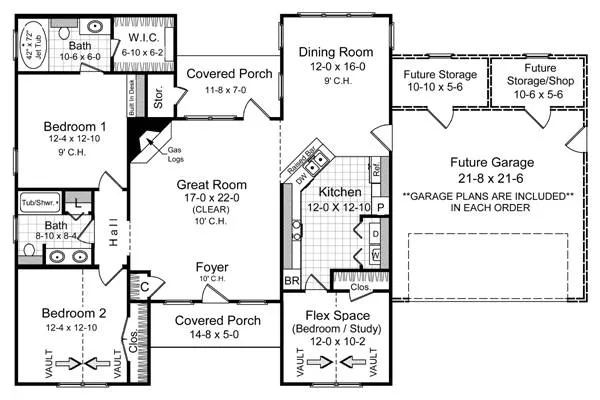

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan




FEATURES & DETAILS

Kitchen features
Peninsula / Eating Bar
Bedroom features
His and Hers Primary Closets
Primary Bdrm Main Floor
Nursery Room
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Front Porch
Screened Porch/Sunroom
Foundation Options
Crawlspace
Slab
Additional features
Dining Room
Fireplace
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Garage Location
Front
1,503 Ft
2
Total Heated
3
Bedrooms
2
Bathrooms
2
Garage
1
Stories
64' 8"
Width
42' 0"
Depth
24' 5"
Height
9' 0"
Main Floor Ceiling
2x4
Framing
Stick
Roof Framing
10 in 12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
612 Ft
2
Garage
16 Ft
2
Storage
155 Ft
2
Porch


Plan Package Options

 Select Plan Package
$1,315
Study Set - Printed
One printed set of house plans stamped NOT FOR CONSTRUCTION". This set is intended for review purposes and are mailed to you. To build from the plans, you need to upgrade to a licensed set.
$1,315
$1,485
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,485
$1,595
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,595
$1,680
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,680
$2,075
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,075
 Need To Reverse Plan? (Optional)
$150
Readable Reverse

Reverse house plans with readable text and dimensions

$150
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
