Sq Ft
1,898 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
65'

Width
58'

From
$1,000.00

Front Rendering

Right Side Elevation

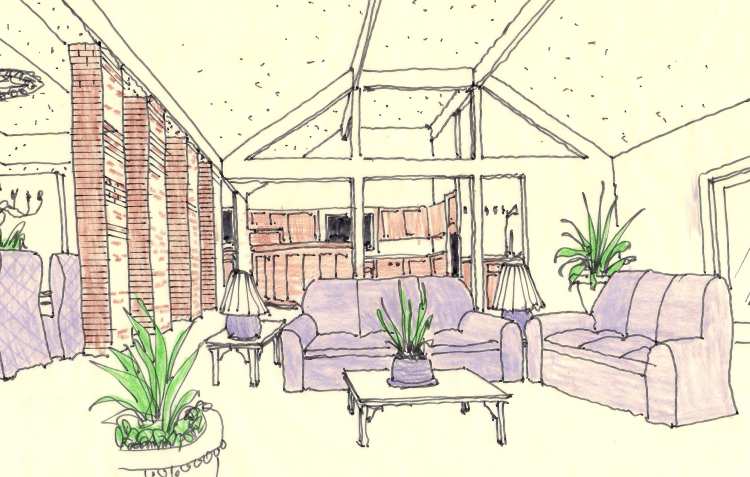

Living room and looking toward the kitchen

living room looking toward the fireplace

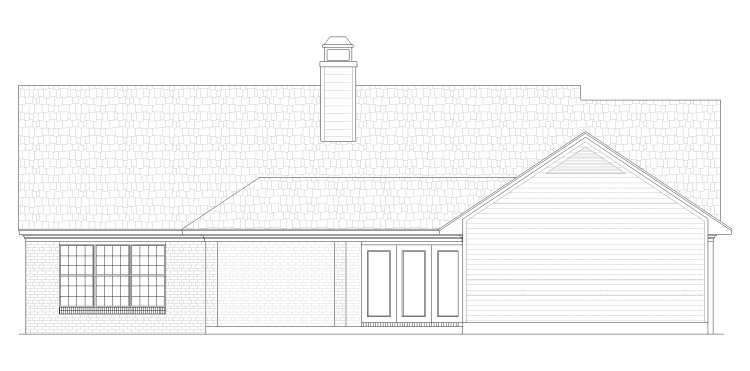

Rear Elevation

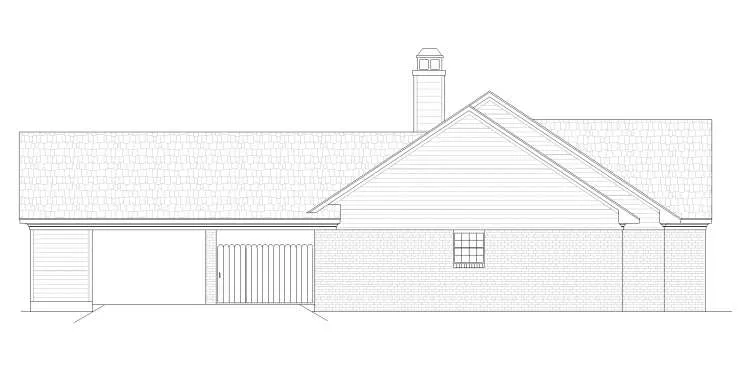

Left side elevation

View All 7 Images | Photographs may reflect modified home

Sq Ft

1,898 FT²

From

$1,000.00

Beds

Baths

Stories

Garage

Depth

65'

Width

58'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

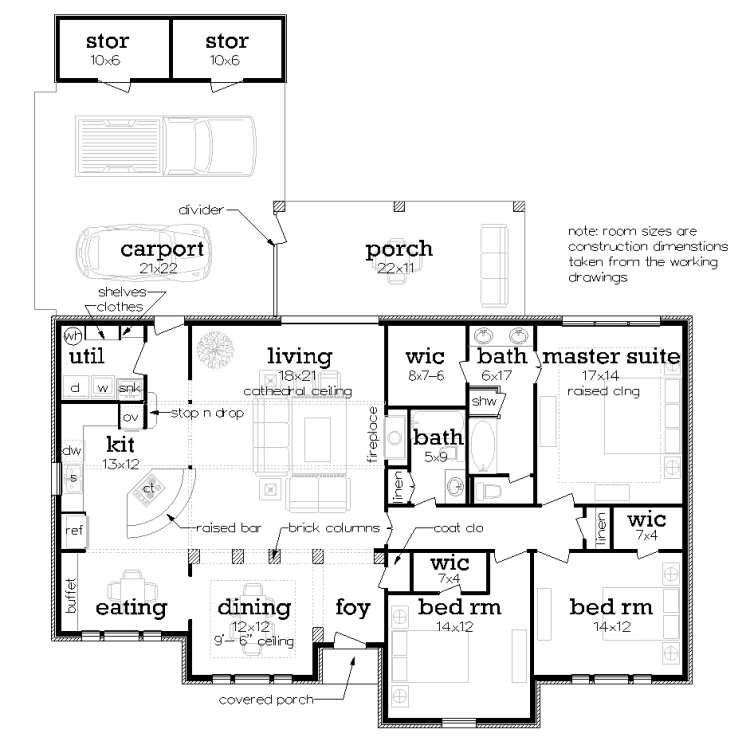

Floor Plan

About This Plan

Designed to be super energy efficient, this 3 bedroom low maintenance 1,898 s.f. ranch house plan has passive solar possibilities if the front is south facing. Due to the abundant windows on the front of the house, the front rooms could serve as solar collectors with the proper flooring. The exterior walls are 2x6 and the 12” R38 ceiling insulation combine to make this an easy home to heat and cool. The Living room features cathedral beamed ceilings, a wood burning fireplace and easy access to the large covered rear porch via a expansive sliding glass door. The cathedral ceiling extends into the kitchen area and the rear entry which features a stop and drop area for coats and keys. The kitchen is fully appointed and features a quarter round raised bar. The open design of all the main rooms insures a bright and airy atmosphere and great for entertaining. The adjacent eating area has a wall of built-ins making it easy to serve a crowd for festive occasions. The formal dining has a raised box ceiling and it can team with the eating area when serving large crowds. The master suite features a 9’-6” raised box ceiling and a great bath which has a tub, separate shower, private toilet, twin vanities and a huge walk-in closet. Both of the secondary bedrooms are large and roomy and also feature walk-in closets.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island
Nook / Breakfast Area

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Slab

Lot Options

Suited for corner lot

Additional features

Dining Room
Fireplace
Foyer
Laundry 1st Fl
Mud Room
Open Floor Plan
Storage Space
Vaulted Ceilings

Garage Location

Rear

Garage Options

Attached
Carport

2,752 Ft

Total Structure

1,898 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

58' 0"

Width

65' 0"

Depth

21' 0"

Height

8' 0"

Main Floor Ceiling

2x6

Framing

Stick

Roof Framing

8:12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

462 Ft

Garage

126 Ft

Storage

266 Ft

Porch

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$800

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$800

$1,000

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,000

$1,085

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,085

$1,130

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,130

$1,240

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,240

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,240

$1,900

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,900

Need To Reverse Plan? (Optional)

$125

Readable Reverse

Reverse house plans with readable text and dimensions

$125

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
