Sq Ft
5,560 FT²

Beds
4

Baths
3.5

Stories
3

Garage
3

Depth
63'

Width
72'

From
$2,850.00

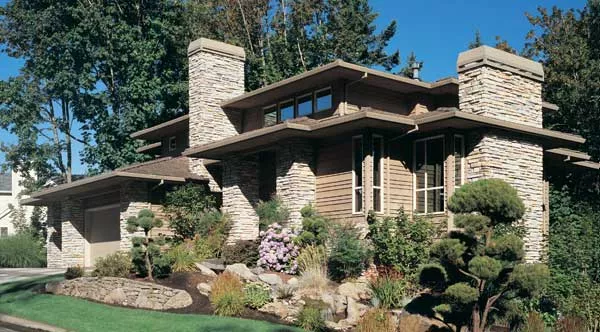

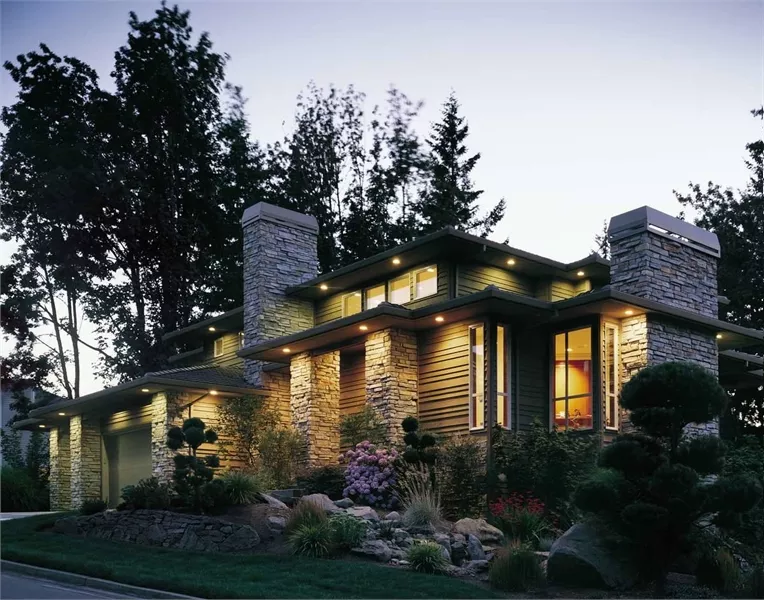

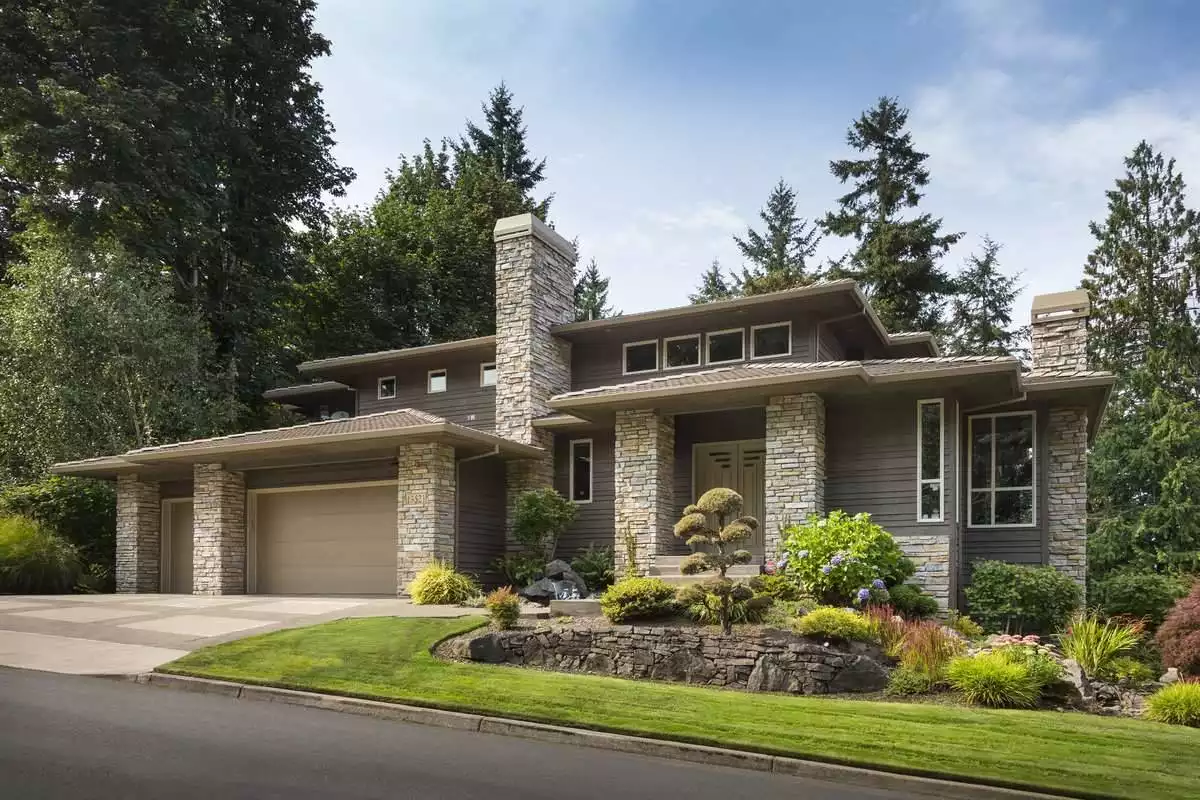

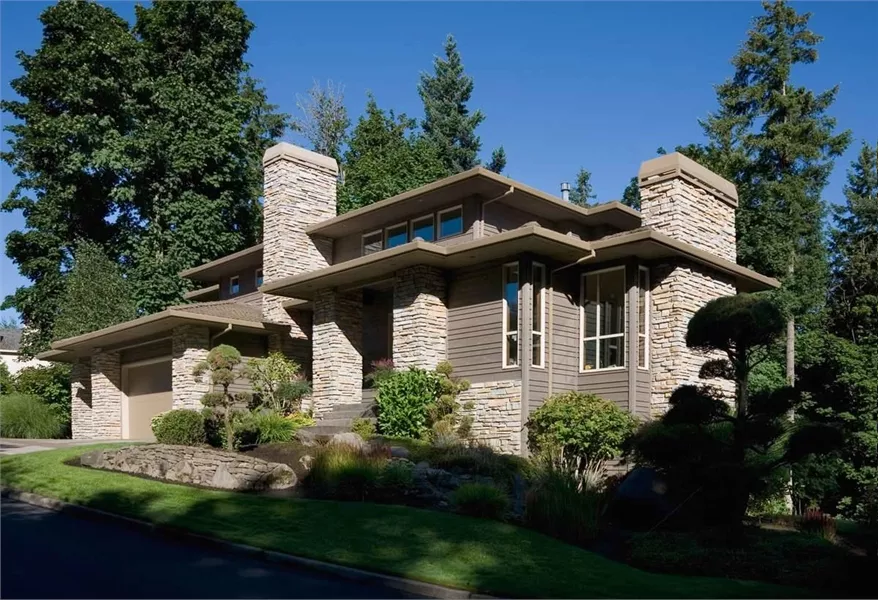

Front Exterior

Foyer

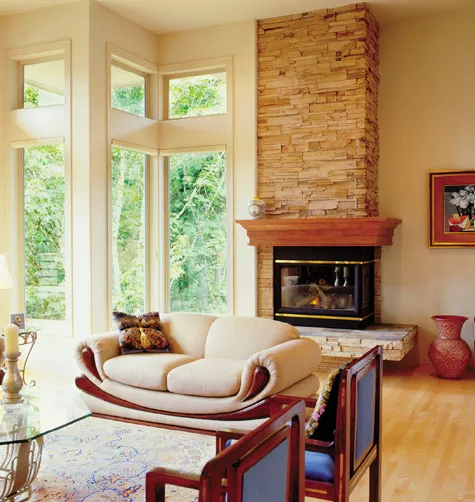

Living Room

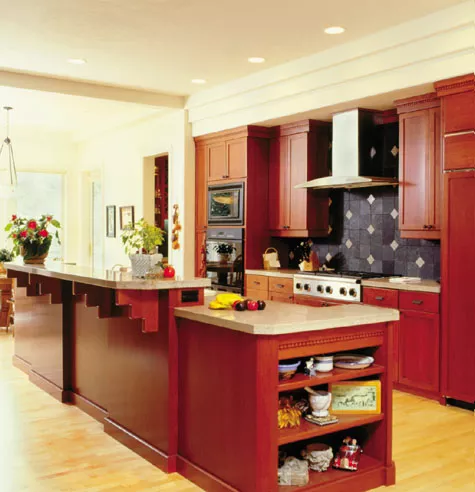

Kitchen

Master Bath

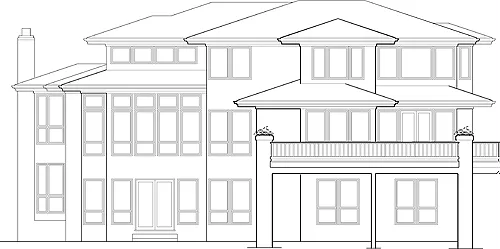

Rear Elevation

View All 10 Images | Photographs may reflect modified home

Sq Ft

5,560 FT²

From

$2,850.00

Beds

Baths

3.5

Stories

Garage

Depth

63'

Width

72'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

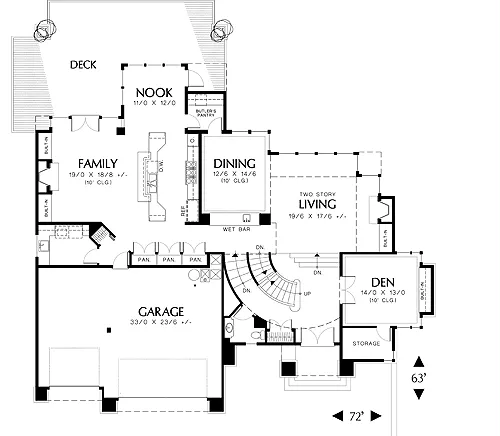

First Floor Plan

Second Floor Plan

Lower Level

First Floor Plan

Second Floor Plan

Lower Level

About This Plan

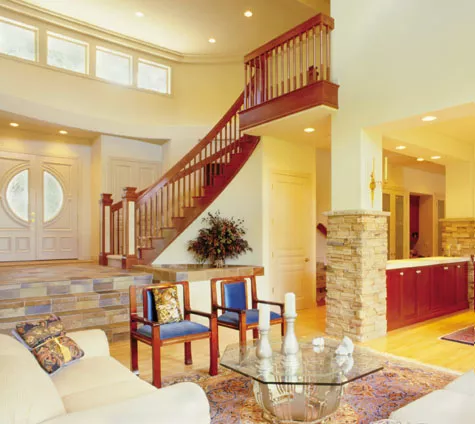

First impressions are important, and "Wow!" will be the response as guests enter the front doors of this spectacular luxury home. A grand, curving staircase dominates the two-story-high entry hall. To the right, French doors open a secluded den that includes built-in shelving and a huge storage area. Straight ahead and a few steps down, the two-story living room is furnished with a fireplace, built-in shelves, and a panoramic view through walls of windows. The dining room boasts a wet bar and a butler's pantry, making the entire area perfect for gala entertaining. A long island delineates the kitchen from the family room. The island houses a sink, dishwasher, and snack counter. Three pantries ensure plentiful storage.

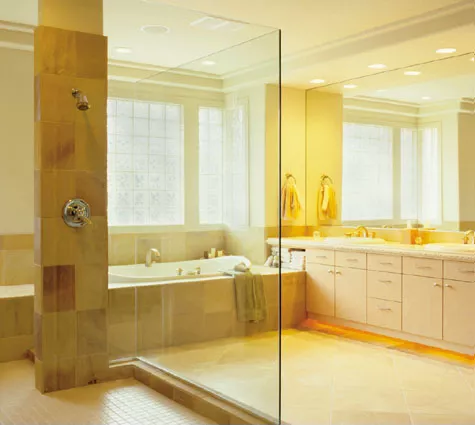

Begin or end the day in the lavish second-floor master suite. There's room for both a sleeping and sitting area in the bedroom. The sumptuous bath harbors a whirlpool tub in a windowed alcove, a curvaceous shower stall, and a privacy enclosure for the toilet and bidet. A secondary bedroom suite is also on this level.

On the lower level, two bedrooms share a compartmentalized bath. A huge sunken games room is furnished with a fireplace, walls of windows, and French doors to the backyard. This level also houses a very special treat - a wine cellar and a walk-in cold room!

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Kitchen Island
Nook / Breakfast Area

Bedroom features

2 Primary Suites
Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Walk-in Closet

Exterior features

Deck
Front Porch

Foundation Options

Crawlspace
Daylight Basement
Walkout Basement

Lot Options

Suited for corner lot
Suited for sloping lot
Suited for view lot

Additional features

2 Story Volume
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Rec Room
Storage Space
Vaulted Ceilings
Wine Cellar

Garage Location

Front

Garage Options

Attached
Front-entry

5,560 Ft

Total Heated

2,274 Ft

1st Floor

1,380 Ft

2nd Floor

1,906 Ft

Lower Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

72' 0"

Width

63' 0"

Depth

26' 0"

Height

Varies' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

4/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

791 Ft

Garage

143 Ft

Storage

640 Ft

Deck

Exterior Styles

Contemporary

Modern

Collections

Luxury

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$2,850

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,850

$3,050

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,050

$3,100

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$3,100

$5,700

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$5,700

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
