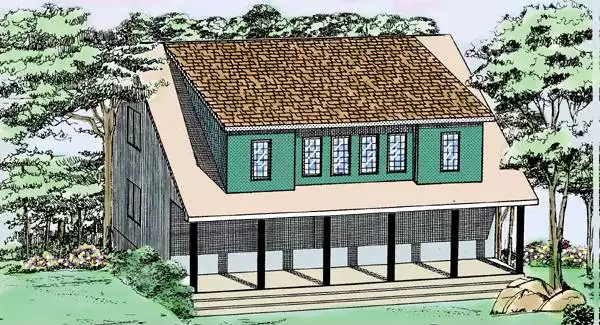

House Plan 5177: New Master Suite (BRB17)

Approximately 424 square feet addition. Your subject is an old cape, bungalow, or shingle style 1 1/2 story home and the bedrooms are tight? Look up at the roof, the dormers are likely very small and there is probably much space to be found by pushing out one or more dormers.  Read more >

House Plan Details

Sq. Ft.
432
Beds
0
Baths
0.0
Stories
2
Garages
0
Width
27' 0"
Depth
7' 0"
Select Plan Package
PDF Construction Set - Si
$350
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

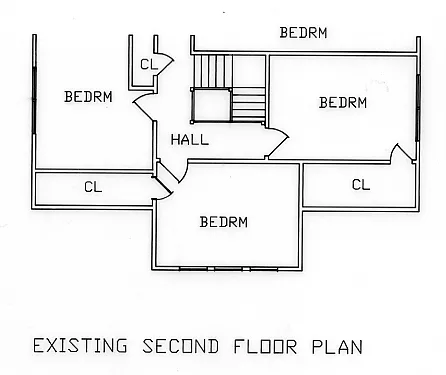

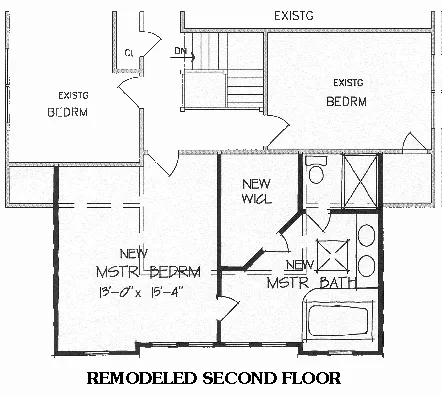

Second Floor Plan

Second Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 0
Bathrooms: 0.0
Garage: 0
Stories: 2
Exterior Style
Dimensions
Width: 27' 0"
Height: 0' 0"
Depth: 7' 0"
Heated Living Space
Total Sq. Ft: 432
