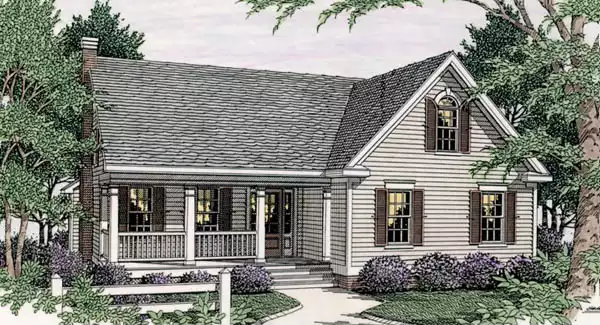

House Plan 3623: New Castle

Raised to 15-4 the greatroom ceiling ads an open feel to the area. Private owner's bedroom includes a large walk-in closet and the bath hosts double lavatories, garden tub, shower and linen closet. A garden house is included for the outdoor storage items.  Read more >

House Plan Details

Sq. Ft.
1,685
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
48' 0"
Depth
72' 0"
Select Plan Package
Five Sets - Minimum Const
$965
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

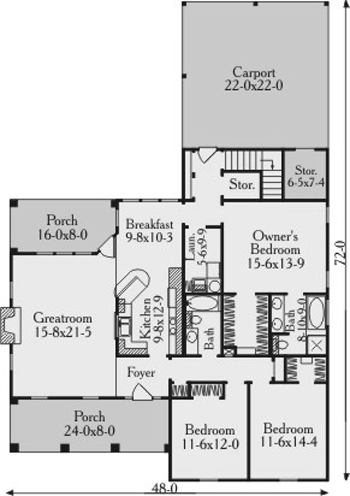

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,685
1st Floor SQ. FT.:
1,685

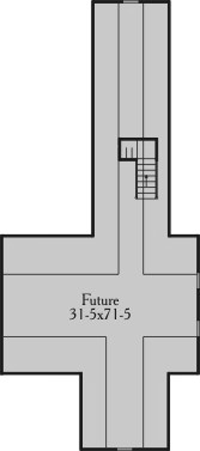

Bonus:
1,362
Bedrooms:
3
Bathrooms:
2.0
Garage:
2
Stories:
1
Main Ceiling Height:
9'
Upper Ceiling Height:
8'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 8/12
Width:
48' 0"
Height:
23' 0"
Depth:
72' 0"
Exterior Styles:
Cottage
Southern
Traditional
Unheated Living Space:
Garage: 535
Porch: 313
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Double Vanity Sink
Master Bdrm Main Floor
Master Bdrm Main Floor
Separate Tub and Shower
Separate Tub and Shower
Split Bedrooms
Split Bedrooms
Walk-in Closet
Walk-in Closet
Kitchen Features:
Nook / Breakfast Area
Nook / Breakfast Area
Peninsula / Eating Bar
Peninsula / Eating Bar
Additonal Features:
Fireplace
Fireplace
Foyer
Foyer
Great Room
Great Room
Laundry 1st Fl
Laundry 1st Fl
Open Floor Plan
Open Floor Plan
Storage Space
Storage Space
Unfinished Space
Unfinished Space
Vaulted Ceilings
Vaulted Ceilings
Garage Features:
Attached
Attached
Carport
Carport
Side-entry
Side-entry
Garage Location:
Rear
Lot Features:
Suited for corner lot
Suited for corner lot
Suited for view lot
Suited for view lot
