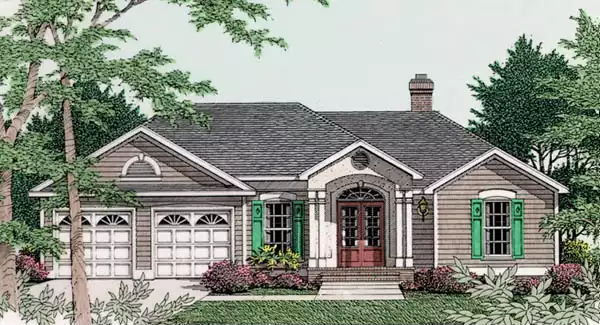

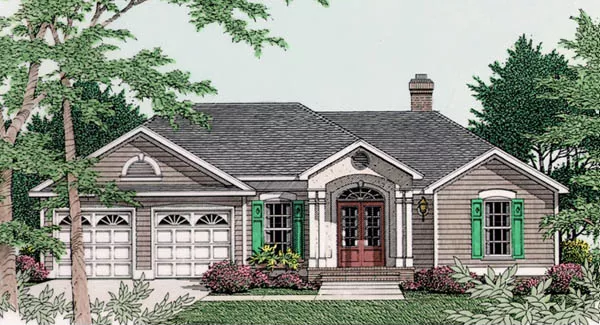

House Plan 3517: New Abbey

A vaulted foyer leads you to the vaulted living room. The octagonal ceiling adds character to the dining room and a tray ceiling sets the stage for the master bedroom. Architectural columns frame the opening from the kitchen to the living room.  Read more >

House Plan Details

Sq. Ft.
1,392
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
52' 6"
Depth
52' 8"
Select Plan Package
PDF Construction Set - Si
$950
Select Foundation Options
$0

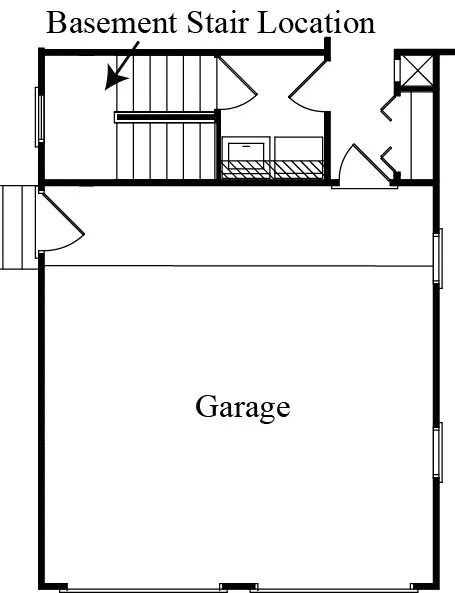

Basement
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

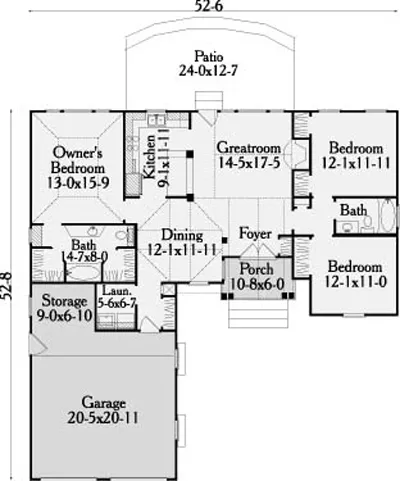

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,392
1st Floor SQ. FT.:
1,392
Bedrooms:
3
Bathrooms:
2.0
Garage:
2
Stories:
1
Main Ceiling Height:
8'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 7/12
Width:
52' 6"
Depth:
52' 8"
Height:
19' 0"
Exterior Styles:
Ranch
Southern
Traditional
Unheated Living Space:
Garage: 514
Porch: 60
HOME FEATURES
Bedroom Features:
His and Hers Master Closets
Master Bdrm Main Floor
Split Bedrooms
Walk-in Closet
Kitchen Features:
Kitchen Island
Additonal Features:
Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Storage Space
Vaulted Ceilings
Garage Features:
Attached
Front-entry
Garage Location:
Front
Lot Features:
Suited for corner lot
Suited for narrow lot
