Sq Ft
1,152 FT²

Beds
2

Baths
1.5

Stories
2

Garage
0

Depth
28'

Width
48'

From
$900.00

Front Exterior

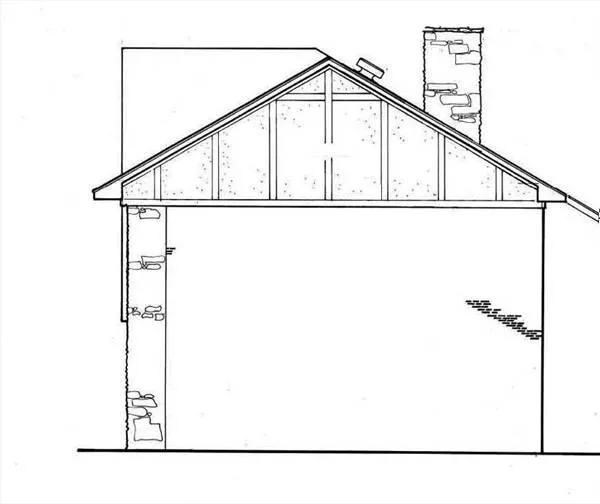

Right Side Elevation

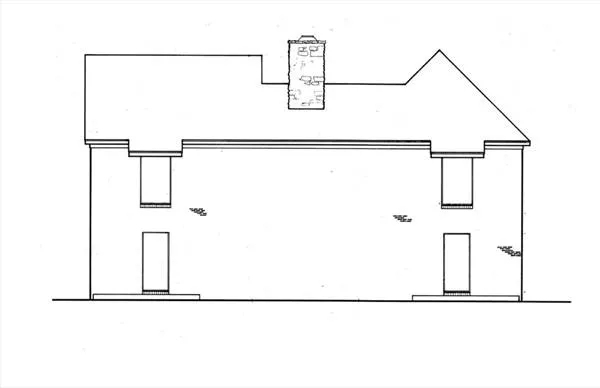

Rear Elevation

Left side elevation

View All 4 Images | Photographs may reflect modified home

Sq Ft

1,152 FT²

From

$900.00

Beds

Baths

1.5

Stories

Garage

Depth

28'

Width

48'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

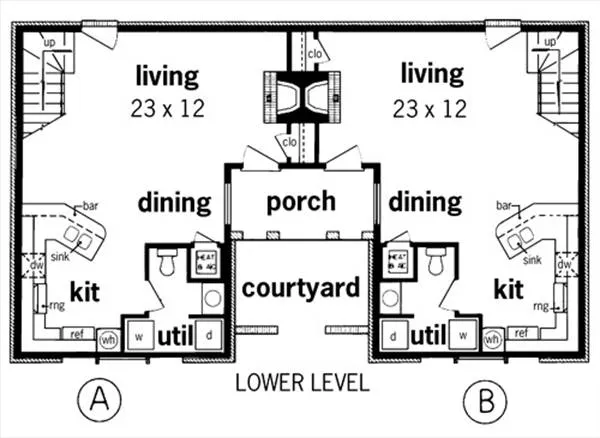

First Floor Plan

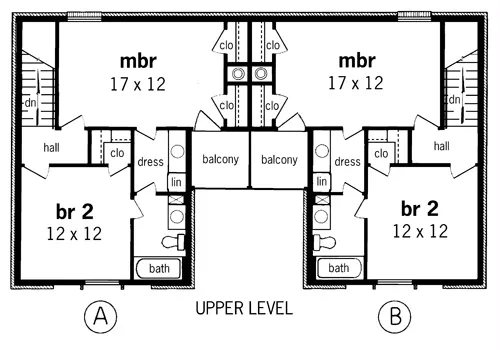

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

The open lower level gives this impressive duplex the look and feel of a much larger unit. The living room features a wood burning fireplace and easy access to the upper level or the outside. The kitchen has a full length bar to make serving meals easy and convenient. Unit A has 1152 sq. ft. of heated area. Unit B has 1170 sq. ft. of heated area.

FEATURES & DETAILS

Exterior features

Front Porch

Foundation Options

Crawlspace
Slab

Lot Options

Suited for narrow lot

Garage Options

None

2,466 Ft

Total Structure

1,152 Ft

Unit Heated

Bedrooms

1.5

Bathrooms

Garage

Stories

48' 0"

Width

28' 0"

Depth

26' 0"

Height

8' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

7/12

Primary Roof Pitch

Duplex

Dwelling Number

Unheated Living Space

144 Ft

Porch

Exterior Styles

Traditional

Plan Package Options

Important info before you buy

Select Plan Package

$700

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$700

$900

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$900

$1,005

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,005

$1,050

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,050

$1,110

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,110

$1,160

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,160

$1,600

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,600

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
