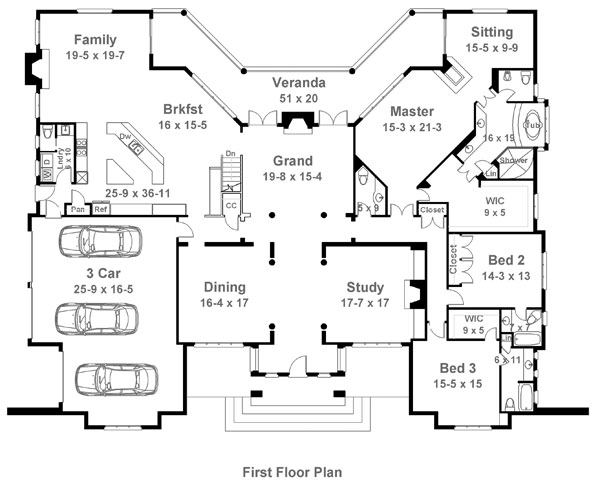

This floor plan is inspired by alluring contours and a generous provision of style and comfort. The vestibule ushers you to the two-story foyer, bounded by the dining room on the left, and the hushed study to the right. The two-story grand room lies at the end of the foyer, featuring a romantic fireplace between twin sets of double doors, which open to an angled veranda. The indulgent master suite is accented by a beautiful coffered ceiling and window wall, conferring views upon the veranda. The suite features its own see-through fireplace and private sitting area.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Walk-in Closet

Exterior features

Rear Porch

Foundation Options

Basement
Crawlspace
Daylight Basement
Slab

Additional features

2 Story Volume
Dining Room
Exercise Room
Family Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Rec Room

Garage Location

Side

Garage Options

Attached
Side-entry

5,138 Ft

Total Structure

4,238 Ft

Total Heated

4,238 Ft

1st Floor

4,208 Ft

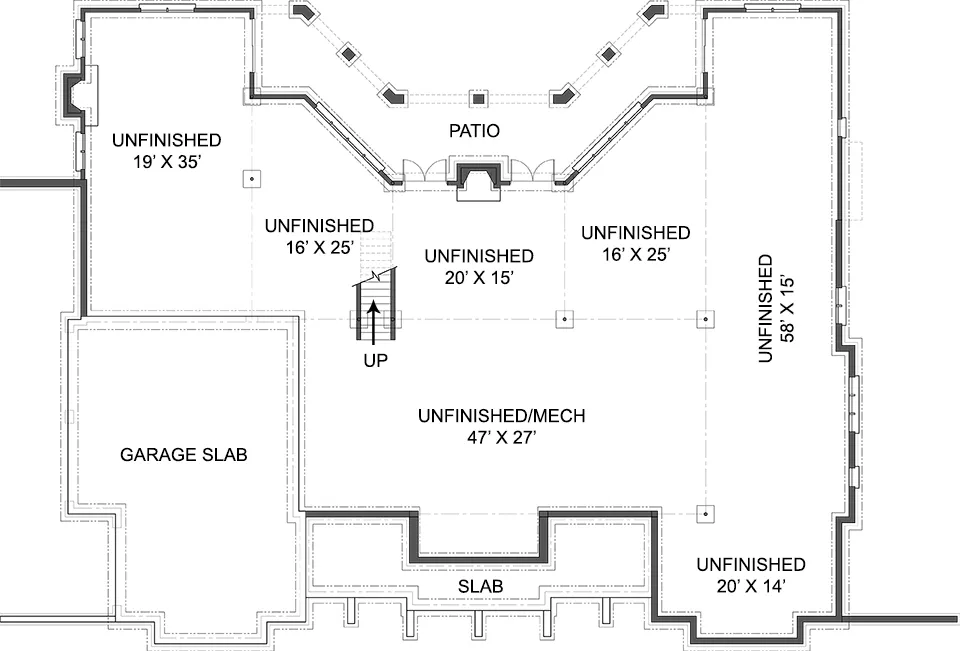

Lower Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

89' 0"

Width

74' 0"

Depth

32' 0"

Height

10' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

9/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

900 Ft

Garage

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,695

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,695

$2,125

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,125

$2,225

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,225

$2,495

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,495

$3,290

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$3,290

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
