House Plan 5147: Margate

This simple plan harbors an enchanting surprise - it has a lower level for hillside lots. The main level offers complete livability with a den to the left of the entry and the great room, nook and kitchen to the left. The den contains a bay window and built-ins, while the great room has a fireplace and corner media center.  Read more >

House Plan Details

Sq. Ft.
3,955
Beds
4
Baths
3.1
Stories
1
Garages
3
Width
70' 0"
Depth
52' 0"
1st Floor
2,167

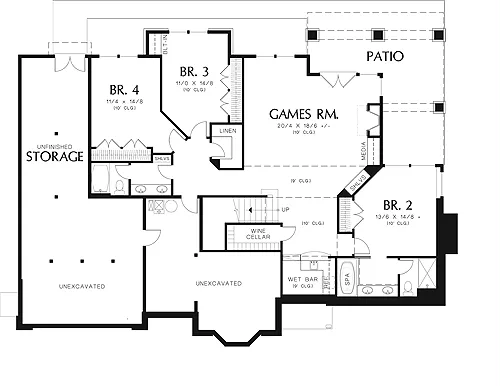

Lower
1,788
Garage
630
Storage
475
Select Plan Package
PDF Files - Single Build
$1539
Select Foundation Options
$0
Slab Foundation-Included
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

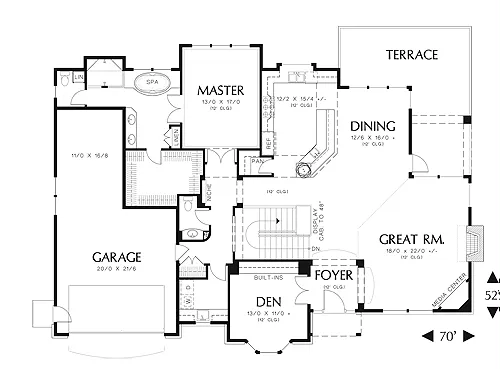

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
3,955
1st Floor SQ. FT.:
2,167
Lower:
1,788
Bedrooms:
4
Bathrooms:
3.1
Garage:
3
Stories:
1
Main Ceiling Height:
12'
Upper Ceiling Height:
10'
Framing:
2x6
Roof Framing:
Truss
Roof Pitch:
Primary: 12/12
Width:
70' 0"
Height:
34' 0"
Depth:
52' 0"
Exterior Styles:
European
French Country
Traditional
Unheated Living Space:
Garage: 630
Storage: 475
Deck: 456
HOME FEATURES
Bedroom Features:
2 Master Suites
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features:
Country Kitchen
Kitchen Island
Walk-in Pantry
Additonal Features:
Fireplace
Foyer
Great Room
Home Office
In-law Suite
Library/Media Rm
Open Floor Plan
Storage Space
Wine Cellar
Workshop
Garage Features:
Attached
Tandem
Garage Location:
Front
Lot Features:
Suited for sloping lot
Suited for view lot

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
