House Plan 4829: Mansfield-3600

This sprawling but graceful one story plan is designed with every imaginable luxury. The front porch is stately and a full 8 wide to accommodate porch swings and rocking chairs. Formal living and dining spaces flank the unusual shaped family room and all have 10 high ceilings.  Read more >

House Plan Details

Sq. Ft.
3,623
Beds
3
Baths
3.1
Stories
1
Garages
2
Width
98' 0"
Depth
80' 0"
1st Floor
3,623
Select Plan Package
PDF Construction Set - 1
$1150
Select Foundation Options
$0
Crawl Space Foundation
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

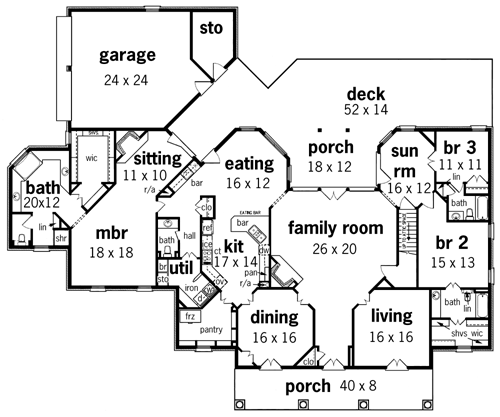

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
3,623
1st Floor SQ. FT.:
3,623
Bedrooms:
3
Bathrooms:
3.1
Garage:
2
Stories:
1
Main Ceiling Height:
10'
Upper Ceiling Height:
9'
Framing:
2x6
Roof Framing:
Roof Pitch:
Primary: 9/12
Width:
98' 0"
Height:
0' 0"
Depth:
80' 0"
Exterior Styles:
Southern
Traditional
Unheated Living Space:
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Garage Features:
Attached
Garage Location:
Side
Lot Features:
Suited for corner lot
