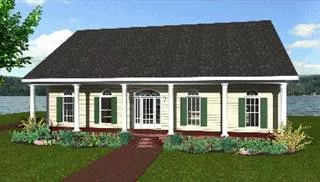

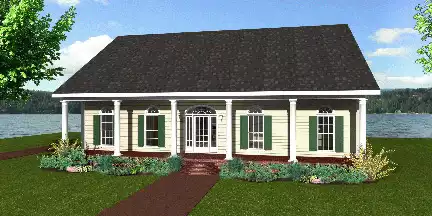

House Plan 7782: Latimer Bay

This plan is open and spacious with 10 ceilings through the home; enter through a beautiful French door with sidelights and an arched transom into the Great Room.This layout is perfect for entertaining with the Great room, Kitchen and Dining area open, flowing from front to back.  Read more >

House Plan Details

Sq. Ft.
1,735
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
51' 0"
Depth
68' 0"
1st Floor
1,735
Garage
535
Storage
67
Porch
442
Select Plan Package
Five Sets
$700
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

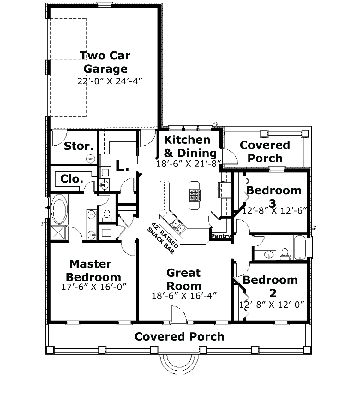

Floor Plan

Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,735
1st Floor SQ. FT.:
1,735
Bedrooms:
3
Bathrooms:
2.0
Garage:
2
Stories:
1
Main Ceiling Height:
10'
Upper Ceiling Height:
0'
Framing:
2x6
Roof Framing:
Truss
Roof Pitch:
Primary: 8/12
Width:
51' 0"
Height:
26' 0"
Depth:
68' 0"
Exterior Styles:
Country
Southern
Traditional
Unheated Living Space:
Garage: 535
Storage: 67
Porch: 442
HOME FEATURES
Bedroom Features:
Master Bdrm Main Floor
Master Bdrm Main Floor
Separate Tub and Shower
Separate Tub and Shower
Split Bedrooms
Split Bedrooms
Walk-in Closet
Walk-in Closet
Kitchen Features:
Kitchen Island
Kitchen Island
Peninsula / Eating Bar
Peninsula / Eating Bar
Walk-in Pantry
Walk-in Pantry
Additonal Features:
Great Room
Great Room
Laundry 1st Fl
Laundry 1st Fl
Open Floor Plan
Open Floor Plan
Garage Features:
Attached
Attached
Garage Location:
Side
Lot Features:
Suited for corner lot
Suited for corner lot
Suited for view lot
Suited for view lot

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer

Questions & Answers

Have questions about this plan?
