Sq Ft
4,750 FT²

Beds
4

Baths
3.5

Stories
2

Garage
3

Depth
70'

Width
63' 6"

From
$2,700.00

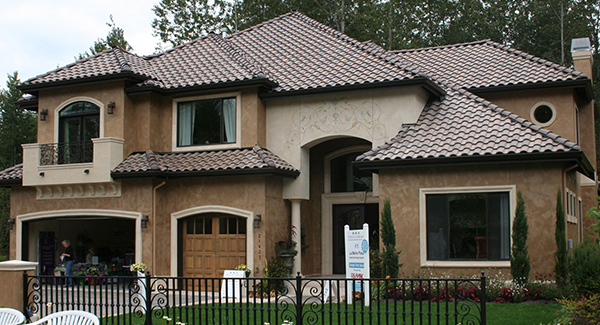

Front Photo

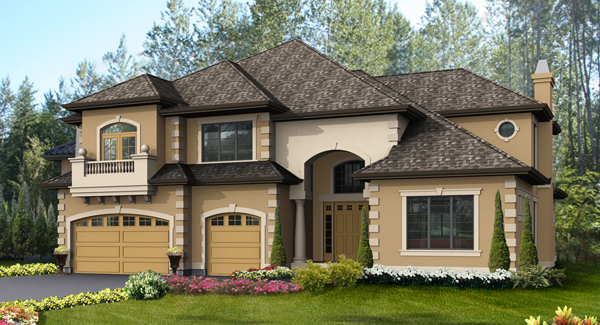

Front Rendering

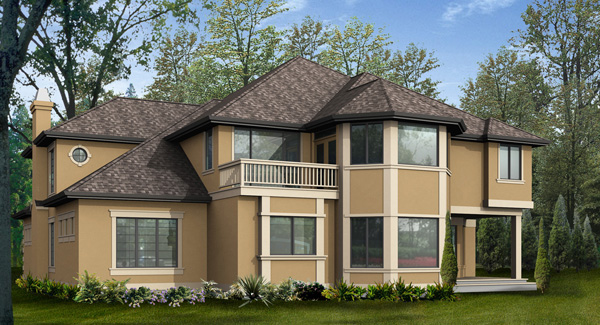

Rear Rendering

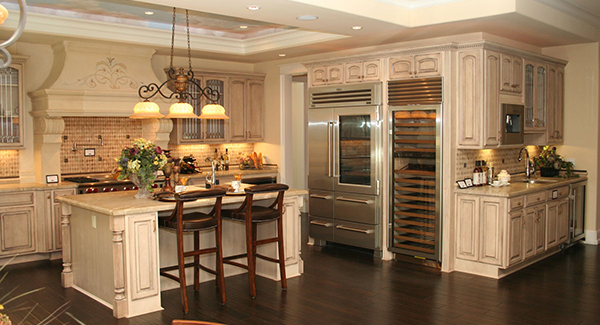

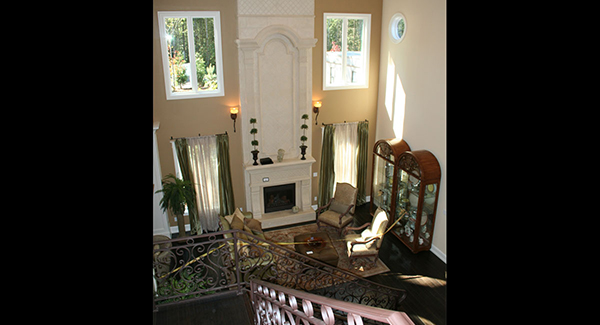

Interior Photo

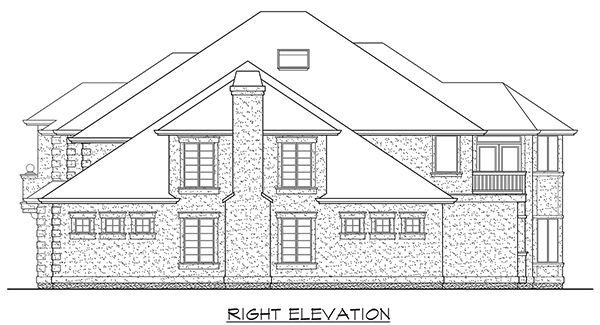

Right Elevation

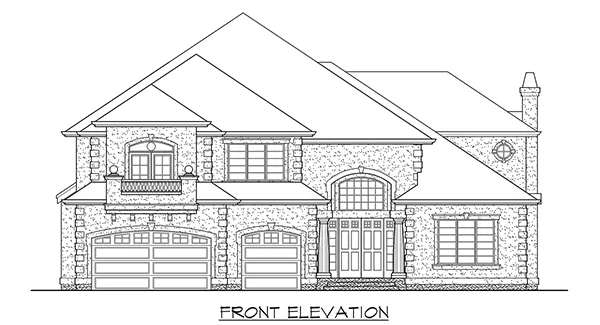

Front Elevation

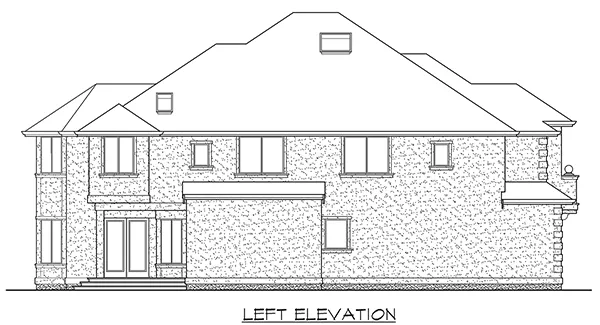

Left Elevation

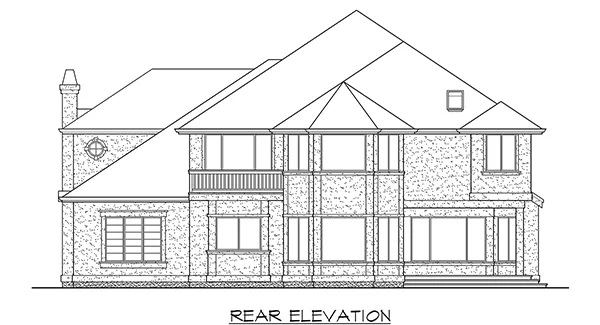

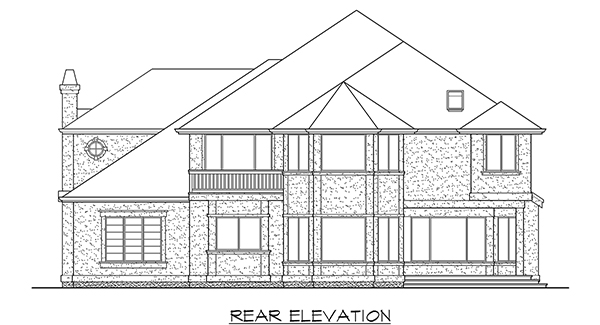

Rear Elevation

View All 14 Images | Photographs may reflect modified home

Sq Ft

4,750 FT²

From

$2,700.00

Beds

Baths

3.5

Stories

Garage

Depth

70'

Width

63' 6"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

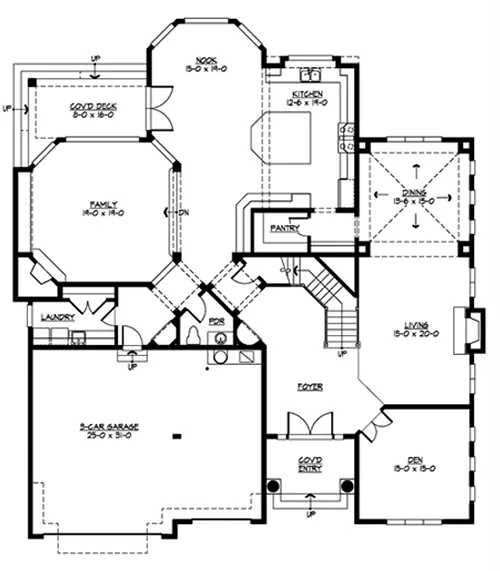

Main Floor

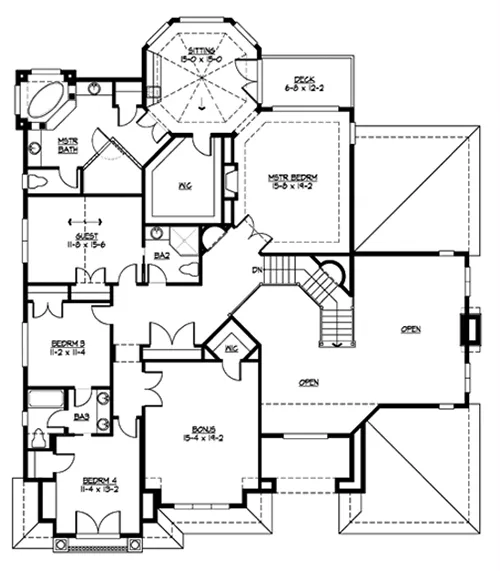

Upper Floor

Main Floor

Upper Floor

About This Plan

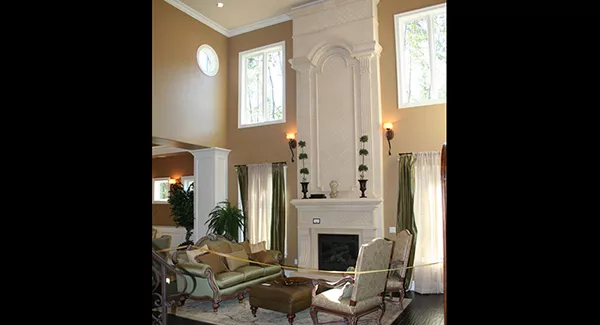

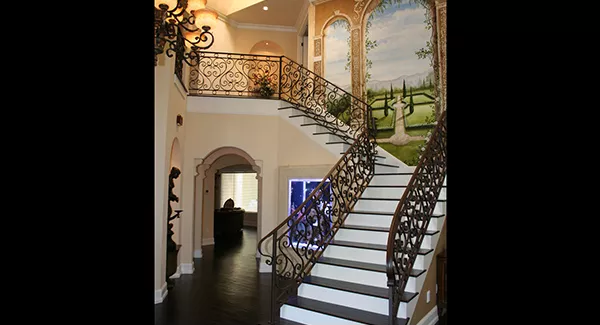

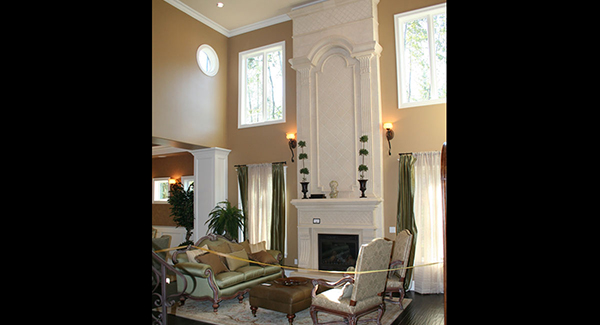

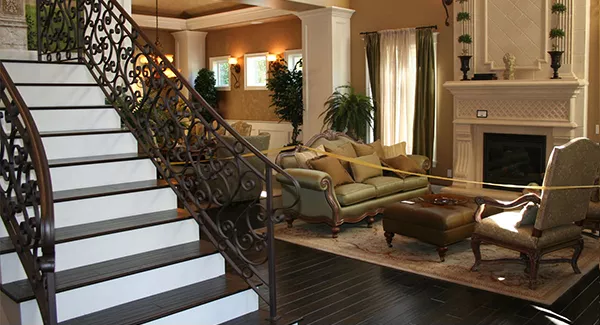

Offering exceptional luxury on a compact footprint, the monumental entry arch creates impressive curb appeal, while the interiors enclose outstandingly crafted spaces. The grand foyer, with its elegant curving staircase, join with the high-windowed double-height living room for a spectacular formal entertaining space. The private, vaulted den is conveniently accessed from the foyer, while the gracious kitchen with butlery, nook and family room are positioned towards the rear, encouraging intimate family gatherings. The upper level contains a spacious master suite with sitting area and oversize walk-in closet, a guest bedroom with ensuite bath, and two childrens bedrooms served by a compartmented hall bath.

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch

Foundation Options

Crawlspace

Additional features

2 Story Volume
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

4,750 Ft

Total Heated

2,535 Ft

1st Floor

2,215 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

63' 6"

Width

70' 0"

Depth

34' 6"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

Primary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

808 Ft

Garage

Exterior Styles

Mediterranean

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$2,700

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,700

$4,500

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,500

Need To Reverse Plan? (Optional)

$300

Readable Reverse

Reverse house plans with readable text and dimensions

$300

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.

Note: This plan cannot be purchased for construction in Washington State.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
