Sq Ft
5,884 FT²

Beds
5

Baths
5.5

Stories
1

Garage
3

Depth
115' 9"

Width
164' 8"

From
$3,034.00

View All 32 Images | Photographs may reflect modified home

Sq Ft

5,884 FT²

From

$3,034.00

Beds

Baths

5.5

Stories

Garage

Depth

115' 9"

Width

164' 8"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

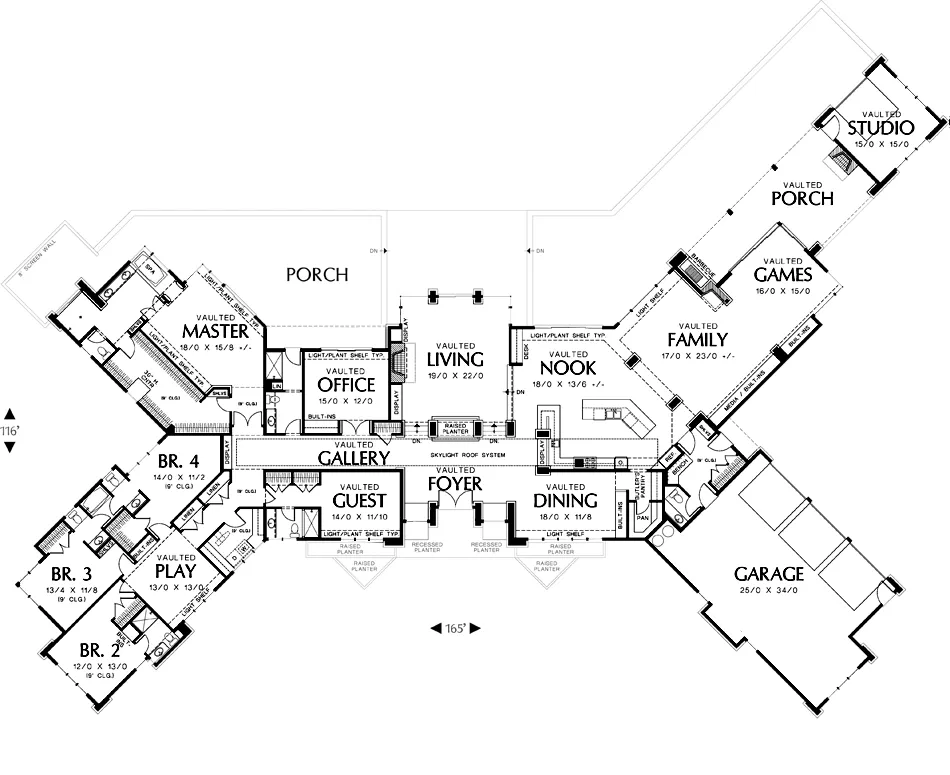

First Floor Plan

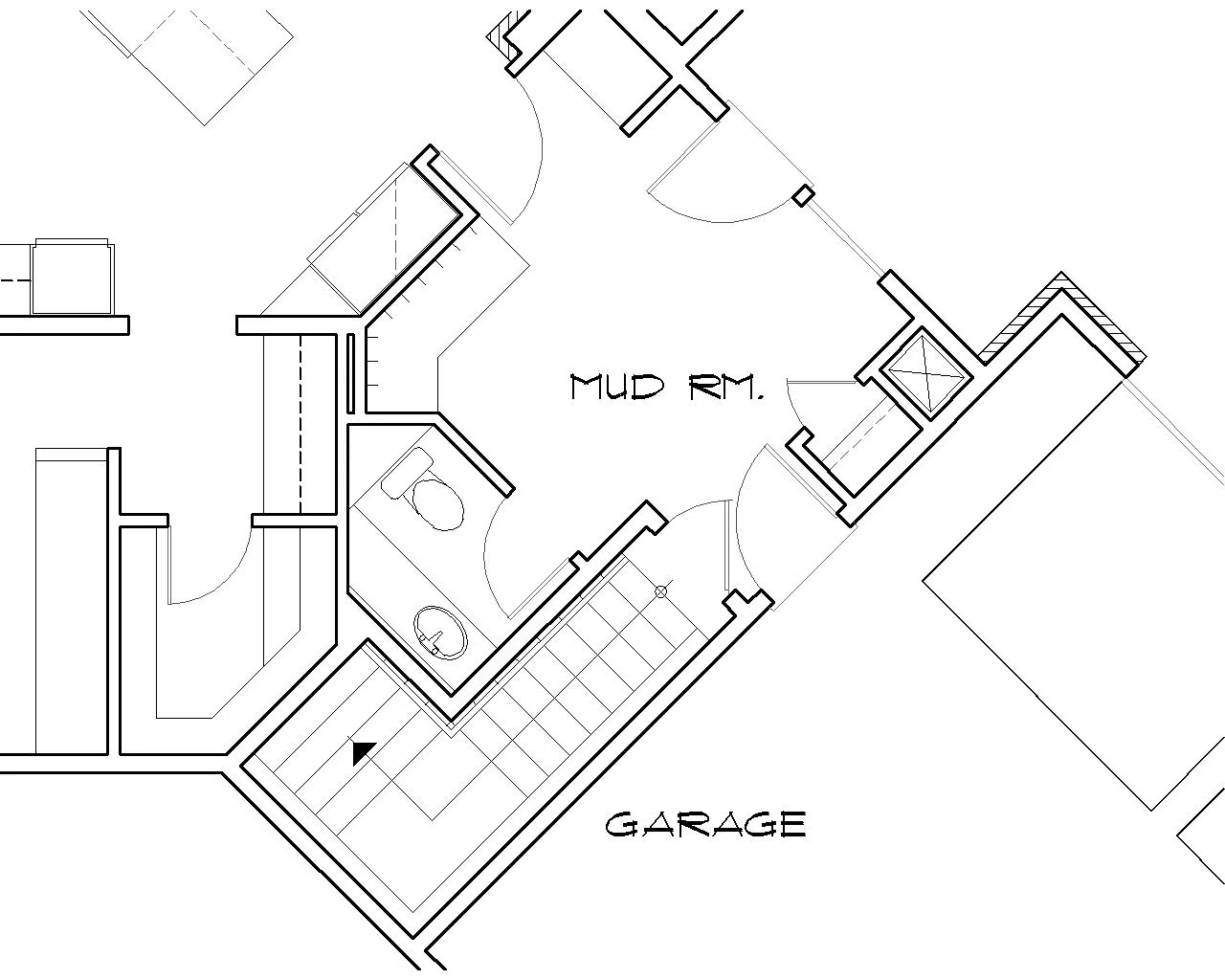

Basement Stair Location

First Floor Plan

Basement Stair Location

About This Plan

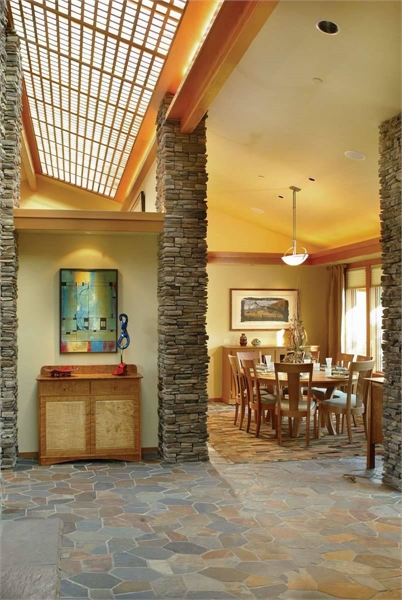

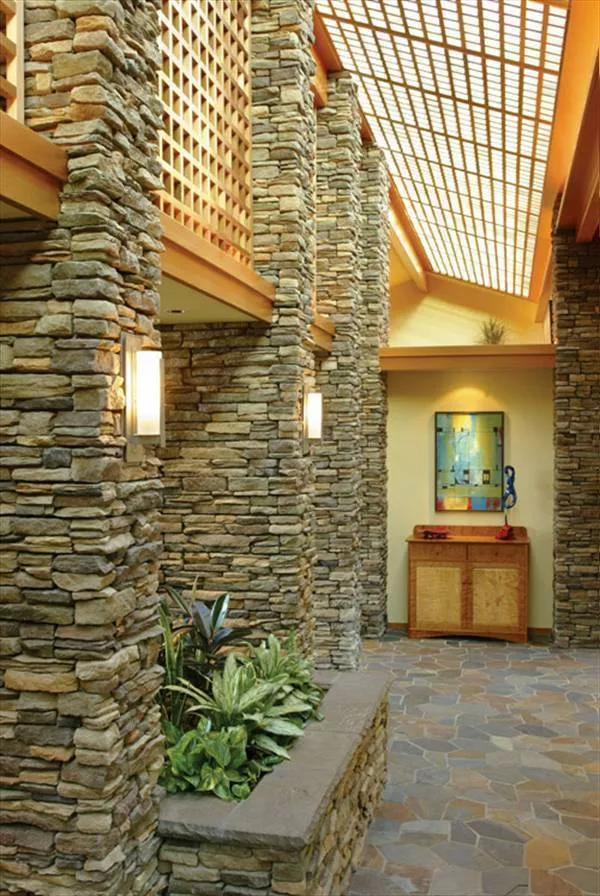

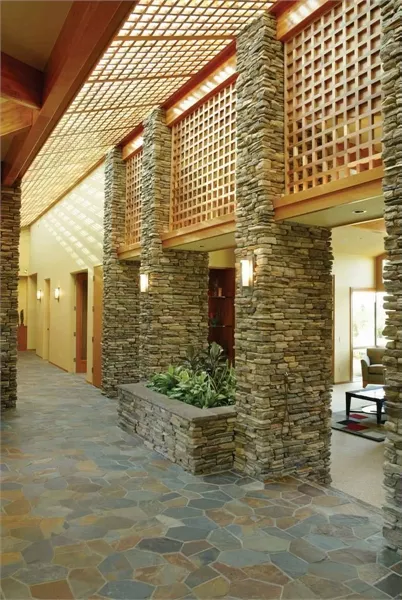

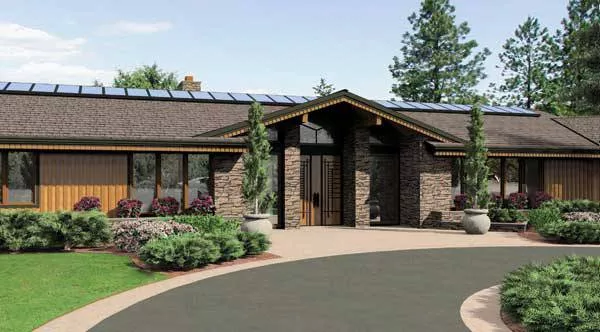

With todays advances in technology and changes in the family dynamic, some homes need to be more than just after-work and weekend retreats. This crisp rambler typifies the multifunctional home. The floor plan serves on many different levels, beginning with ideal office and studio space for work-at-home professionals. The office, located off the gallery from the foyer, features double-door privacy, built-ins, and a next-door bath. For further separation and privacy, a studio is located next to a covered porch at the end of a family and game room wing.

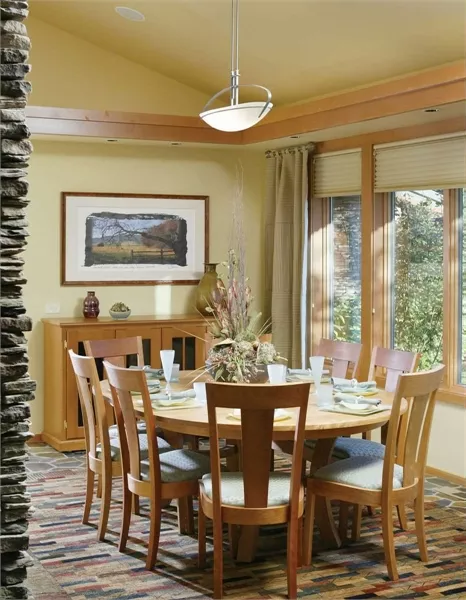

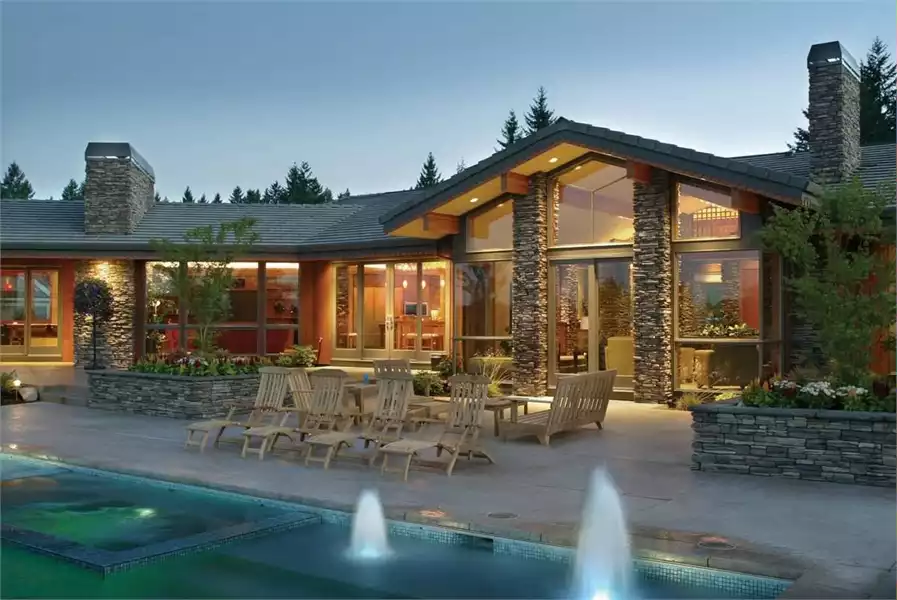

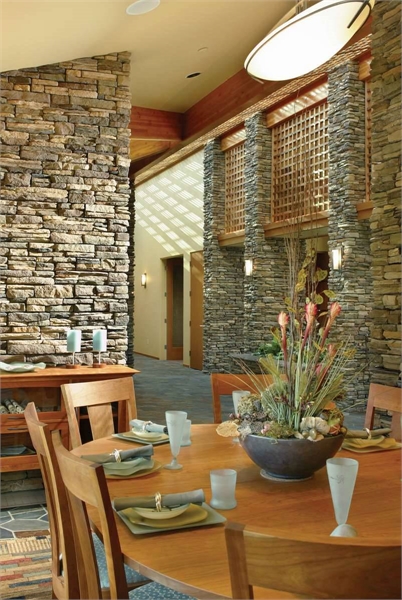

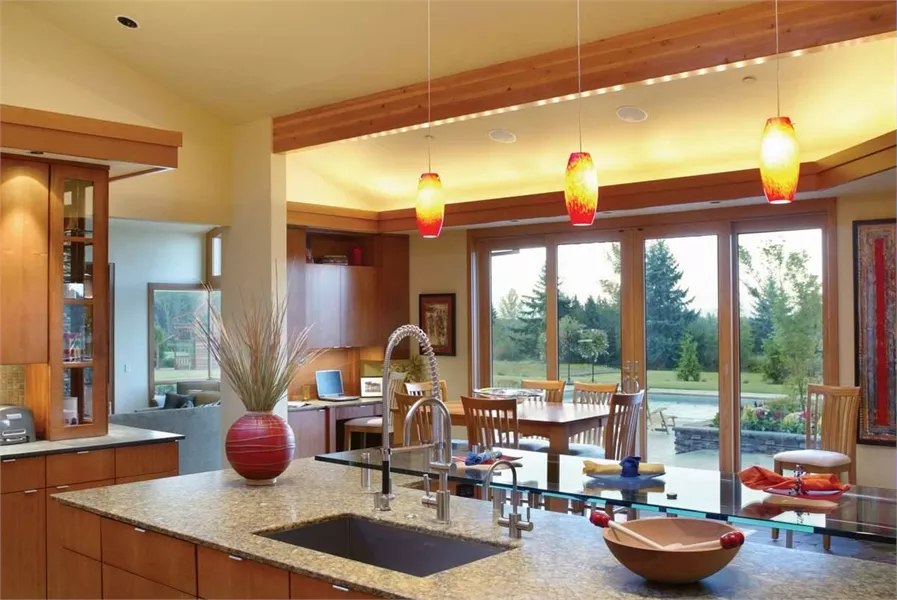

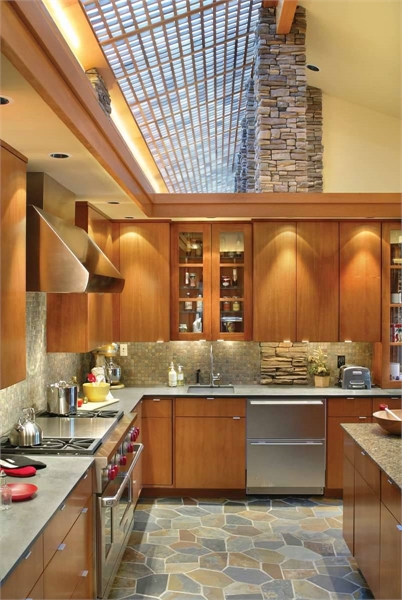

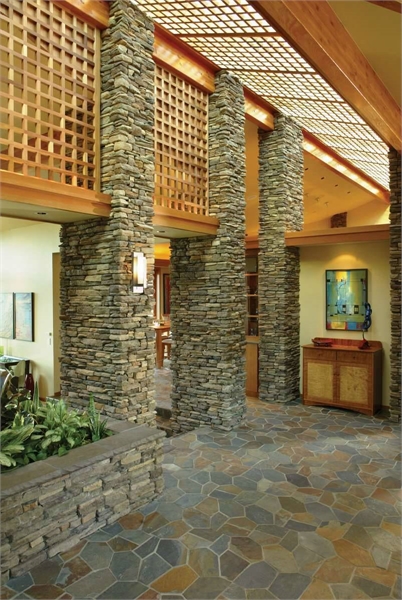

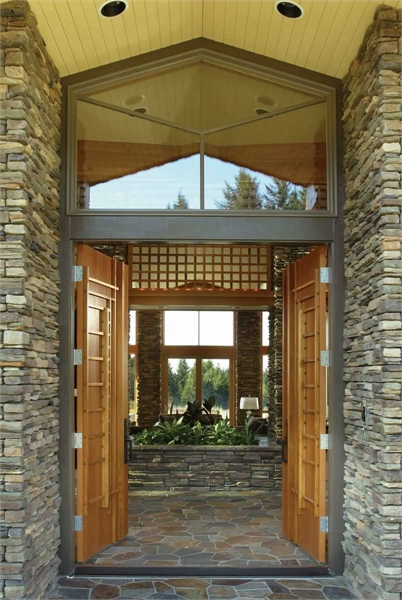

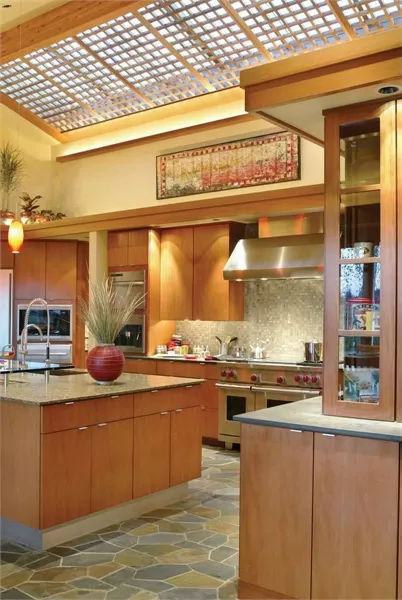

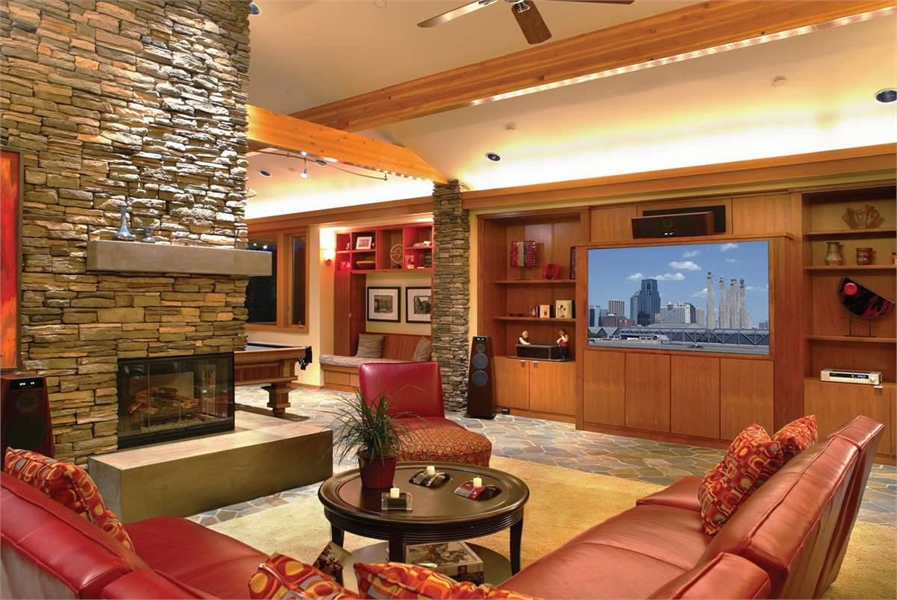

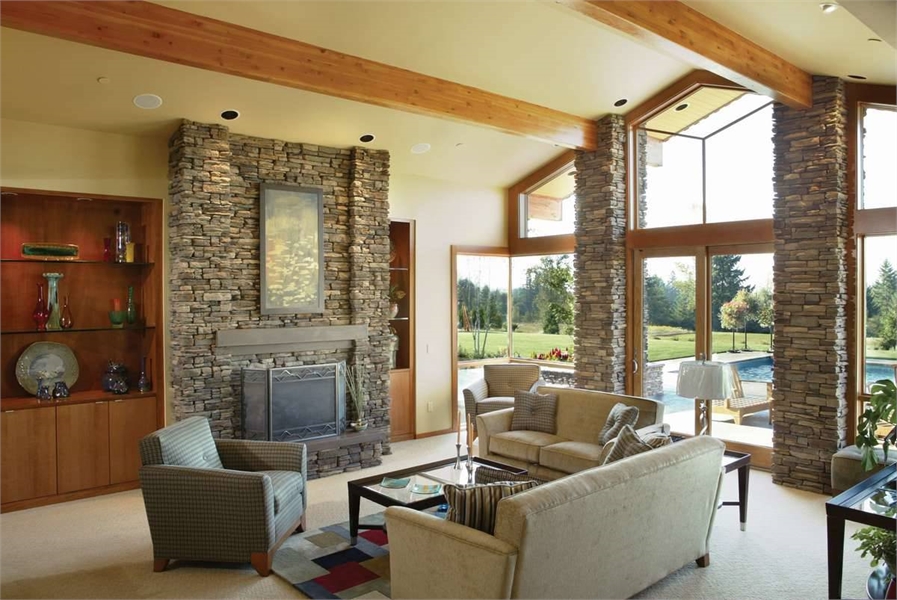

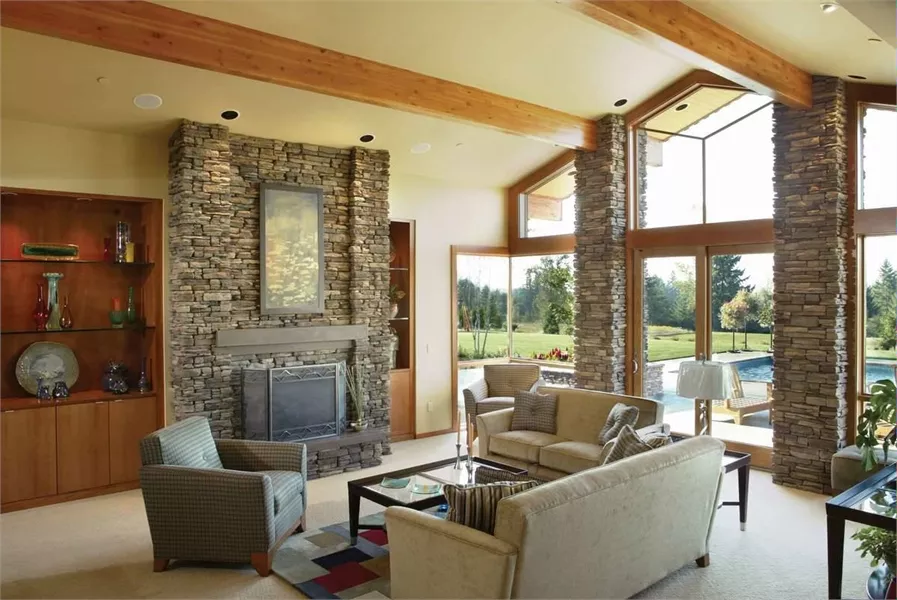

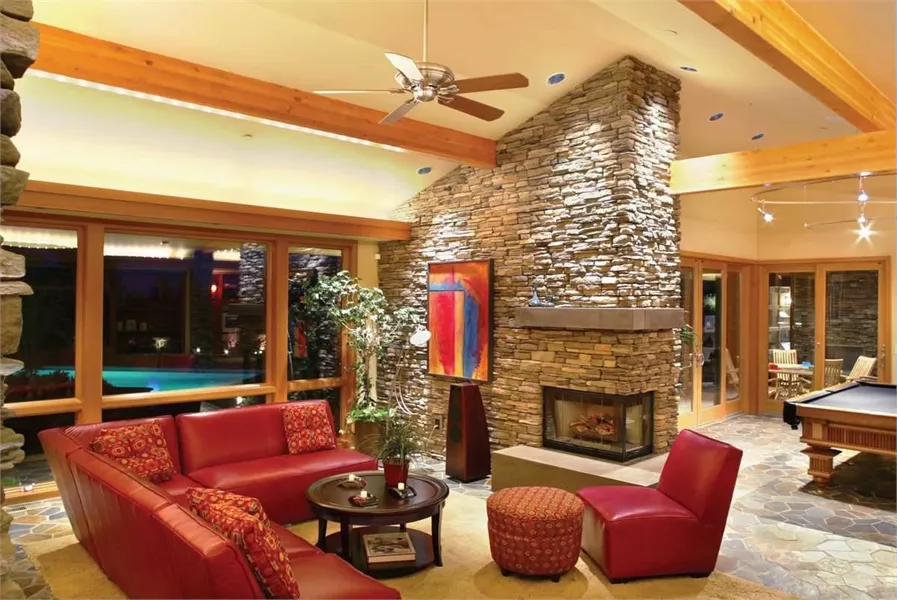

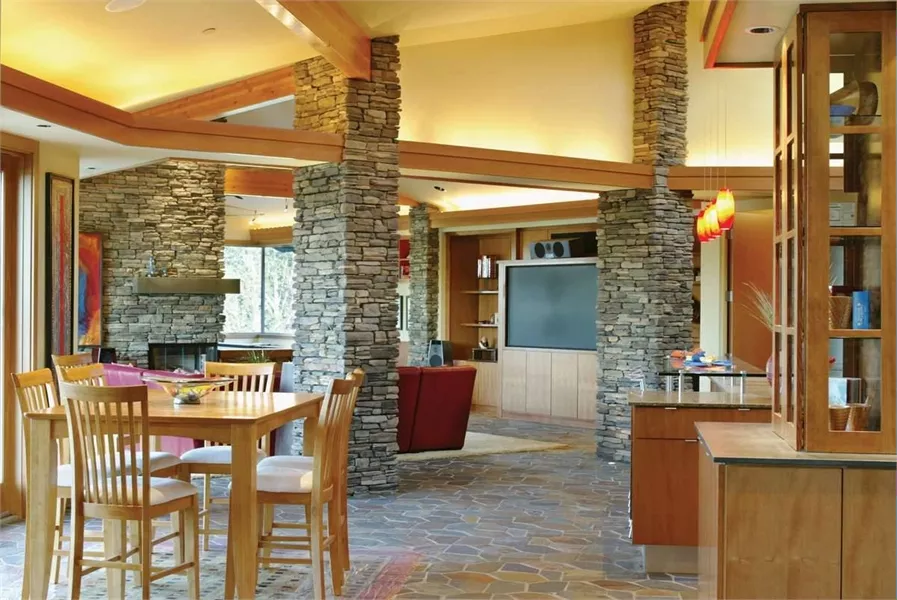

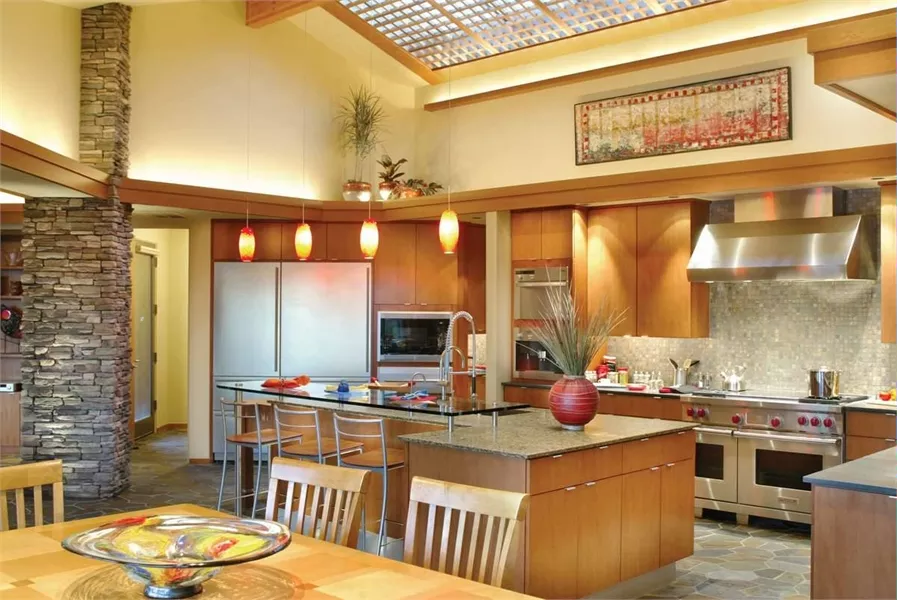

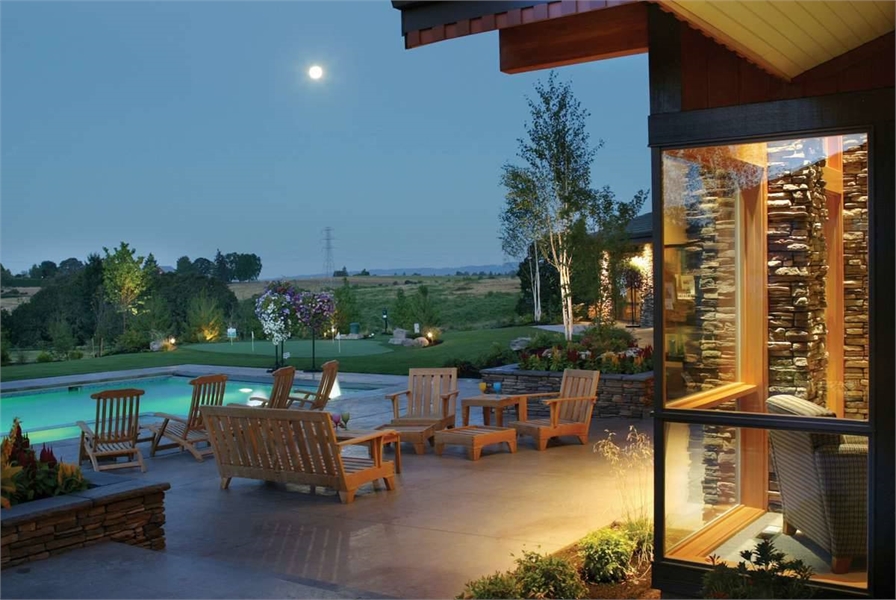

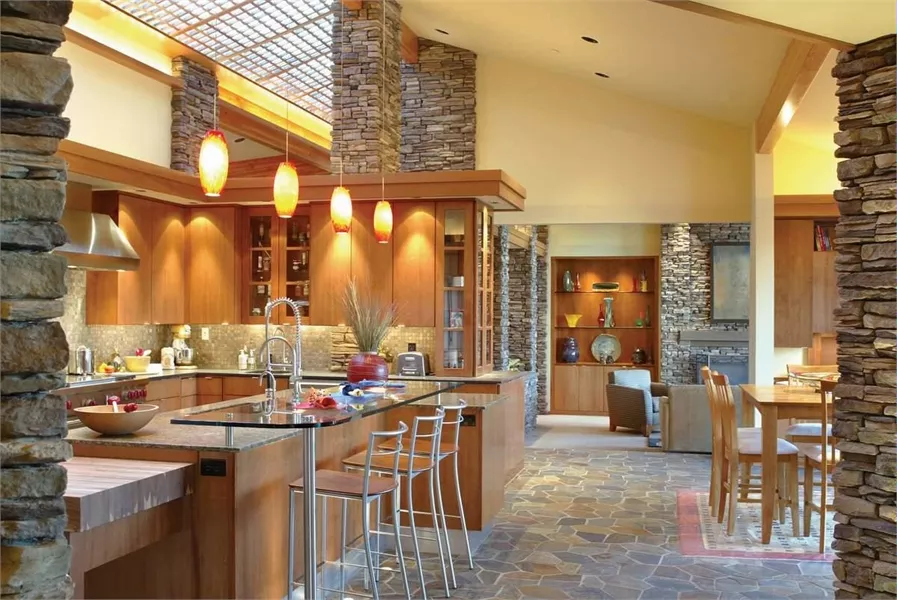

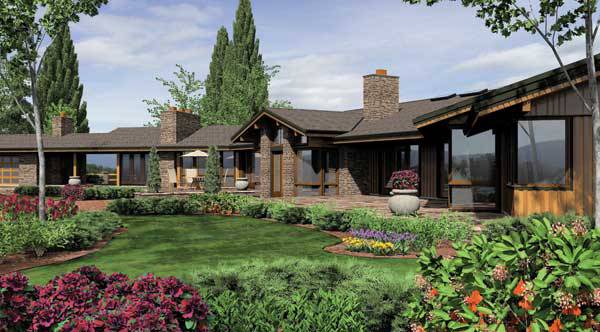

Entertaining space flows from the open foyer to the sunken living room and to the formal dining room. Built-ins, light and display shelves, and a fireplace are pleasing to behold. For informal needs, a family and game-room space flows off the kitchen and breakfast nook. The fun of a family gathering can quickly spread outdoors onto a covered porch off the game room, where a fireplace and space for a built-in barbecue grill await.

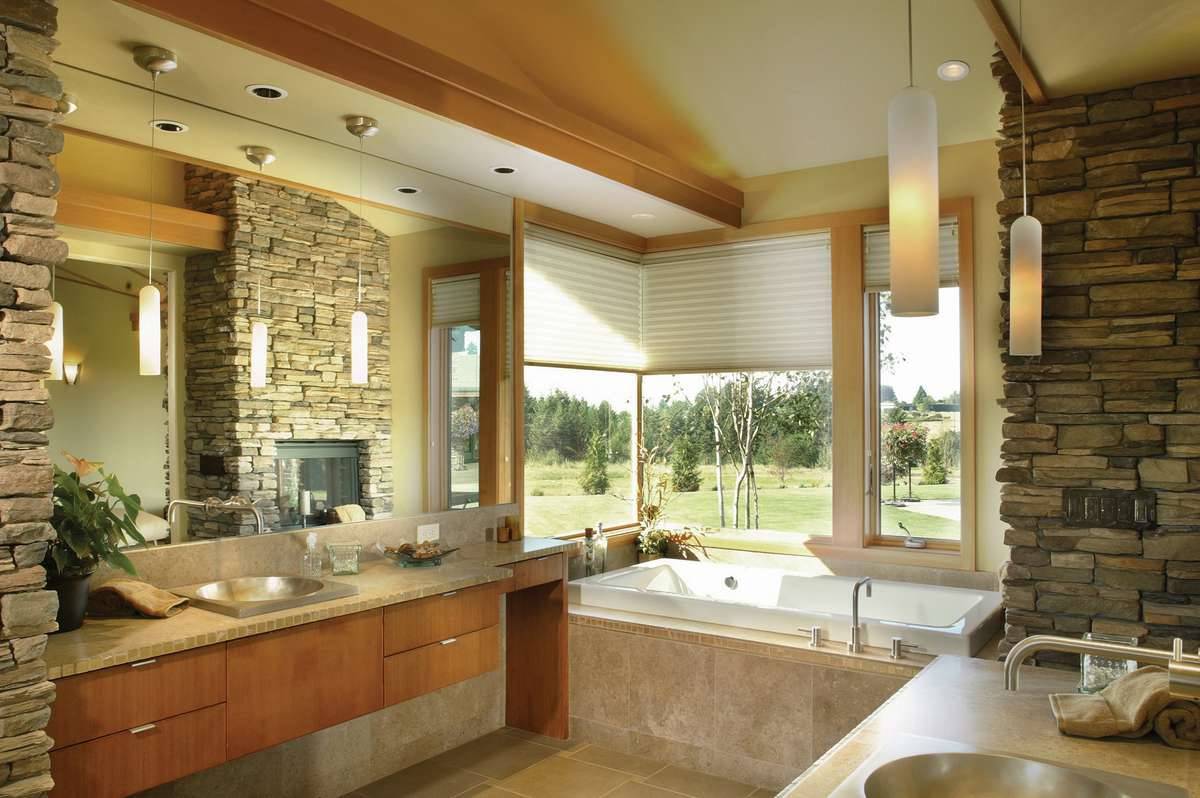

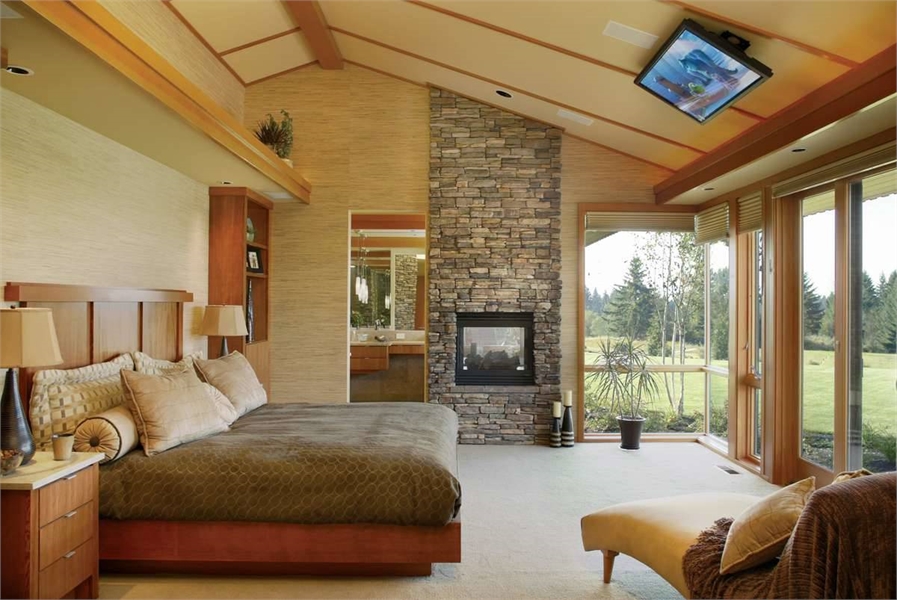

A wing on the opposite side of the home caters to children. Three childrens bedrooms surround an open play space, where toys can be contained and where children can conveniently watch a movie before bedtime. The master suite is down the hall and includes a massive walk-in closet, walk-in shower, and spa tub.

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Rear Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for view lot

Additional features

Bonus Room
Dining Room
Exercise Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
In-law Suite
Laundry 1st Fl
Mud Room
Open Floor Plan
Rec Room
Vaulted Ceilings

Garage Location

Rear

Garage Options

Attached
Rear-entry

5,884 Ft

Total Heated

Bedrooms

5.5

Bathrooms

Garage

Stories

164' 8"

Width

115' 9"

Depth

16' 2"

Height

Varies' 0"

Main Floor Ceiling

2x6

Framing

Stick

Roof Framing

4/12

Primary Roof Pitch

Single

Dwelling Number

1st Floor

Bonus Access

Unheated Living Space

1,004 Ft

Garage

512 Ft

Porch

Exterior Styles

Contemporary

Mid-Century Modern

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$3,034

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$3,034

$3,234

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,234

$3,284

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$3,284

$6,068

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$6,068

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
