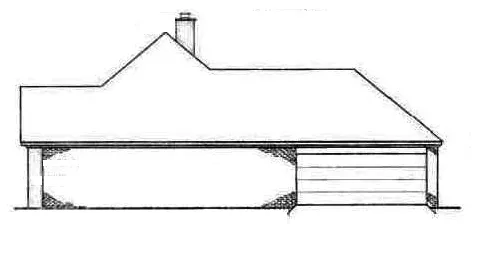

Right Side Elevation

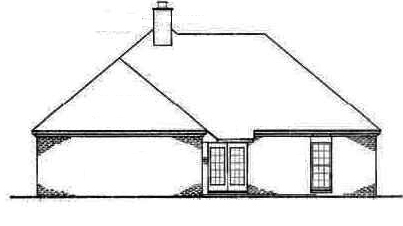

Rear Exterior

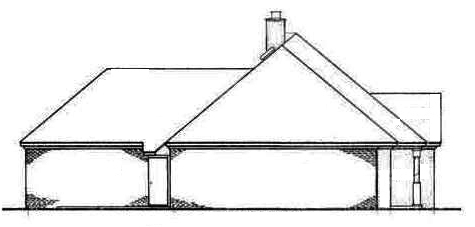

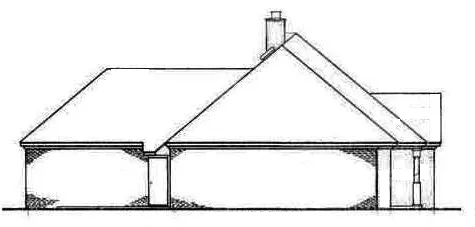

Left side elevation

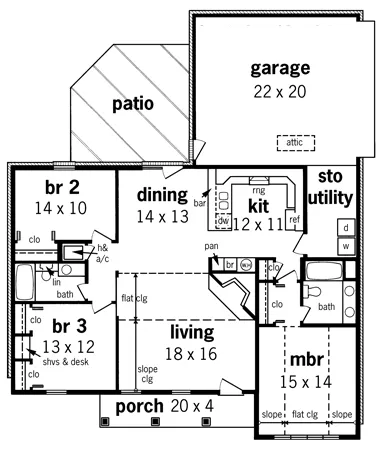

First Floor Plan
See all 4 photos
(photographs may reflect modified homes)
© copyright by designer
Mouse over photo to pause
House Plan 5201: Jordan - 1311
This darling cottage features a sloped ceiling in the living room and master bed room. Designed with 2x6 walls, the super energy saving design is very easy to heat and cool.
See Plan Details
See Architect Preferred Products For This Plan >
House Plan Details
Sq. Ft.
1,380
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
46' 0"
Depth
56' 0"
Modify This
Home Plan
Detailed Build
Cost Estimator
For assistance,
email
,
live chat
, or call us at
866-214-2242
What's Included?
Select Plan Package
PDF Construction Set - 1
$800
PDF BID SET
PDFs Now!™
$600
PDF BID SET
PDF Construction Set - 1 Build
PDFs Now!™
$800
PDF Electronic files
4 sets
$905
5 sets
$950
5 set construction package - you may need 8 sets if you are acquiring a home loan and if you must get a building permit
8 sets
$1060
8 sets plus PDF electronic file
$1160
Cad Files
$1500
Select Foundation Options
$0
Concrete Slab Foundation
Concrete Slab Foundation
PDFs Now!™
$0
This plan is designed on a 4" thick Monolithic concrete slab foundation.
Optional Crawl Space Foun...
PDFs Now!™
$100
An Alternate Crawl Space Foundation is available for this plan. This type of foundation raises the floor level of the house several feet above the existing grade. The advantages of a crawl space foundation are it is more energy efficient and it does not require a level building site.
CALL FOR PRICING
Basement
A Basement foundation plan can be added to this plan for a nominal fee. Please call for details.
Best Price Guarantee*
$0
Optional Add-Ons
Optional Add-Ons
ENERGY STAR® Approved
$175
Materials List
$90
The Materials list includes the material quantity for the foundation, framing, exterior finish and interior drywall. It will not include plumbing fixtures, electrical fixtures, heating and air conditioning or interior finish.
Additional Sets
$45
For those that purchase the 4, 5 or 8 set package of prints, additional sets of prints can be purchased in any quantity. The price indicated is good for additional sets purchased with the original order. Additional sets may be ordered later and up to 6 months after the original order for a price of $50 per set plus shipping but only for the building of the same home.
Additional copies of materials...
$15
This option requires that you first purchase a single materials list before purchasing additional copies. This option applies to only those who purchase prints. Those purchasing reproducibles, PDF file or cad files can print their own extra copies.
Mirror Reverse Set
$60
The image is reversed 180 degrees in a mirror reverse plan; however, the lettering and dimensions will also be reversed. If you select the mirror reverse option, you will receive 2 sets of your total order in mirror reverse. The mirror reverse sets will assist your contractor to lay out the foundation and framing in reverse. The remaining sets of your order will not be mirror reversed. Your lender and permit department will not accept mirror reverse plans.
ADD PDF TO PRINT ORDER
$100
For those that want both prints and a PDF electronic file, order the prints and choose the option to ADD A PDF ELECTRONIC FILE TO A PRINT ORDER. When choosing this option, the customer must order prints. This is a great option because prints can be used to distribute to your contractor for use on the job site. The PDF electronic files can be sent to sub-contractors, permit departments and your lender.
Subtotal:
$0
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please
live chat
,
email
or call for availability.
What You Should Know Before Buying! >
View Sample Construction Drawing >
PLAN IMAGES
Add to Favorites
First Floor Plan
First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,380
1st Floor SQ. FT.:
1,380
Bedrooms:
3
Bathrooms:
2.0
Garage:
2
Stories:
1
Main Ceiling Height:
8'
Upper Ceiling Height:
'
Framing:
2x6
Roof Framing:
Stick
Roof Pitch:
Primary: 10/12
Width:
46' 0"
Depth:
56' 0"
Height:
22' 0"
Exterior Styles:
Cottage
European
Traditional
Unheated Living Space:
Garage: 440
Storage: 84
Porch: 80
Patio: 400
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additional Features:
Garage Features:
Attached
Garage Location:
Side
Lot Features:
Suited for narrow lot
