Sq Ft
3,107 FT²

Beds
4

Baths
3

Stories
2

Garage
2

Depth
50'

Width
52'

From
$1,325.00

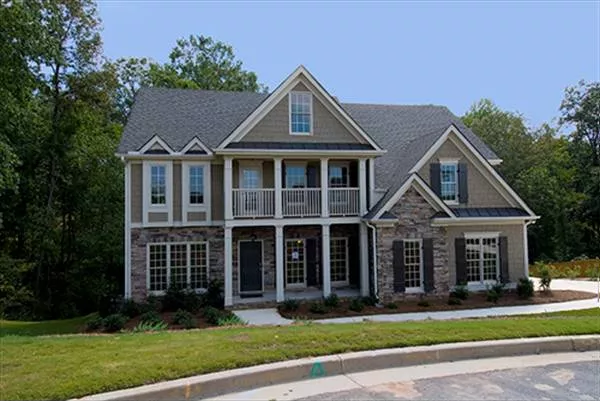

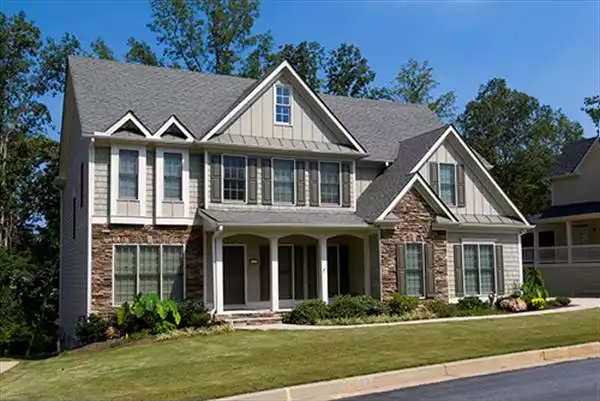

Front Photo 3

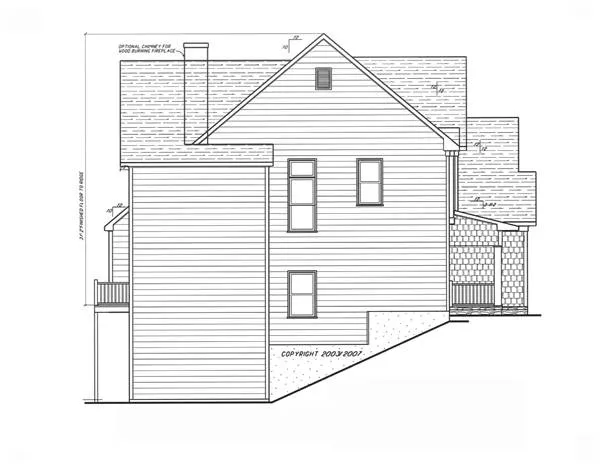

Left Elevation

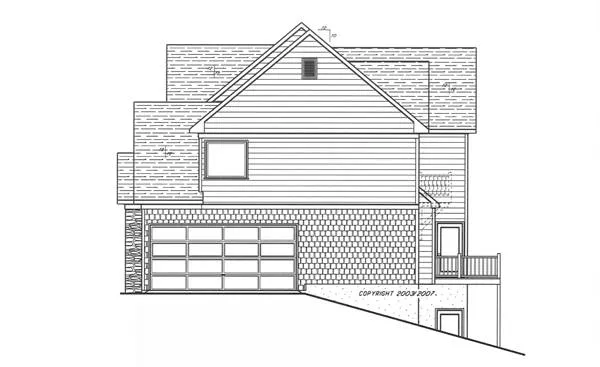

Right Elevation

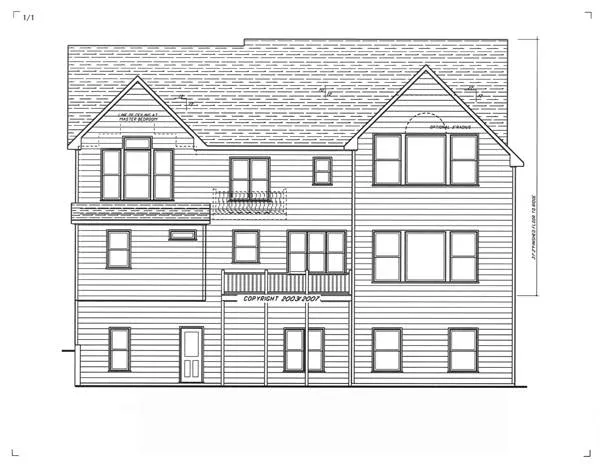

Rear Elevation

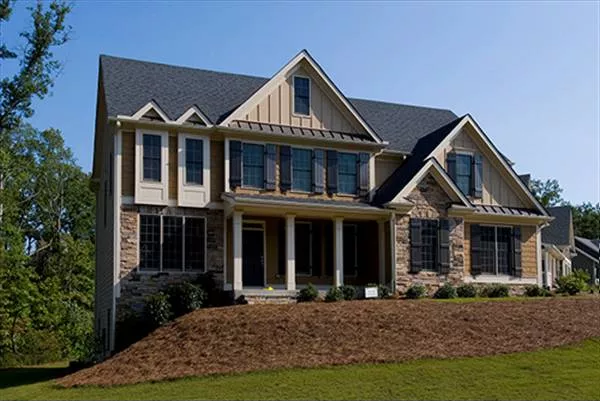

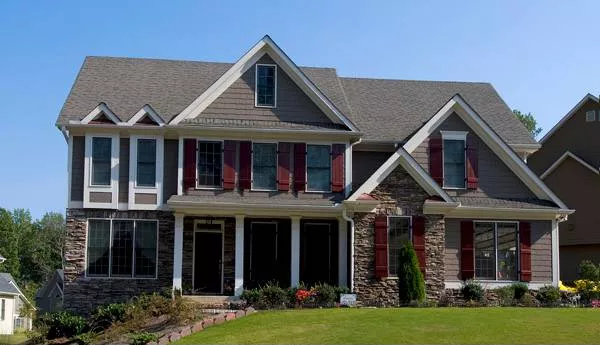

Front Photo 1

Front Photo 2

Front Photo 4

Rendering

View All 8 Images | Photographs may reflect modified home

Sq Ft

3,107 FT²

From

$1,325.00

Beds

Baths

Stories

Garage

Depth

50'

Width

52'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

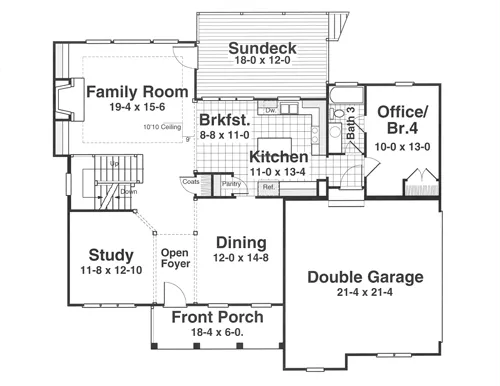

First Floor

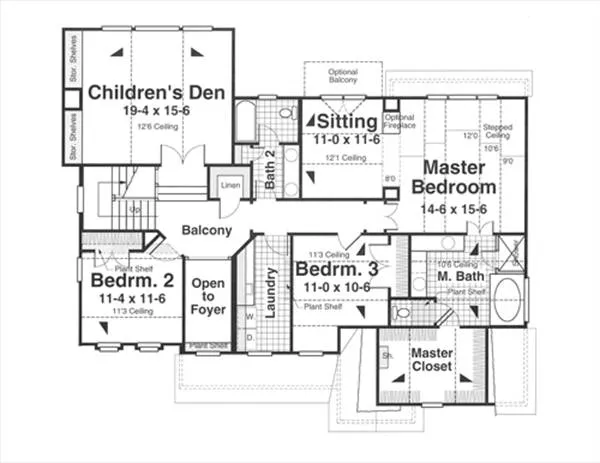

Second Floor

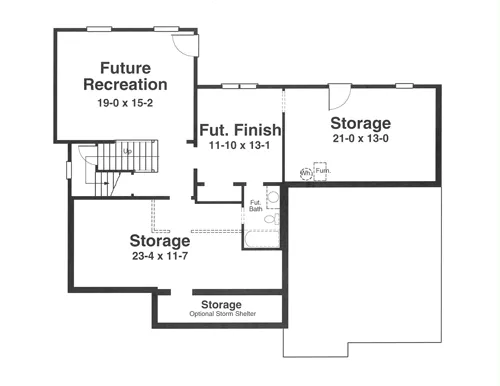

Lower Level

First Floor

Second Floor

Lower Level

About This Plan

A fabulous family room with eleven foot ceiling dominates this plan's first floor. A sweeping U-shaped staircase leads to the second floor where a wonderful children's den resides above the family room. Steps lead to this room accommodating the high ceiling of the room below. The twelve foot high ceiling of the den provides additional spaciousness. Two children's bedrooms are located upstairs. The master suite boasts a three sided fireplace allowing it to be used by both sitting area and bedroom. The fourth bedroom is located on the main floor, providing privacy to a guest, or functioning as an office.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area

Bedroom features

His and Hers Primary Closets
Primary Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Deck
Front Porch

Foundation Options

Basement
Walkout Basement

Lot Options

Suited for sloping lot
Suited for view lot

Additional features

2 Story Volume
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 2nd Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Rec Room
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached
Side-entry
With Living Space

3,107 Ft

Total Heated

1,384 Ft

1st Floor

1,723 Ft

2nd Floor

1,076 Ft

Lower Floor

Bedrooms

Bathrooms

Garage

Stories

52' 0"

Width

50' 0"

Depth

31' 2"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

12/12

Secondary Roof Pitch

12/12

Gable Roof Pitch

12/12

Dormer Roof Pitch

3/12

Porch Roof Pitch

Single

Dwelling Number

Unheated Living Space

503 Ft

Garage

416 Ft

Storage

108 Ft

Porch

216 Ft

Deck

Exterior Styles

Colonial

Southern

Traditional

Collections

Luxury

Primary Suites

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$850

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$850

$1,325

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,325

$1,450

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,450

$1,988

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,988

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

Note: Contact Designer for PDF. Plan is in progress

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
