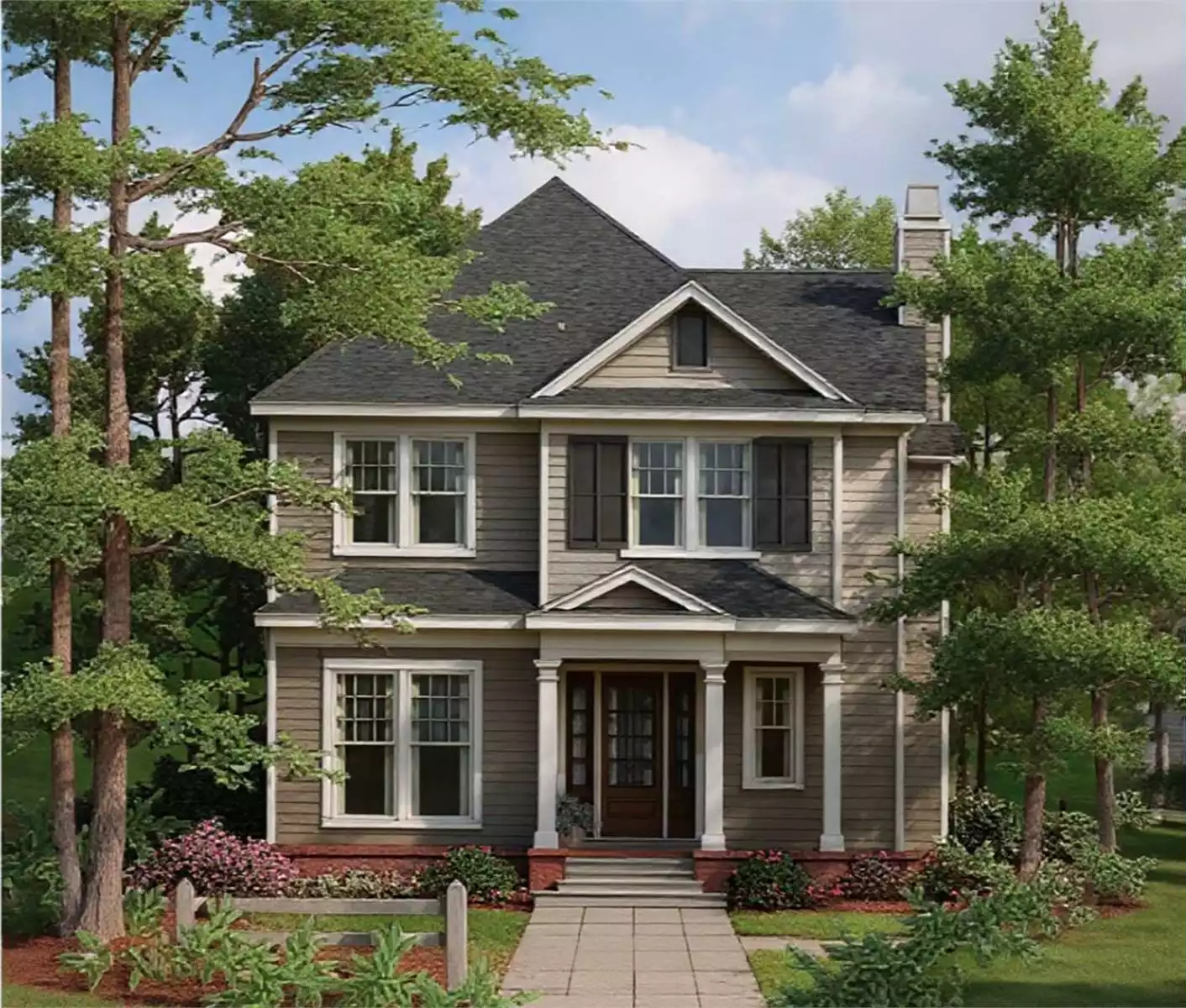

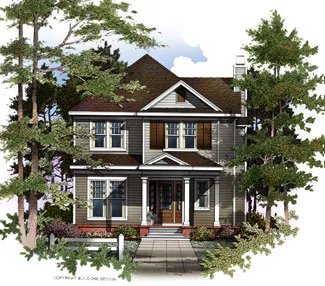

See all 2 photos (photographs may reflect modified homes)
© copyright by designer

Mouse over photo to pause

House Plan 8411: Harborview

Entering the Foyer, the Living Room and Dining Room both have volume ceilings. A flex room opens off the Foyer. The Kitchen pass through allows the cook to participate in all activities. Upstairs, the Master Suite has all the amenities including access to a private second story covered Porch.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,057
Beds
2
Baths
3.0
Stories
2
Garages
2
Width
31' 10"
Depth
77' 10"
1st Floor
1,233
2nd Floor
824
Garage
480
Porch
202
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Vellum
$1000
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $1000
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

Floor Plan

Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 2
Bathrooms: 3.0
Garage: 2
Stories: 2
Exterior Style
Cottage
Traditional
Dimensions
Width: 31' 10"
Height: 30' 6"
Depth: 77' 10"
Heated Living Space
Total Sq. Ft: 2,057
1st Floor: 1,233
2nd Floor: 824
Unheated Living Space
Garage: 480
Porch: 202
Ceiling
Upper Ceiling Ft: 9
Main Ceiling Ft: 10
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Guest Suite
Guest Suite
Walk-in Closet
Walk-in Closet
Kitchen Features
Kitchen Island
Kitchen Island
Walk-in Pantry
Walk-in Pantry
Additional Room Features
2 Story Volume
2 Story Volume
Dining Room
Dining Room
Fireplace
Fireplace
Foyer
Foyer
Home Office
Home Office
Open Floor Plan
Open Floor Plan
Garage Location
Rear
Garage Features
Attached
Attached
Lot Features
Suited for narrow lot
Suited for narrow lot
Roof Pitch
Primary: 9/12
Secondary: 6/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Complete structural details on all plans
  • Full structural details on all plans
  • Best plan price guarantee
  • Free Modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • House plans delivered in minutes
  • 100% satisfaction guarantee
