Sq Ft
1,584 FT²

Bed
3

Bath
2

Stories
1

Garage
2

Depth
74'

Width
46'

On Sale
$850.00
$1,000.00

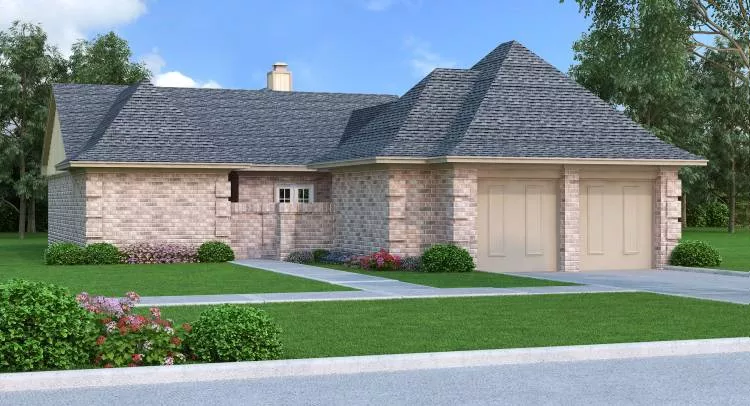

Front Rendering

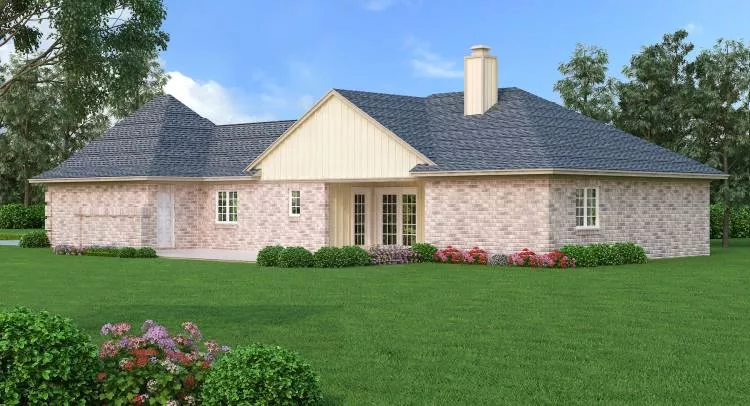

Rear - Right Side Rendering

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,584 FT²

From

$850.00

Bed

Bath

Stories

Garage

Depth

74'

Width

46'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

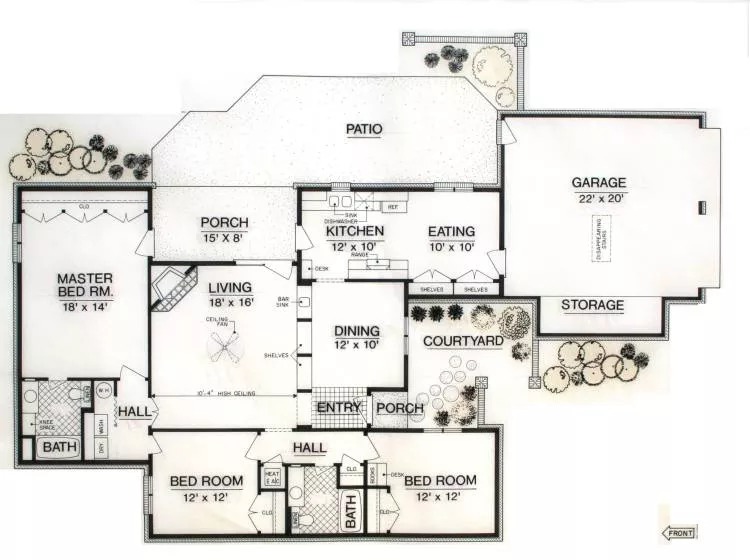

Floor Plan

About This Plan

Designed for narrow lots, this traditional style home is also well suited for patio home developments. One side of the house is windowless so that it can be placed on the property line for zero lot line developments. All of the windows are oriented to the opposite side which yields maximum privacy in a patio home development. This plan is designed for super energy savings but with minimal cost of construction and it features 2x6 exterior walls. The living room has 10 high volume ceilings, glass door access to the side porch and patio, built-ins, a wet bar and a wood burning fireplace. The kitchen is nearby and features a built-in desk and glass door access to the porch and patio, ideal for outdoor grilling and dining. The master is king size and has an enormous closet wall with 3 separate closets. The adjoining bath is functional and has a built-in dressing cabinet. The two secondary bedrooms are large and share a bath conveniently located between the two bed rooms.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area

Exterior features

Courtyard

Foundation Options

Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Fireplace
Formal LR
Storage Space

Garage Location

Front

Garage Options

Attached
Front-entry

2,220 Ft

Total Structure

1,584 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

46' 0"

Width

74' 0"

Depth

20' 0"

Height

8' 0"

Main Floor Ceiling

2x6

Framing

Stick

Roof Framing

7/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

440 Ft

Garage

56 Ft

Storage

140 Ft

Porch

Exterior Styles

Ranch

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$800

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$800

$1,000

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,000

$1,085

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,085

$1,130

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,130

$1,240

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,240

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,240

$1,900

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,900

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
