Sq Ft
2,230 FT²

Beds
3

Baths
2.5

Stories
1.5

Garage
2

Depth
55' 4"

Width
40'

From
$1,577.00

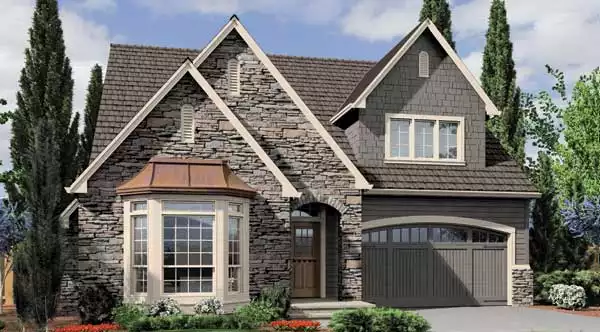

Front Rendering

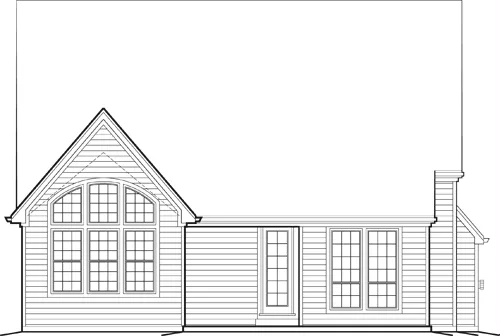

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

2,230 FT²

From

$1,577.00

Beds

Baths

2.5

Stories

1.5

Garage

Depth

55' 4"

Width

40'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

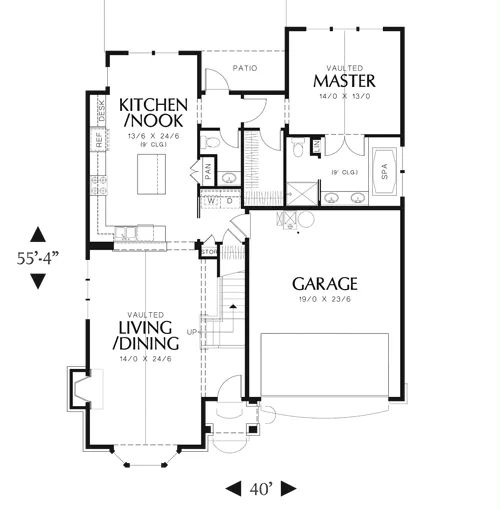

First Floor Plan

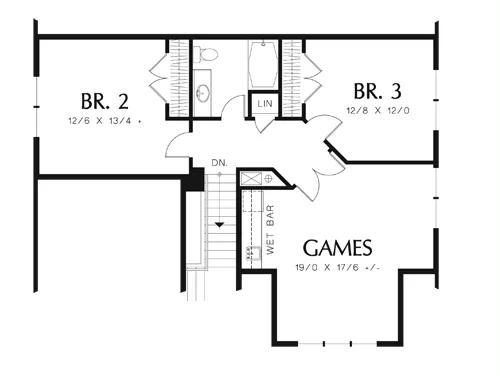

Second Floor Plan

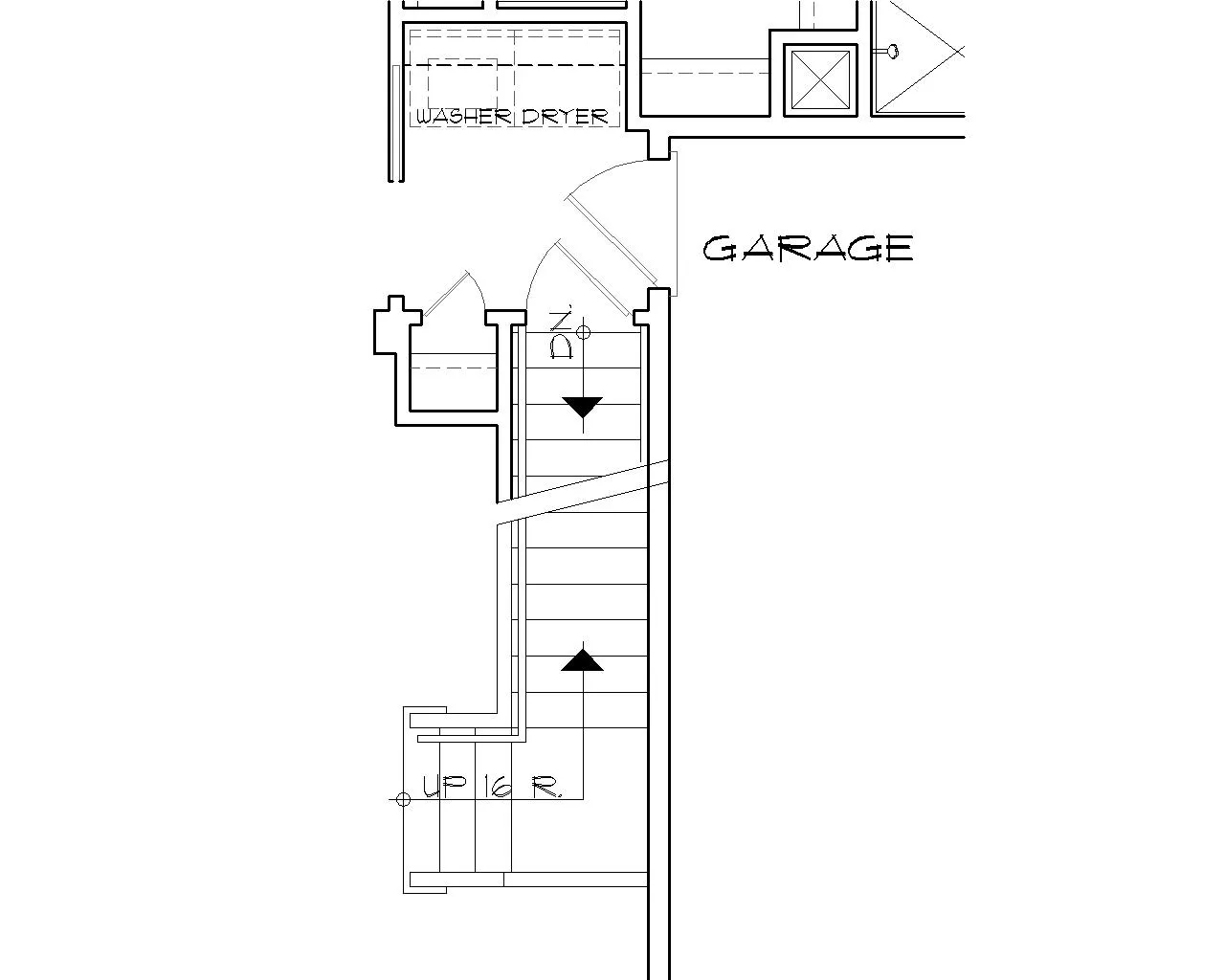

Basement Stair Location

First Floor Plan

Second Floor Plan

Basement Stair Location

About This Plan

Steep rooflines, stone massing, and multipane windows bespeak English country cottage style on this homes exterior. But good looks arent the only thing this plan has to offer. Modern updates make this quaint home comfortable for a family. For example, transoms over the bay window and the front door, and windows on the garage door, draw light to the interiora vital tactic for creating a sense of spaciousness inside this relatively narrow, 40-foot-wide home. In addition, the large living/dining room off the entry is flexible. Set up two groupings of living room furnitureone for you and the other for the kidsor use the space nearest the kitchen as a formal dining area. The eat-in kitchen has a planning desk, a pantry, and an island, and provides space for a table amidst sunny windows.

The efficient master suite is dominated by a view to the back through an arched wall of windows. For morning coffee alfresco, a door to the rear patio from the bedroom easily could be added. Older children will enjoy the solitude of the upper-level bedrooms and the convenient access to a games room with kitchenette, where they can study, play, and hang out with friends.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Rear Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Dining Room
Fireplace
Foyer
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Rec Room

Garage Location

Front

Garage Options

Attached
Front-entry

2,230 Ft

Total Heated

1,379 Ft

1st Floor

851 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

1.5

Stories

40' 0"

Width

55' 4"

Depth

28' 10"

Height

Varies' 0"

Main Floor Ceiling

8' 1"' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

10/12

Primary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

468 Ft

Garage

53 Ft

Patio

Exterior Styles

Craftsman

European

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,577

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,577

$1,777

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,777

$1,827

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,827

$3,154

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,154

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
