Sq Ft
2,638 FT²

Beds
4

Baths
2.5

Stories
2

Garage
2

Depth
34' 8"

Width
69' 4"

From
$1,155.00

EXCLUSIVE PLAN

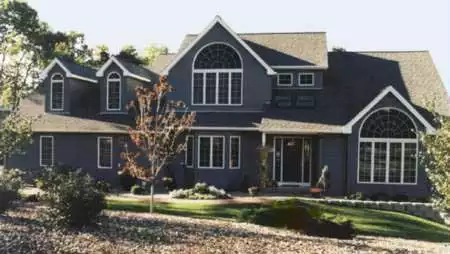

Front Photo #1

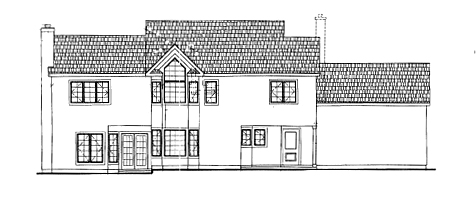

Rear Elevation

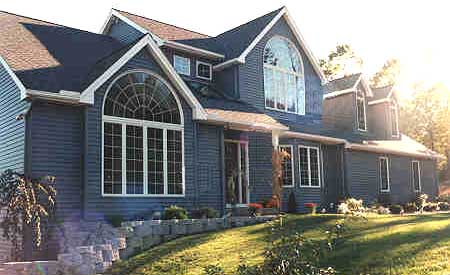

Front Photo #2

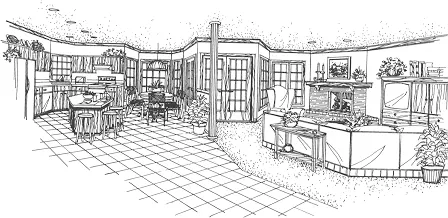

Family Room

View All 4 Images | Photographs may reflect modified home

Sq Ft

2,638 FT²

From

$1,155.00

Beds

Baths

2.5

Stories

Garage

Depth

34' 8"

Width

69' 4"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

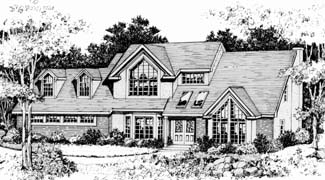

Front Rendering

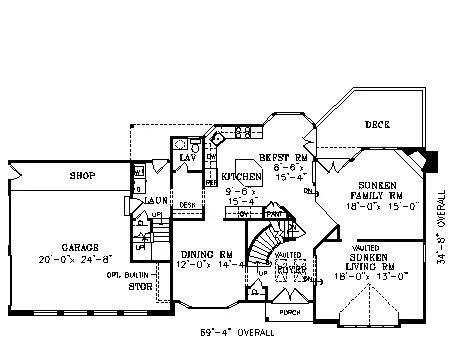

First Floor Plan

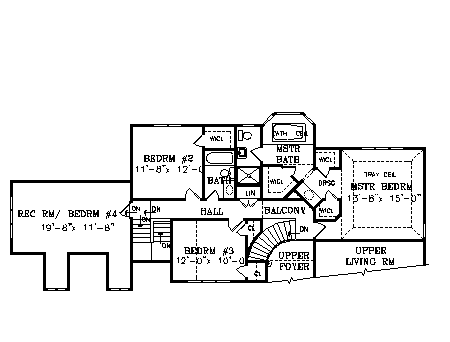

Second Floor Plan

Front Rendering

First Floor Plan

Second Floor Plan

About This Plan

This luxurious home features a rear staircase and dramatic angles. The sunken living room includes a vaulted ceiling. The adjacent sunken family room has a delightful corner fireplace and doors to a rear deck. The enormous island kitchen faces the adjoining breakfast room, with a pair of doors to the deck. This entire informal area is designed wide open with sweeping views of the rear. The master suite has a great,compartmented, master bath with a vaulted ceiling, three walk-in closets and a dressing alcove.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Deck

Foundation Options

Basement
Crawlspace
Slab

Additional features

2 Story Volume
Dining Room
Family Room
Fireplace
Formal LR
Laundry 1st Fl
Loft / Balcony
Mud Room
Rec Room
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached

2,638 Ft

Total Heated

1,371 Ft

1st Floor

1,267 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

69' 4"

Width

34' 8"

Depth

27' 8"

Height

8'-1"' 0"

Main Floor Ceiling

8'-1"' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

8-1/2: 12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

581 Ft

Garage

Exterior Styles

Contemporary

Modern

Collections

Exclusive

Mountain

Plan Package Options

Important info before you buy

Select Plan Package

$875

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$875

$1,155

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,155

$1,265

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,265

$1,340

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,340

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
