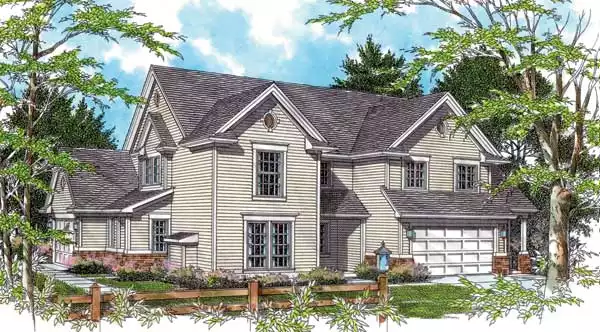

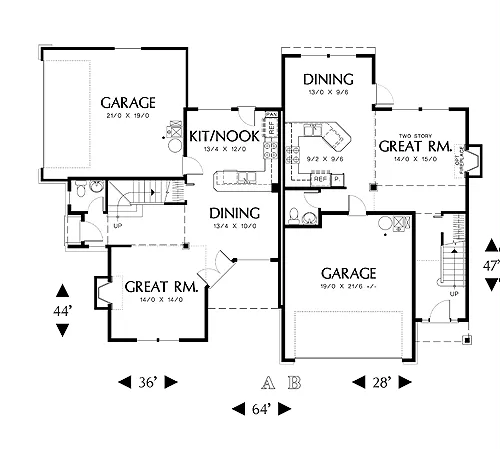

Though its appearance says single-family home, this plan is actually two separate dwellings, each with double garage. The unit on the left has a side entry, opening to a main hall with half-bath and open stairway to the upper level. Its main entry is through recessed double doors with a great room on the left and the dining room and kitchen/nook on the right. The great room features a fireplace and is defined by a decorative column at the hallway. An open counter between the dining room and kitchen allows the family cook to stay involved when entertaining. Second-floor bedrooms include a master suite with private bath and two family bedrooms sharing a bath. The laundry is also on the upper level.

The right-hand unit puts its garage at the front and has a small covered porch protecting the entry. Past the open stair are a two-story great room with optional fireplace, a modified U-shaped kitchen and a dining area. A half-bath sits at the end of the hall. Bedrooms in this unit are also on the upper level, as is the laundry. An open gallery overlooks the great room on one side and entry foyer on the other.

Floor planning in the whole structure maintains maximum privacy.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Peninsula / Eating Bar

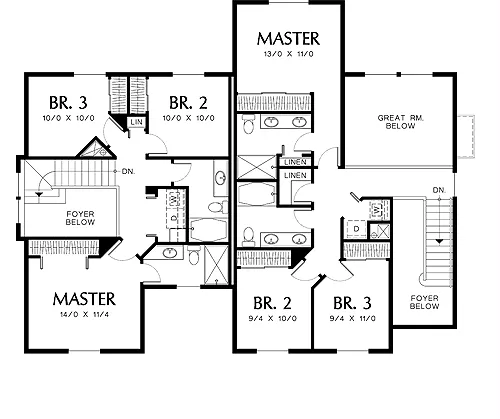

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs

Exterior features

Front Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for corner lot
Suited for narrow lot

Additional features

2 Story Volume
Dining Room
Fireplace
Foyer
Great Room
Laundry 2nd Fl
Open Floor Plan

Garage Location

Front

Garage Options

Attached
Front-entry

2,935 Ft

Total Structure

1,434 Ft

Unit Heated

723 Ft

1st Floor

711 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

36' 0"

Width

44' 0"

Depth

29' 2"

Height

8' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

10/12

Primary Roof Pitch

Duplex

Dwelling Number

None

Bonus Access

Unheated Living Space

428 Ft

Garage

Exterior Styles

Colonial

Traditional

Collections

Affordable

First Home

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$2,194

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,194

$2,394

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,394

$2,444

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,444

$4,388

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,388

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
