Sq Ft
1,700 FT²

Beds
3

Baths
2.5

Stories
1.5

Garage
2

Depth
68'

Width
46'

From
$1,000.00

Front Rendering

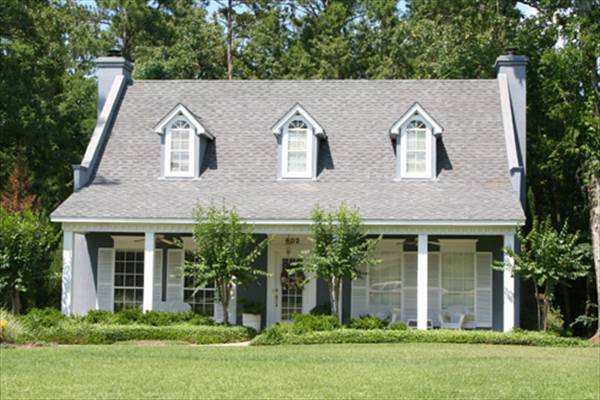

Front Exterior

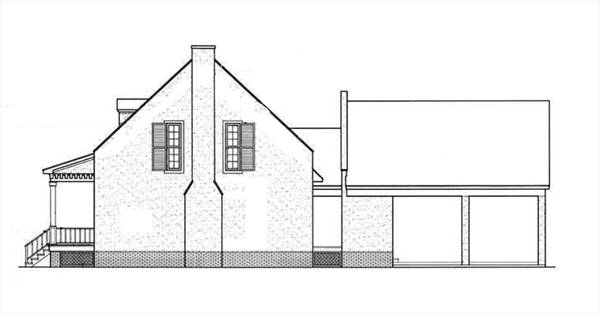

Right Side Elevation

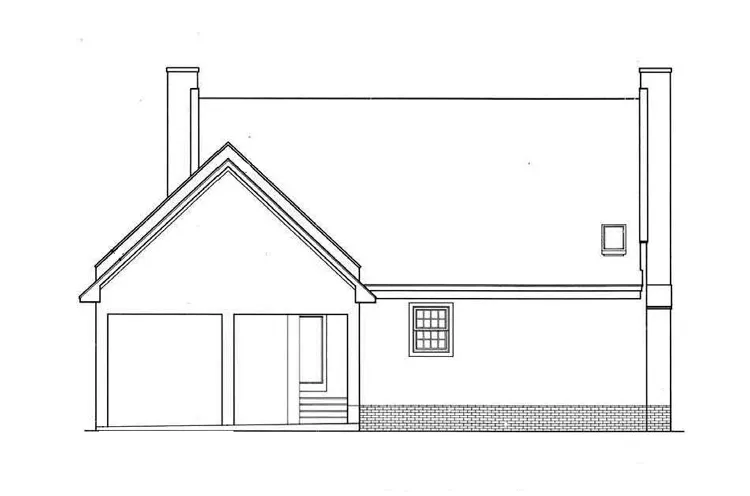

Rear Exterior

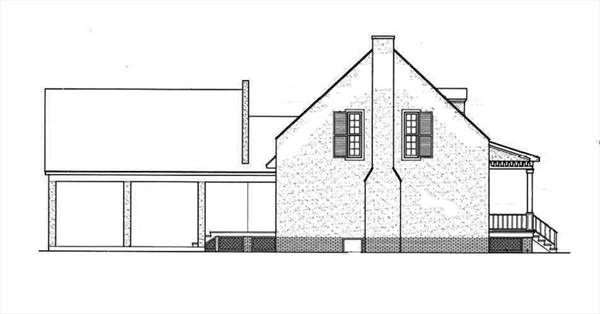

Left side elevation

View All 5 Images | Photographs may reflect modified home

Sq Ft

1,700 FT²

From

$1,000.00

Beds

Baths

2.5

Stories

1.5

Garage

Depth

68'

Width

46'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

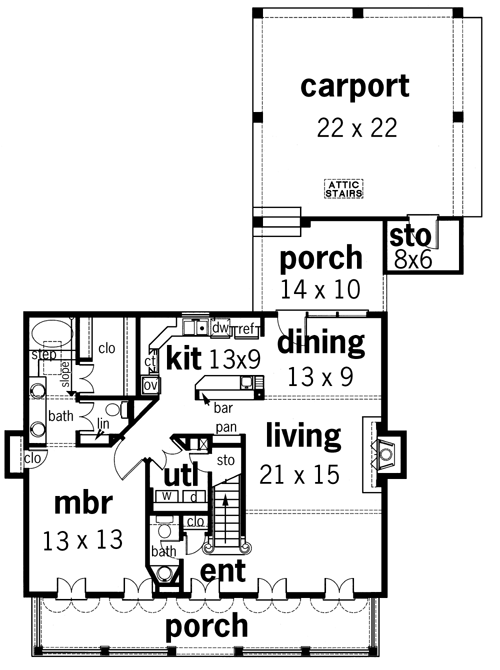

First Floor Plan

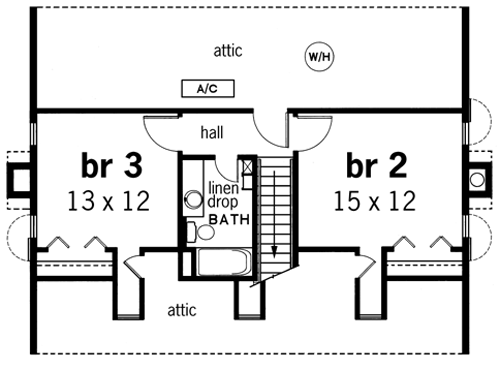

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

This quaint home's delightful styling is obvious, with its triple roof dormers and full-width covered front porch. Inside, 9-ft. ceilings grace the main floor, as the living room, dining room and kitchen merge to maximize space. The living room features a fireplace and three pairs of French doors. The dining room has rear access to a covered porch, which connects the house to the garage. The kitchen's wet bar is centrally located to serve all three rooms. The main-floor master suite has two pairs of French doors leading to the front porch. The master bath includes a raised marble tub, a dual-sink vanity, a walk-in closet and a sloped ceiling with a sunny skylight. The two bedrooms upstairs share a second full bath. Each bedroom features a quaint dormer to let the light shine in.

FEATURES & DETAILS

Bedroom features

Primary Bdrm Main Floor

Exterior features

Covered Front Porch
Covered Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Laundry 1st Fl

Garage Location

Side

Garage Options

Carport

1,700 Ft

Total Heated

1,160 Ft

1st Floor

540 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

1.5

Stories

46' 0"

Width

68' 0"

Depth

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

11/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

Exterior Styles

Collections

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$800

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$800

$1,000

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,000

$1,085

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,085

$1,130

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,130

$1,240

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,240

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,240

$1,900

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,900

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
