Charming Country Craftsman Ranch Duplex

Covered Rear Porch Featuring Columns and Large Windows

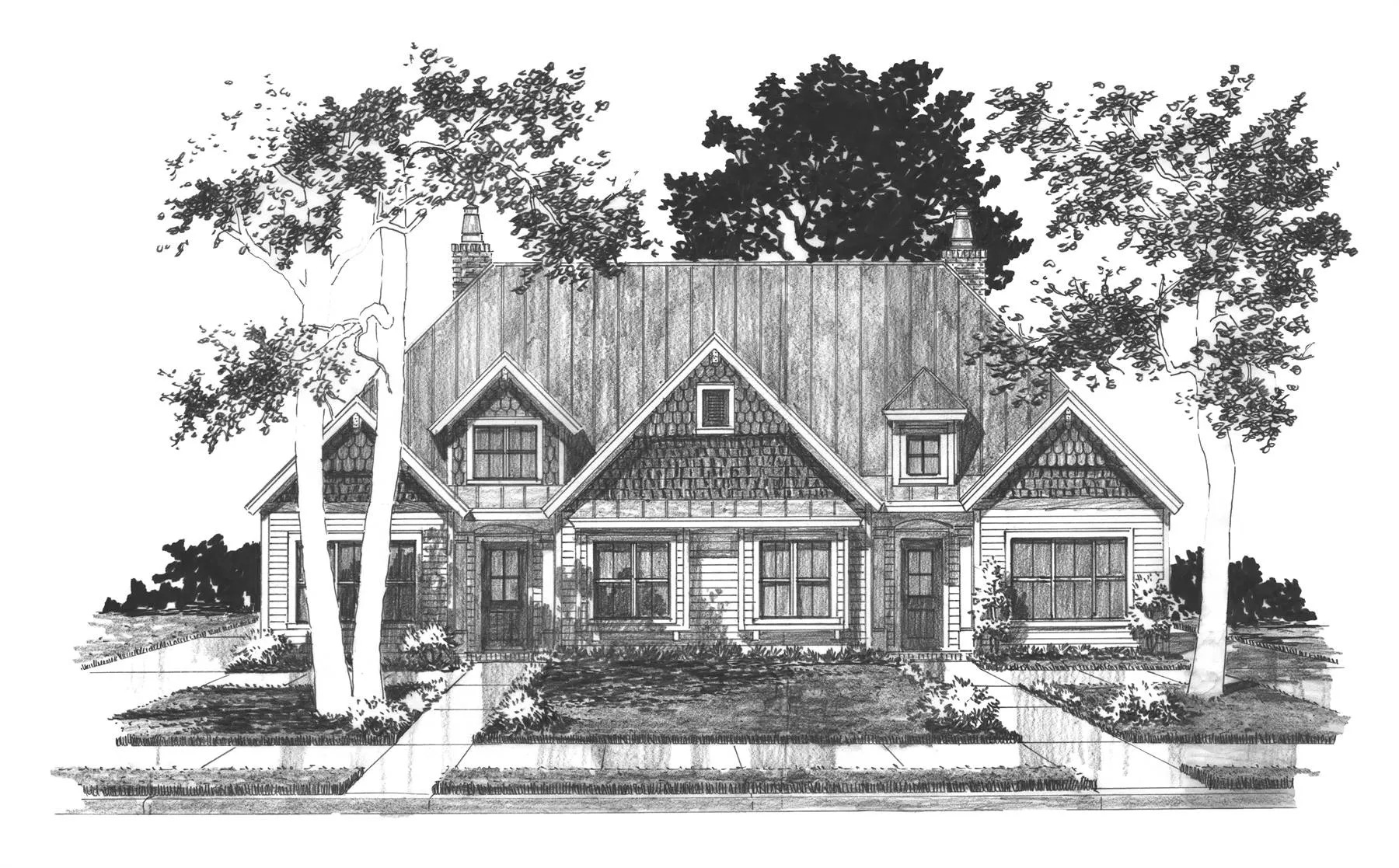

Front View

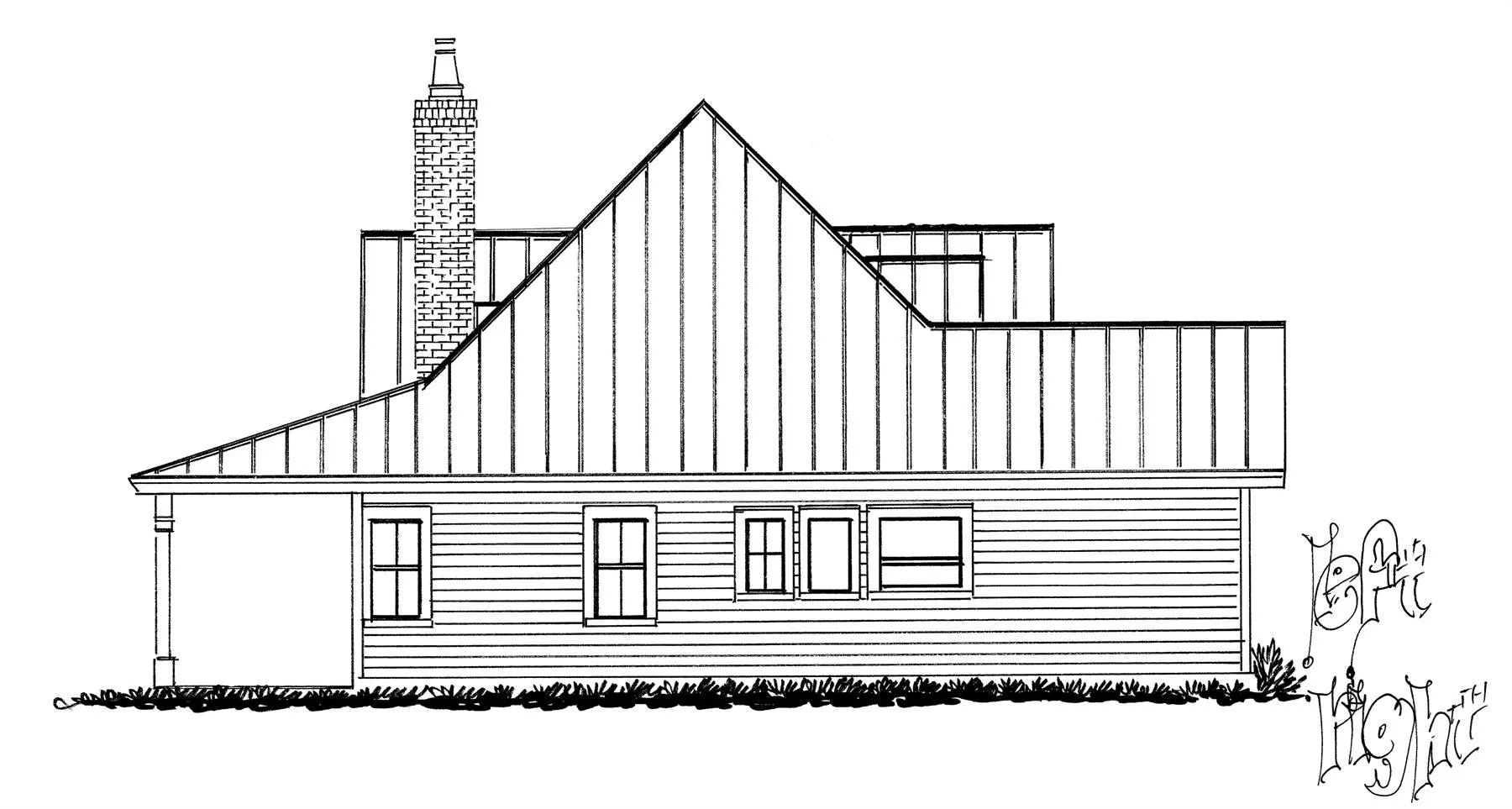

Side View

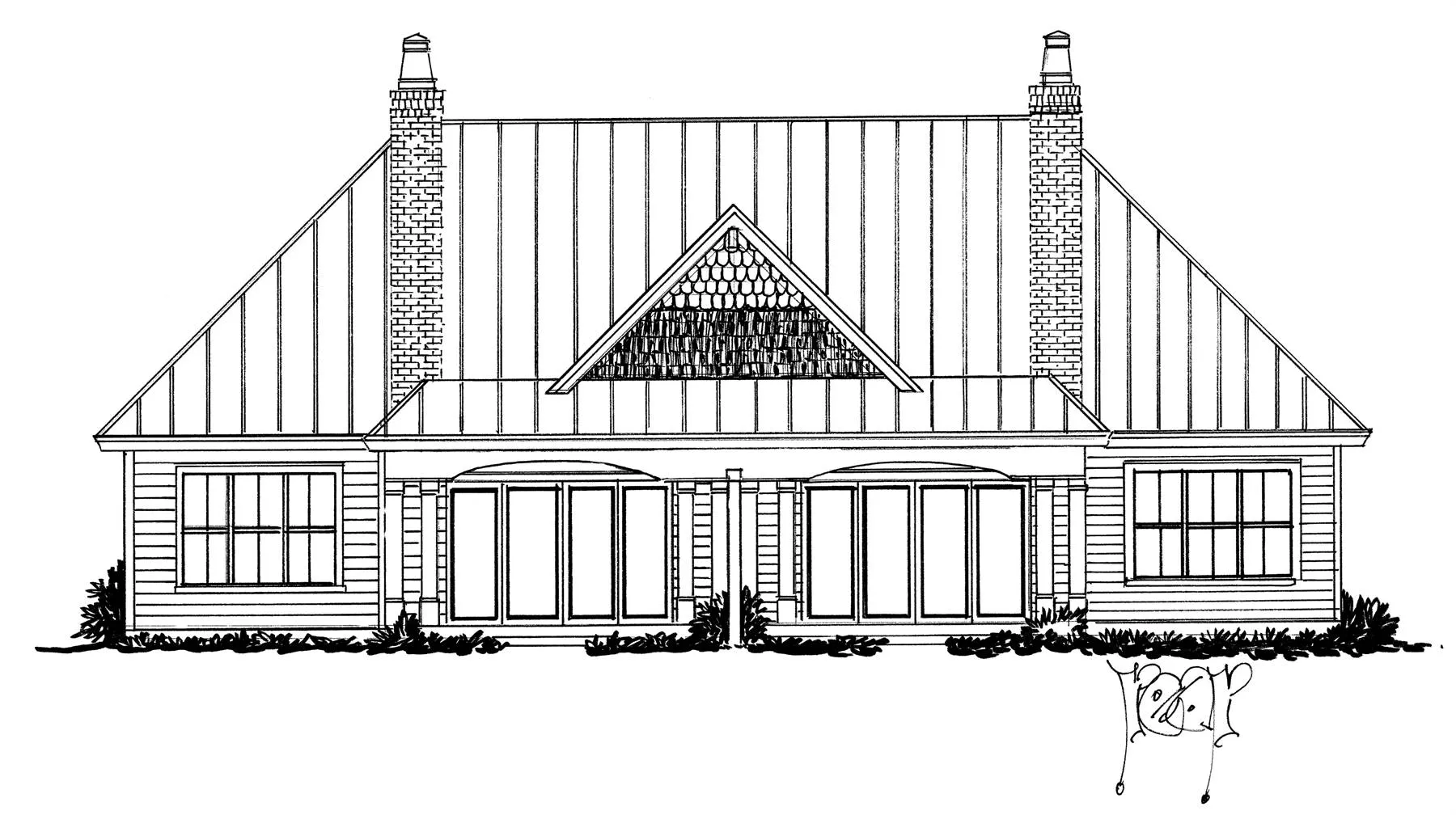

Rear View

View All 5 Images | Photographs may reflect modified home

Sq Ft

1,371 FT²

From

$1,450.00

Beds

Baths

Stories

Garage

Depth

58'

Width

64' 6"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

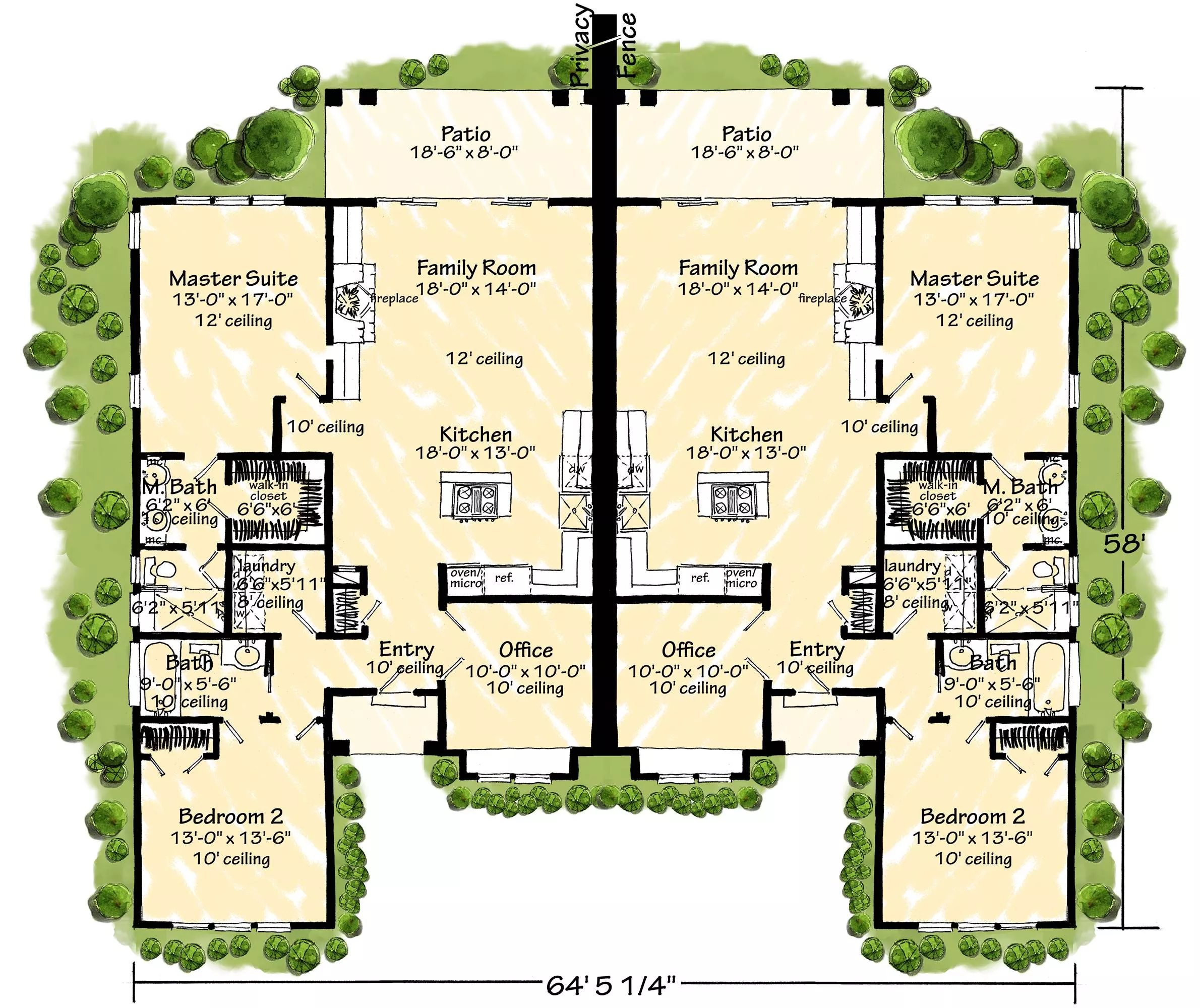

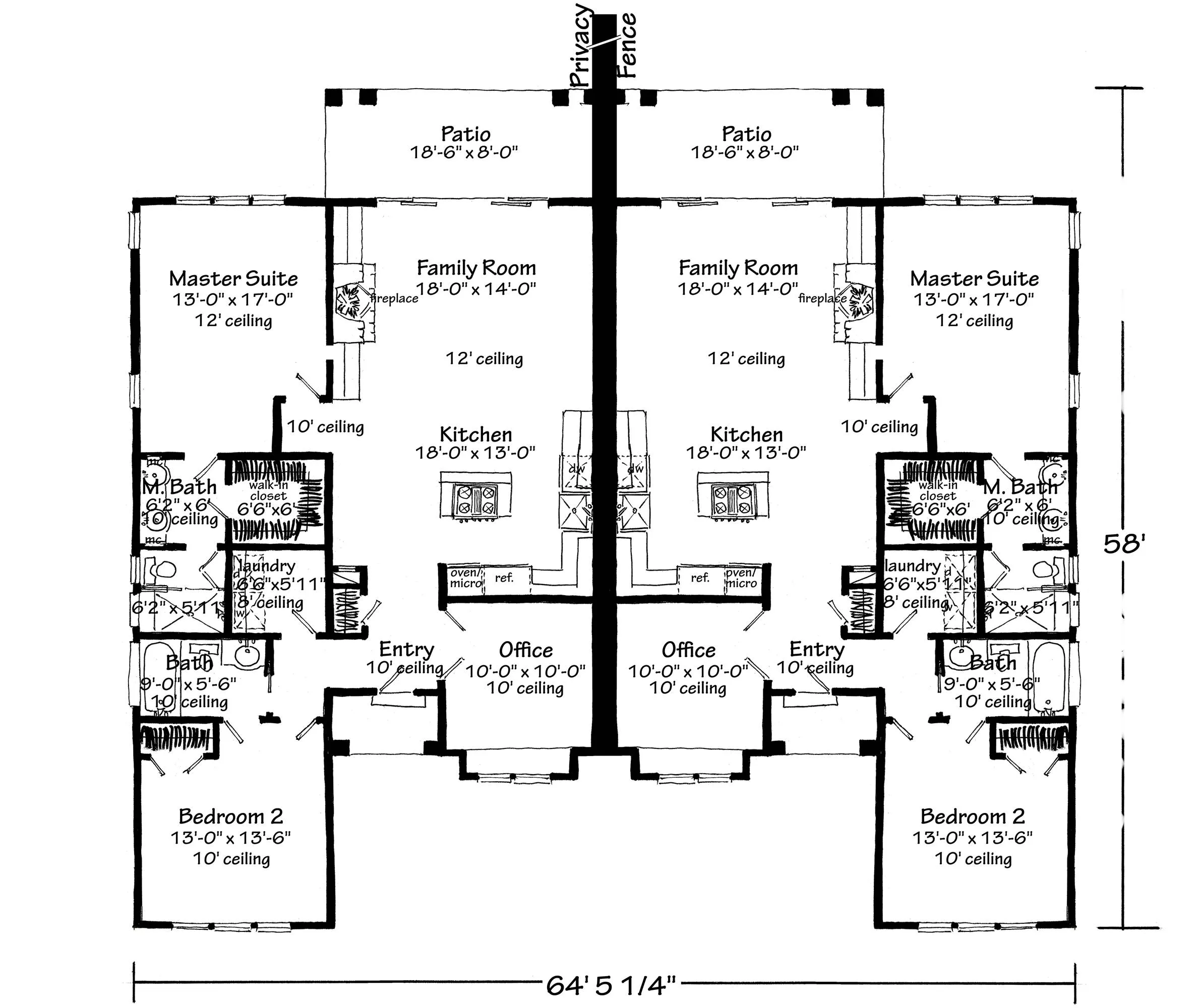

Click to Zoom In on Floor Plan

1st Floor

About This Plan

House Plan 3140 is a wonderful one-story duplex with traditional appeal and a neat 2,742-square-foot structure divided in half to form two mirror image units. Each offers open living, two bedrooms, two bathrooms, and an office. When you enter, you'll find the office and a bedroom, hall bath, and laundry room on opposite sides of the foyer. The master suite is placed in the back corner and has its own four-piece bathroom and a walk-in closet. Both bedrooms are placed on the outside wall for better privacy between the units! The living spaces are completely open from the L-shaped island kitchen to the family room anchored by a fireplace. If you'd like to spread out more, just look to the slideaway patio doors. House Plan 3140 would make a great home to live in and rent out!
