Recently Viewed Plans | Advanced Plan Search

Sq Ft
5,161 FT²

Bed
4

Bath
4.5

Stories
2

Garage
3

Depth
60'

Width
86'

On Sale
$2,300.95
$2,707.00

Front Rendering

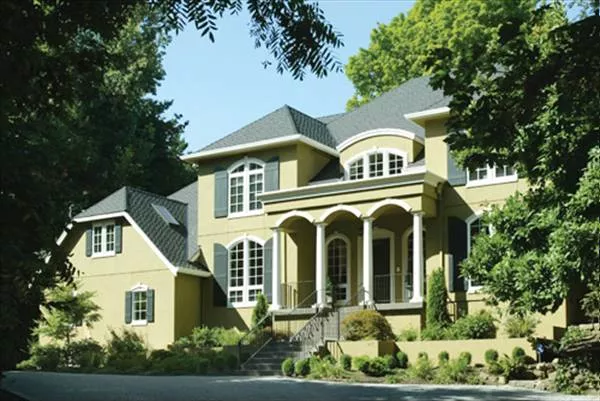

Front Exterior

Rear Elevation

View All 3 Images | Photographs may reflect modified home

Sq Ft

5,161 FT²

From

$2,300.95

Bed

Bath

4.5

Stories

Garage

Depth

60'

Width

86'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

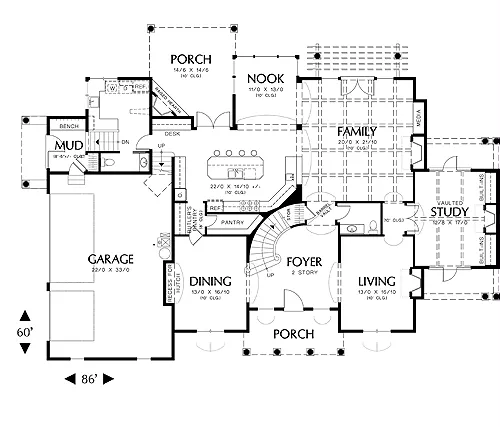

First Floor Plan

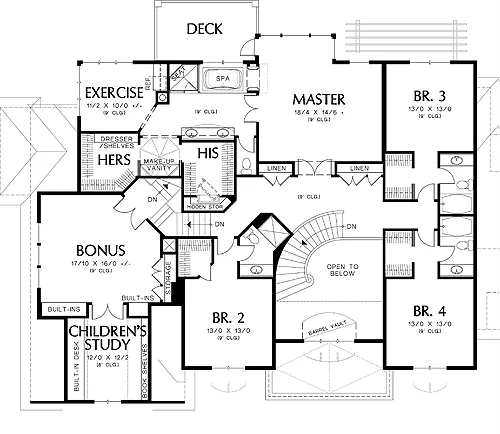

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

Nearly estate-sized, this elegant plan is designed to meet the demands of a site that slopes slightly to one side. The main entry is spectacular, with a French door flanked by tall arched windows. The entry foyer is a classic with curved staircase and doorways to the formal living and dining rooms. The living room has a fireplace; the dining has a recessed area for a hutch.
The rear family room is massive and has a box-beam ceiling, a fireplace and a media center. It functions well with the nearby kitchen and nook, which open to a covered porch with outdoor fireplace. A butlers pantry and a walk-in food pantry are nice touches in the kitchen. The laundry and mudroom, plus a half-bath, are near the entry to the garage. A study is located on the far right side of the main level and has a vaulted ceiling and fireplace with built-ins.

The upper level holds wonderful elements: a bonus room, a skylit childrens study, three family bedrooms with private baths, and a luxuriously appointed master suite with private deck and his and hers closets. Note the exercise room in the master suite.

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for corner lot
Suited for view lot

Additional features

2 Story Volume
Arches
Bonus Room
Dining Room
Exercise Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached
Side-entry

5,161 Ft

Total Heated

2,553 Ft

1st Floor

2,608 Ft

2nd Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

86' 0"

Width

60' 0"

Depth

36' 3"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

10/12

Secondary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

758 Ft

Garage

210 Ft

Porch

140 Ft

Deck

274 Ft

Bonus Room

Exterior Styles

European

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$2,707

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,707

$2,907

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,907

$2,957

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,957

$5,414

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$5,414

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
