House Plan 9635: Emerald Pointe

Perfect vacation home with open floor plan, 4 bedrooms, 3 full baths and 1 half-bath. The main level offers a Master Suite complete with dual vanities, soaking tub, separate shower and walk-in closet. The main level laundry with sink offers extra convenience.  Read more >

House Plan Details

Sq. Ft.
2,515
Beds
4
Baths
3.1
Stories
2
Garages
2
Width
39' 5"
Depth
66' 1"
1st Floor
1,215

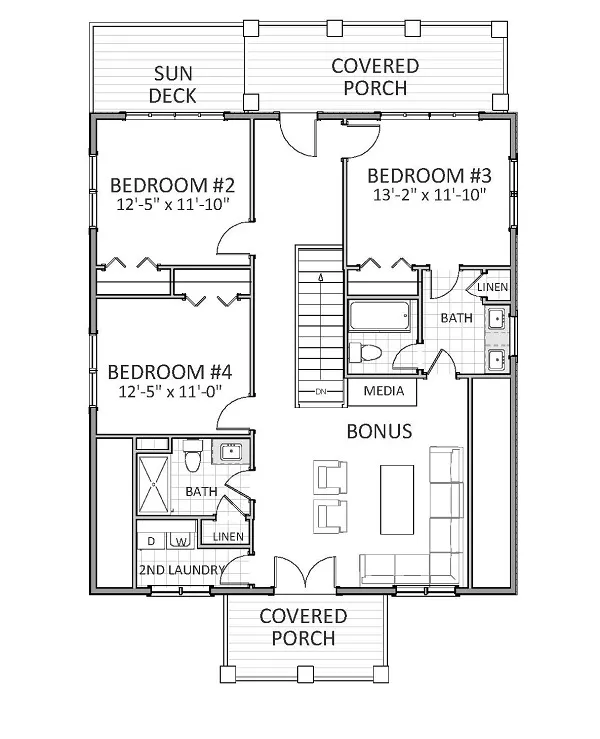

2nd Floor
1,300
Bonus
287
Garage
1,300
Select Plan Package
PDF
$1320
Select Foundation Options
$350
Crawl Space
$0
Optional Add-Ons
Subtotal: $1465

Note: Please allow 2 weeks for the completion and shipment of this plan.

PLAN IMAGES

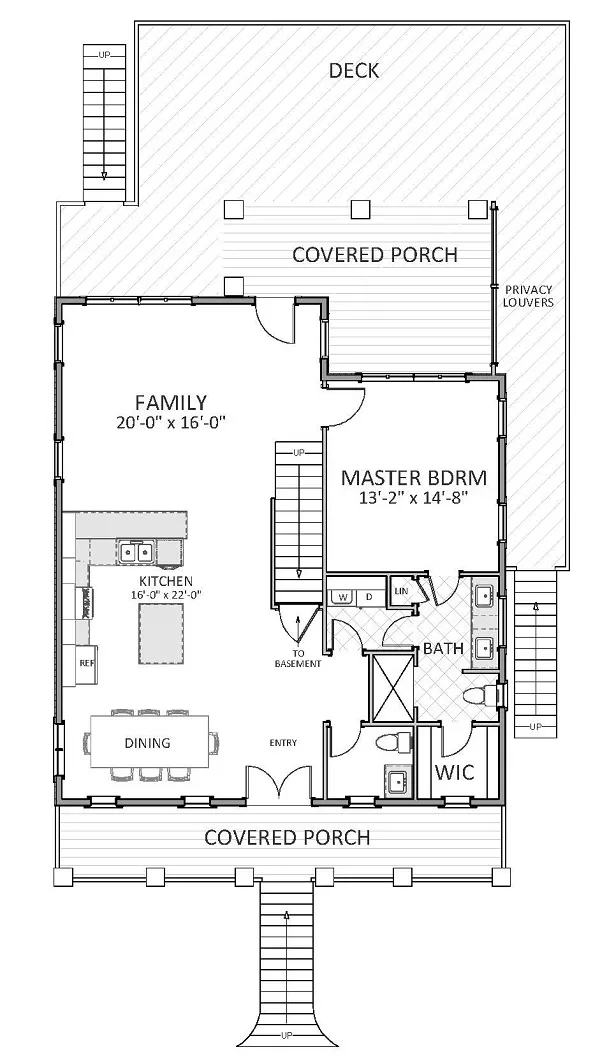

Main Floor

Main Floor
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 3.1
Garage: 2
Stories: 2
Exterior Style
Beach
Cottage
Dimensions
Width: 39' 5"
Height: 44' 3"
Depth: 66' 1"
Heated Living Space
Total Sq. Ft: 2,515
1st Floor: 1,215
2nd Floor: 1,300
Bonus: 287
Unheated Living Space
Garage: 1,300
Porch: 674
Deck: 644
Ceiling
Upper Ceiling Ft: 9
Main Ceiling Ft: 9
Framing Information
Framing: 2x6
Roof Framing: Stick
Bedroom Features
Kitchen Features
Additional Room Features

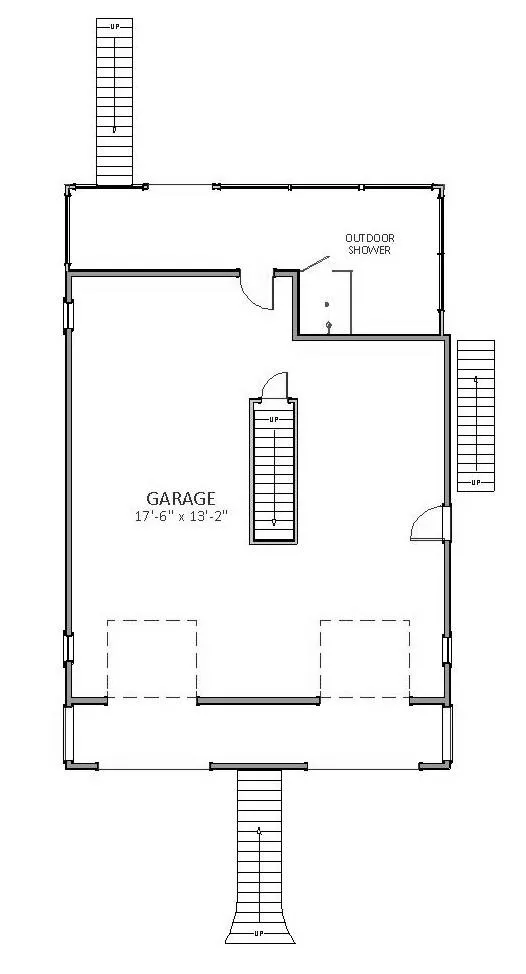

Garage Location
Under
Garage Features
Drive-under
Lot Features
Roof Pitch
Primary: 10/12
