HOUSE PLANS
START AT $1,516
SQ FT
3,095
BEDS
4
BATHS
3.5
STORIES
2
CARS
2
WIDTH
63'
DEPTH
75'
© copyright by designer

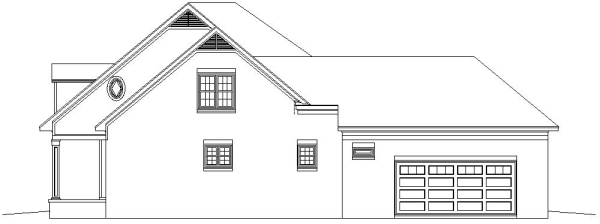

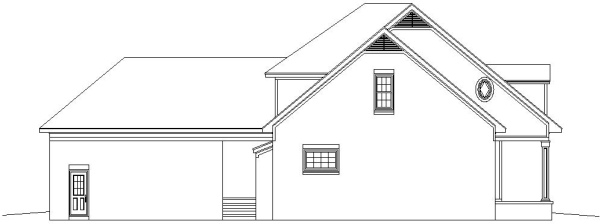

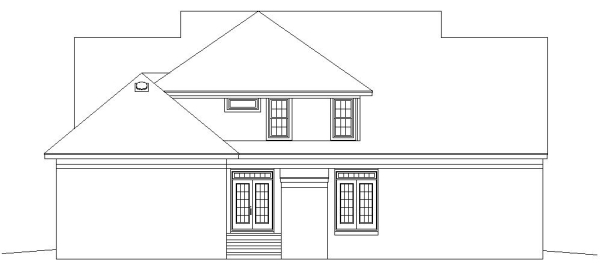

Photographs may reflect modified homes.   View all 4 photos
SQ FT
3,095
BEDS
4
BATHS
3.5
STORIES
2
CARS
2



House Plan 8146: Ellendale

Traditional with unusual appeal, this wide porch with triple dormers above, leads to a foyer flanked by arches to a study and a formal dining room with recessed ceiling. The great room with fireplace and access to the covered back porch rests comfortably next to the full-featured master suite with enormous closet. The delightful kitchen sits conveniently in front of a large utility room with spa...  Read more >
Click to Zoom In on Floor Plan

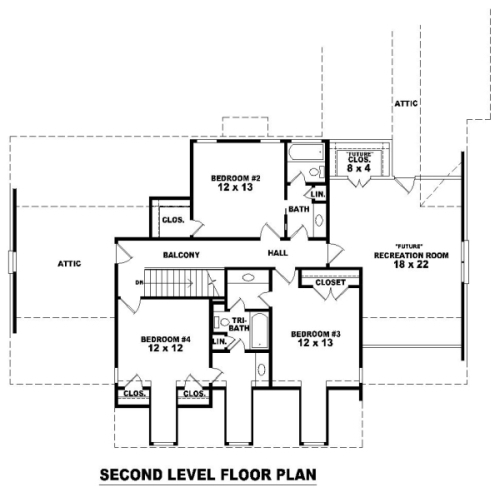

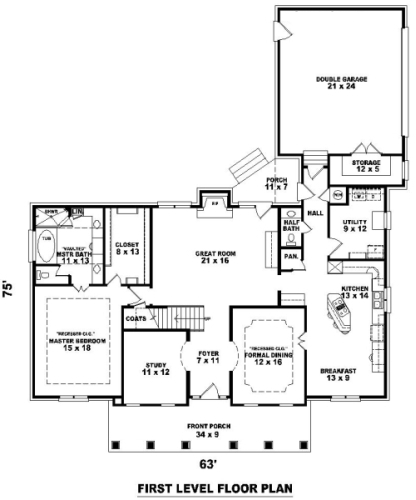

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
$765

1 Printed Set


Note: Plans can not be copied. A 5 set package is recommended in order to provide copies to permit offices and subcontractors.
1 Printed Set
A single set
$1,388

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,516

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$2,016

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,516
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$350
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Additional features
Fireplace
Garage Location
Side
Garage Features
Attached

Hide Plan Features
Details:
View All Plan Details
4,403 Ft
2
Total Structure:
3,095 Ft
2
Total Heated:
2,093 Ft
2
1st Floor:
1,002 Ft
2
2nd Floor:
4
Bedrooms:
3.5
Bathrooms:
2
Garage:
2
Stories:
63' 0"
Width:
75' 0"
Depth:
32' 0"
Height:
9
Main Floor Ceiling:
8
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
10
Primary Roof Pitch:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unheated Living Space
403 Ft
2
Bonus Room:
Exterior Styles
Country
Traditional
Collections
Architects Choice
Colonial
Outdoor Living

Hide Plan Details
Reviews for Plan 8146
11/25/2014
Toni of Monroe, LA
Customer Review:
Good experience with ordering plans. I will be sending pictures soon.
