Sq Ft
1,704 FT²

Beds
3

Baths
2.5

Stories
1

Garage
2

Depth
50'

Width
71'

From
$1,000.00

Front Rendering

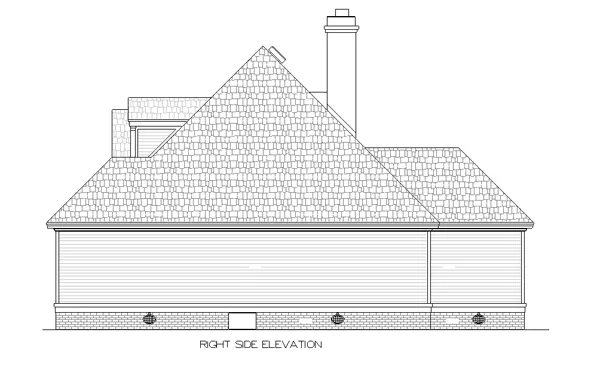

Right Side Elevation

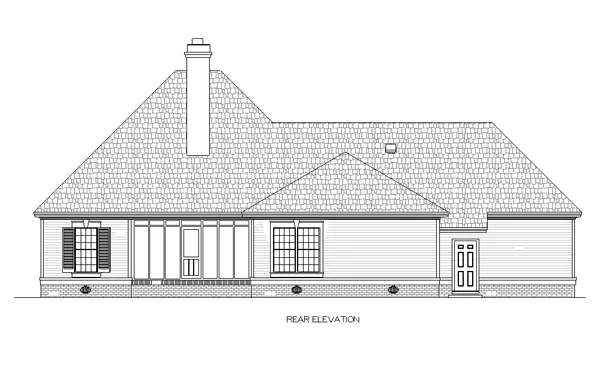

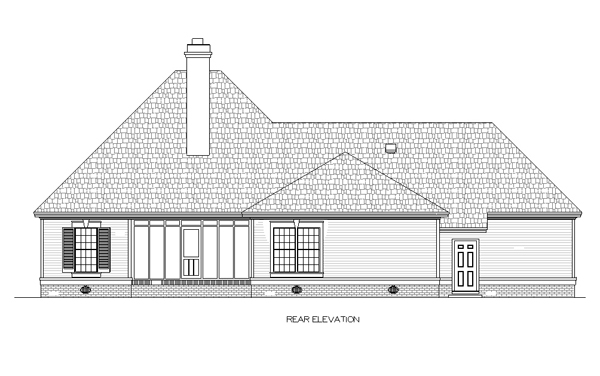

Rear Elevation

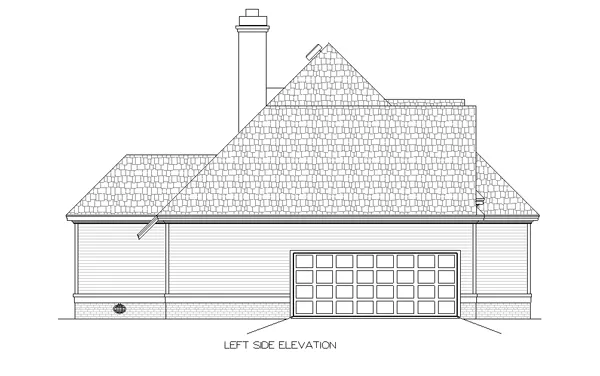

Left side elevation

View All 4 Images | Photographs may reflect modified home

Sq Ft

1,704 FT²

From

$1,000.00

Beds

Baths

2.5

Stories

Garage

Depth

50'

Width

71'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

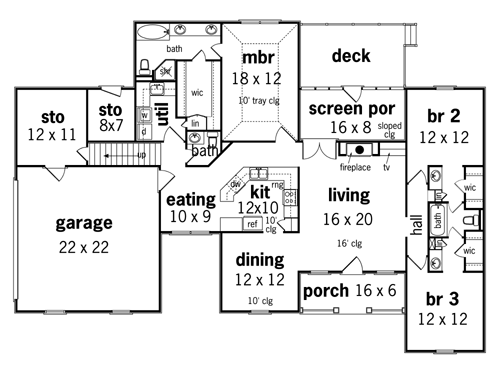

First Floor Plan

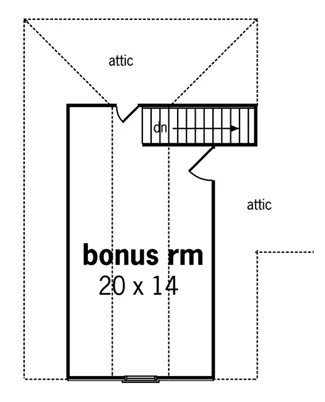

Bonus Room

First Floor Plan

Bonus Room

About This Plan

The front door of this Southern beauty opens into a gracious living room with 16 high ceilings and a fireplace flanked by a built-in entertainment center on one side and a pair of French doors on the opposite side. The French doors leads to a combo of outdoor living spaces consisting of a screen porch with vaulted beamed ceilings and an adjoining deck. The secondary bedrooms are designed with private dressing rooms, walk-in closets and linen closets. Compare the room sizes with other equal size homes and you will find them to be much larger than usual because of the efficient use of space. The master suite has a 10 tray ceiling and a fully appointed bath with dual lavatories, a separate shower and a large soaking tub. The master walk-in closet is a whopping 6 6 x 10 and has a large linen storage with a soiled clothes hamper that opens to the utility room that allows the owner to deposit soiled clothes in the master and pick them up in the utility room ready for washing. Speaking of the utility, it is conveniently located near the garage entry and has loads of counter space and a built-in laundry sink. The well-positioned stairwell leads to a future room perfectly sized for a game room or home office.

FEATURES & DETAILS

Bedroom features

Primary Bdrm Main Floor

Exterior features

Covered Front Porch
Rear Porch
Screened Porch/Sunroom

Foundation Options

Crawlspace
Slab

Lot Options

Suited for corner lot

Additional features

Laundry 1st Fl

Garage Location

Side

Garage Options

Attached
Side-entry

2,628 Ft

Total Structure

1,704 Ft

Total Heated

Bedrooms

2.5

Bathrooms

Garage

Stories

71' 0"

Width

50' 0"

Depth

27' 0"

Height

8-10' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

924 Ft

Garage

364 Ft

Bonus Room

Exterior Styles

Cape Cod

Country

Ranch

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$800

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$800

$1,000

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,000

$1,085

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,085

$1,130

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,130

$1,240

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,240

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,240

$1,900

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,900

Need To Reverse Plan? (Optional)

$125

Readable Reverse

Reverse house plans with readable text and dimensions

$125

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
