HOUSE PLANS
START AT $845
SQ FT
2,498
BEDS
3
BATHS
3
STORIES
1
CARS
3
WIDTH
71' 2"
DEPTH
85' 2"
© copyright by designer
Photographs may reflect modified homes.   View all 6 images
SQ FT
2,498
BEDS
3
BATHS
3
STORIES
1
CARS
3



House Plan 4937: DELAFIELD II

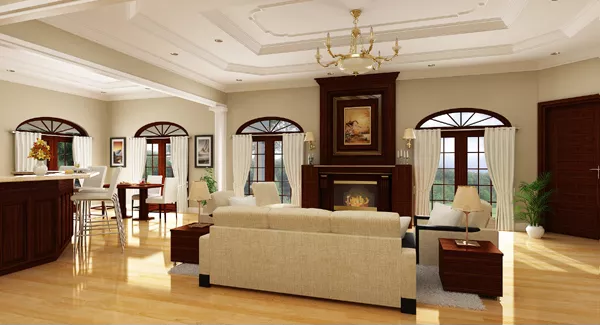

All you need and want is in this lovely three-bedroom, split-bedroom ranch home plan. Spacious, open interiors with volume ceilings are located throughout. The kitchen is ideally located adjacent to the service area and garage while wide open and viewing the fabulous high-ceiling great room. Although on the same side as the other bedrooms, the master suite with two large walk-in closets and deluxe private bath is isolated and separate.  Read more >

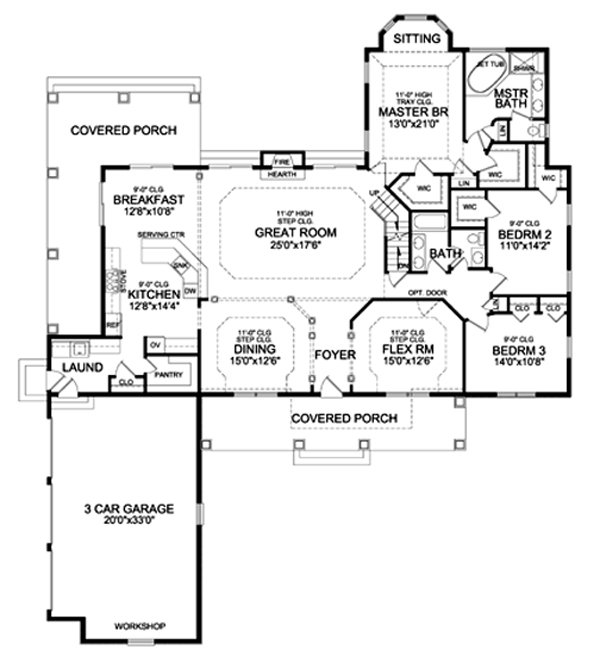

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
PDFs NOW!™
Digital set of plans for bidding purposes only
$845
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
$1,125
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,215
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets
Eight printed sets of house plans
$1,265
Reproducible Vellum Set

Although most changes can be made directly on the blueprints by "red-lining", if the proposed changes are significant, i.e.large additions, structural changes, major roofline or facade changes, this set may be used to make changes via a local professional, or your builder. Although the PDF Construction Set can accomplish the same purpose, some may prefer to make changes by hand drawing, which the Reproducible is suited for. After changes are made you may print up to 10 sets, for the construction of one home only. An online license will be completed during checkout.
Reproducible Vellum Set
A modifiable set for large changes.
$1,275
CAD Single Use

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,145
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$350
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Additional features
Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Mud Room
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings
Workshop
Exterior features
Covered Front Porch
Covered Rear Porch
Wraparound Porch
Garage Location
Side
Garage Options
Attached
Foundation Options
Basement
Crawlspace
Slab

Hide Plan Features
Details:
View All Plan Details
2,498 Ft
2
Total Heated:
3
Bedrooms:
3
Bathrooms:
3
Garage:
1
Stories:
71' 2"
Width:
85' 2"
Depth:
27' 0"
Height:
9-0
Main Floor Ceiling:
8-1
Upper Floor Ceiling:
2x6
Framing:
Stick
Roof Framing:
9/12
Primary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
684 Ft
2
Garage:
264 Ft
2
Porch:
377 Ft
2
Deck:
492 Ft
2
Bonus Room:
Exterior Styles
Cottage
Craftsman
Ranch
Collections
Affordable
Open Floor Plan
Outdoor Living

Hide Plan Details
