HOUSE PLANS
START AT $795
SQ FT
2,282
BEDS
3
BATHS
2.5
STORIES
1
CARS
2
WIDTH
60'
DEPTH
57' 4"
© copyright by designer
Photographs may reflect modified homes.   View all 11 photos
SQ FT
2,282
BEDS
3
BATHS
2.5
STORIES
1
CARS
2



House Plan 4610: DELAFIELD

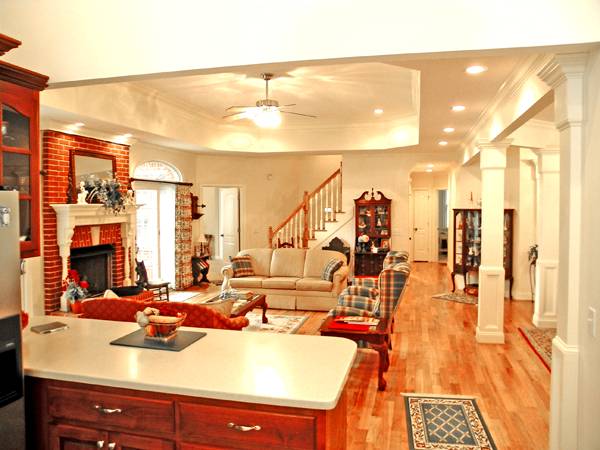

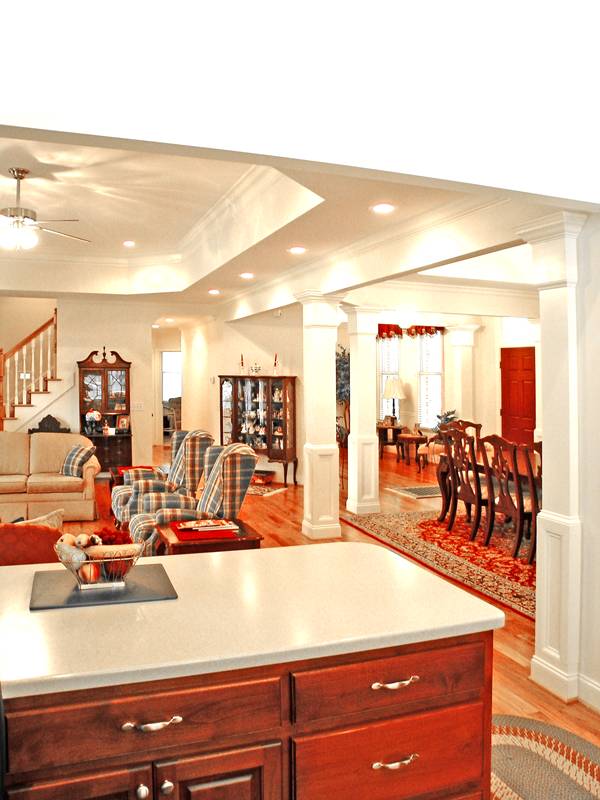

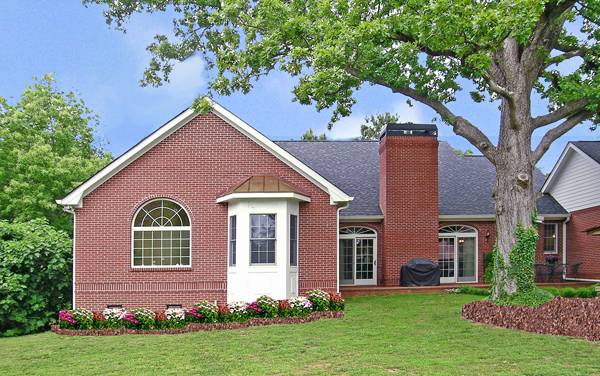

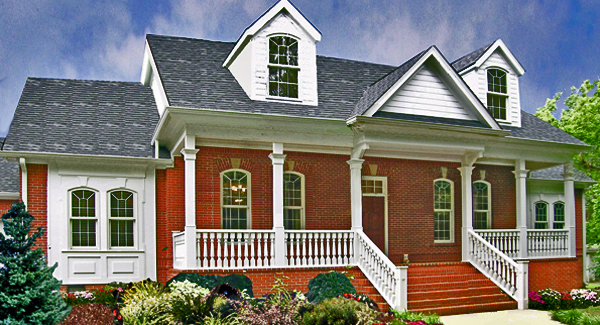

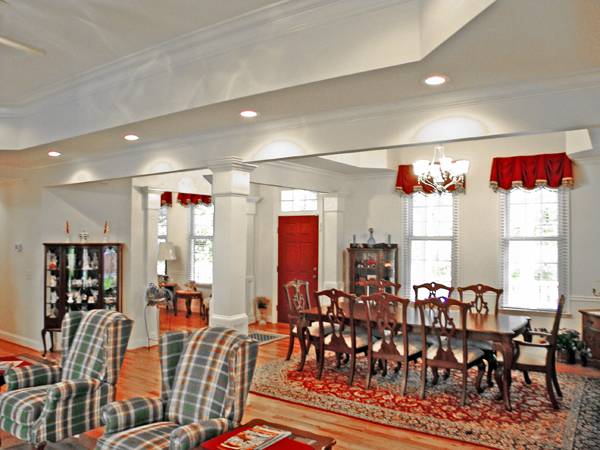

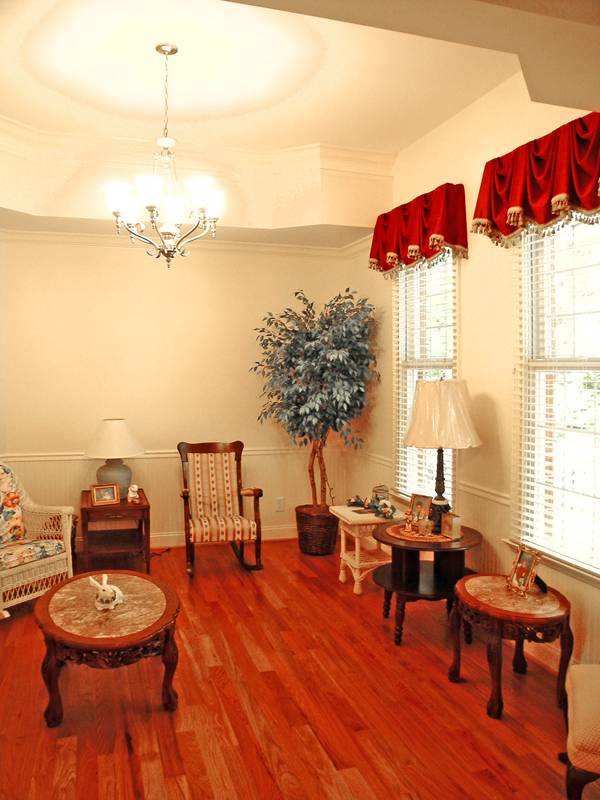

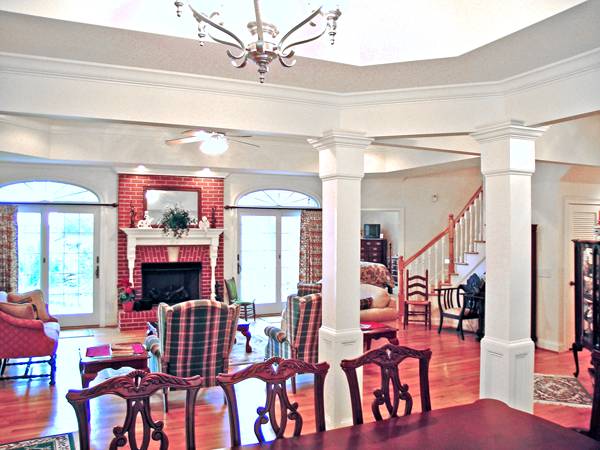

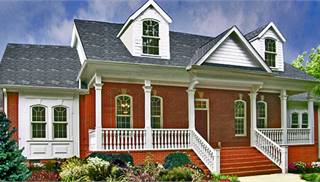

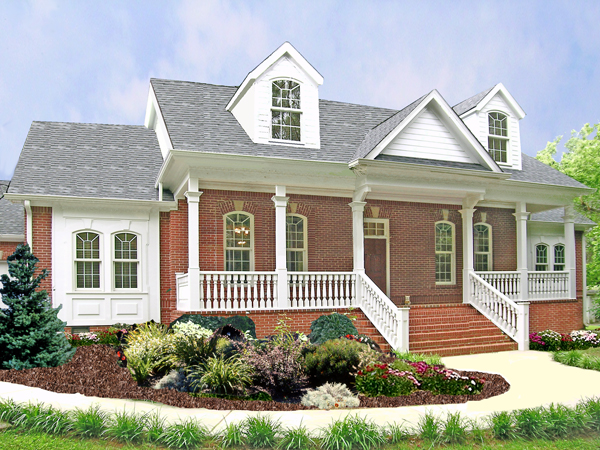

Beautifully trimmed flat bay windows flank each side of a tall covered porch in this formally balanced country style ranch. Tall windows create an elegant appearance to the central brick faced element and also afford plenty of light to the entrance foyer and the flanking 11 foot high living and dining rooms. The grand great room also features an 11 foot high stepped ceiling, fireplace and French doors to the rear.  Read more >

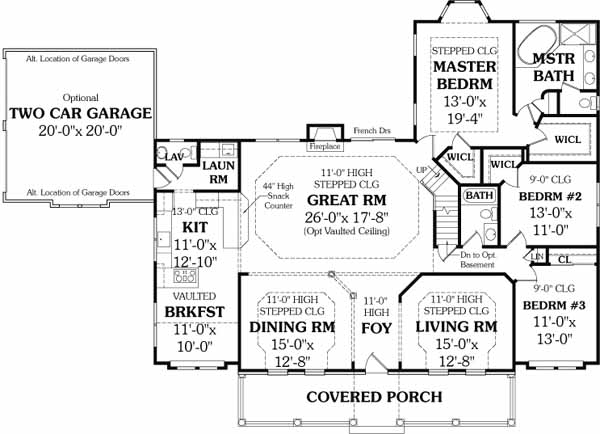

Click to Zoom In on Floor Plan

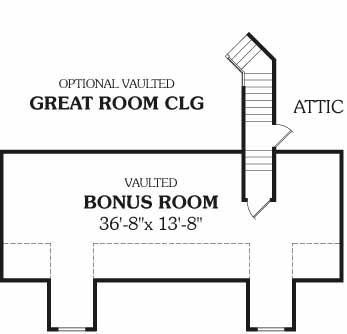

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
PDFs NOW!™
Digital set of plans for bidding purposes only
$795

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
$1,095

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,185

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets
Eight printed sets of house plans
$1,235

Reproducible Vellum Set


Although most changes can be made directly on the blueprints by "red-lining", if the proposed changes are significant, i.e.large additions, structural changes, major roofline or facade changes, this set may be used to make changes via a local professional, or your builder. Although the PDF Construction Set can accomplish the same purpose, some may prefer to make changes by hand drawing, which the Reproducible is suited for. After changes are made you may print up to 10 sets, for the construction of one home only. An online license will be completed during checkout.
Reproducible Vellum Set
A modifiable set for large changes.
$1,245

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,095
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$350
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features

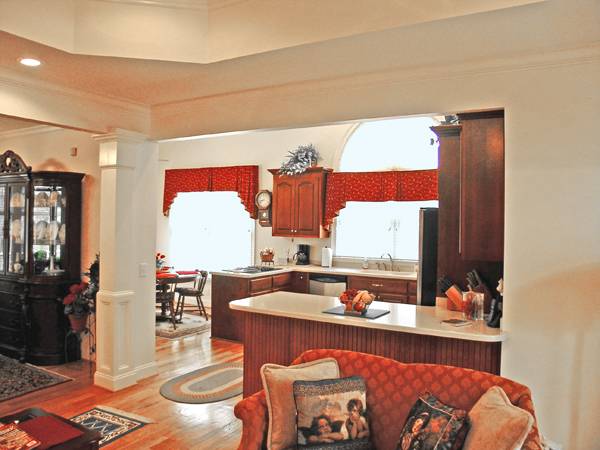

Kitchen features
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Additional features
Bonus Room
Dining Room
Fireplace
Formal LR
Foyer
Great Room
Laundry 1st Fl
Unfinished Space
Garage Location
Side
Garage Features
Attached

Hide Plan Features
Details:
View All Plan Details
2,282 Ft
2
Total Heated:
3
Bedrooms:
2.5
Bathrooms:
2
Garage:
1
Stories:
60' 0"
Width:
57' 4"
Depth:
27' 6"
Height:
9.1
Main Floor Ceiling:
9.1
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
9/12
Primary Roof Pitch:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unheated Living Space
430 Ft
2
Garage:
274 Ft
2
Porch:
576 Ft
2
Bonus Room:

Hide Plan Details
Reviews for Plan 4610
10/8/2012
Jean of Greencastle, PA
Customer Review:
This is a beautiful house and it should be completed in a couple of weeks. We're so excited to move in.
