Sq Ft
3,412 FT²
Bed
4
Bath
3.5
Stories
2
Garage
2
Depth
82'
Width
43' 4"
On Sale
$1,190.00
$1,400.00
© copyright by designer

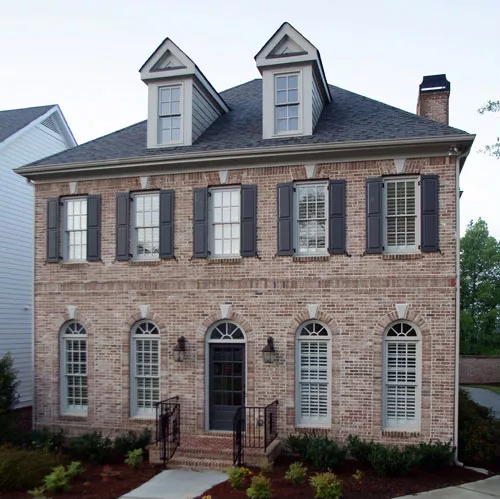

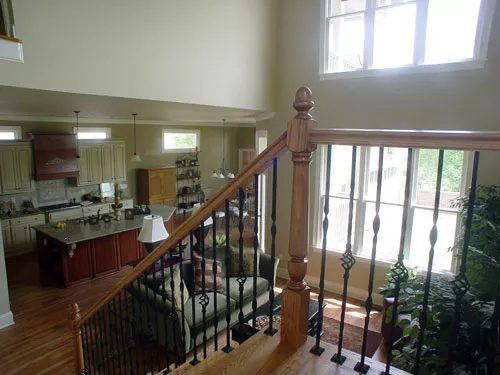

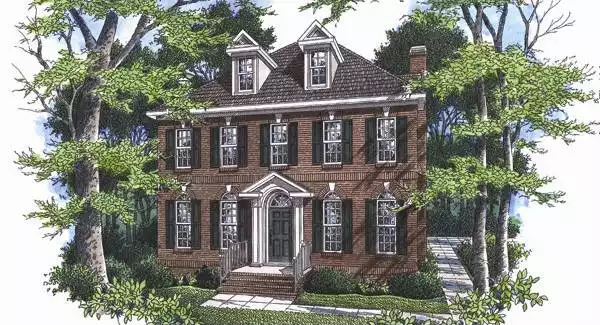

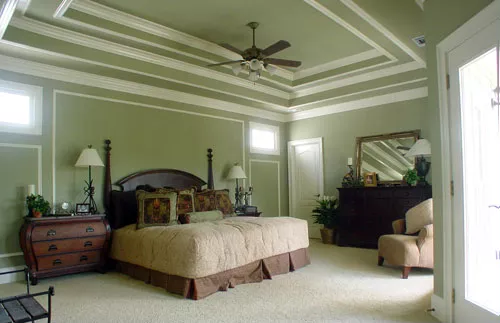

View All 17 Images | Photographs may reflect modified home
Sq Ft
3,412 FT²
From
$1,190.00
Bed
4
Bath
3.5
Stories
2
Garage
2
Depth
82'
Width
43' 4"

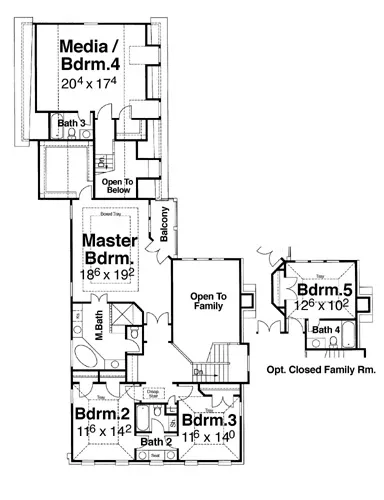

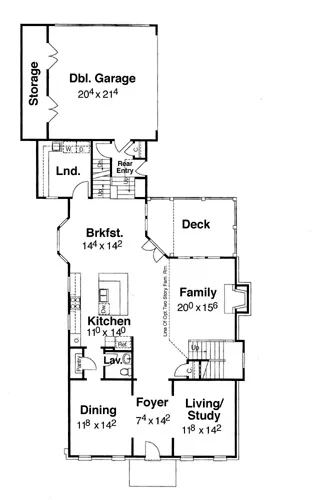

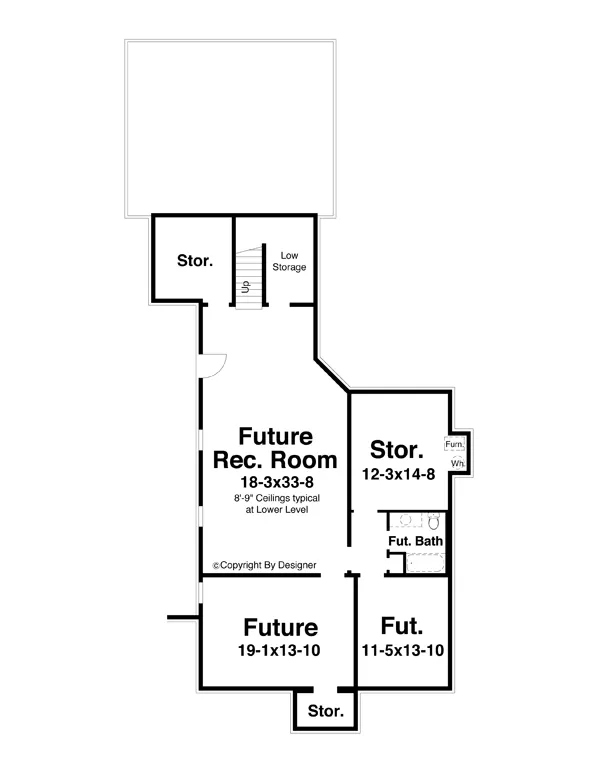

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

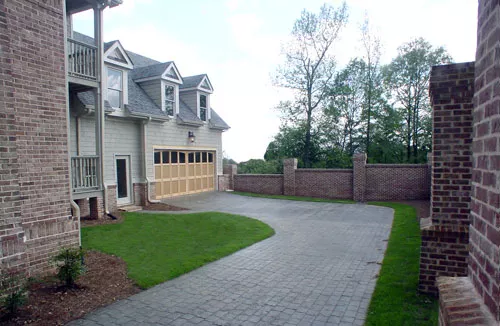

Formality can be comfortable in this narrow plan with rear garage. While providing the beauty of a formal dining and study, this house explodes with light as the rear of the house opens to a courtyard, visible from all the rear rooms of the house.



FEATURES & DETAILS

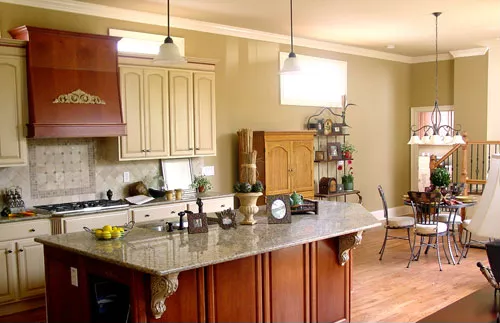

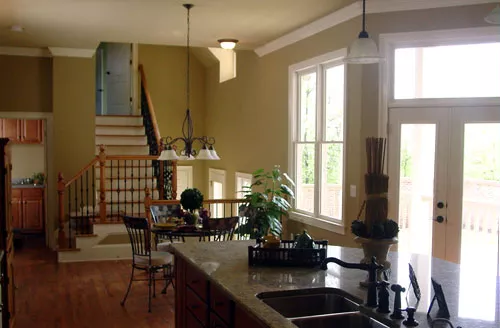

Kitchen features
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet
Exterior features
Covered Rear Porch
Deck
Rear Porch
Foundation Options
Basement
Walkout Basement
Lot Options
Suited for narrow lot
Suited for view lot
Additional features
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 1st Fl
Loft / Balcony
Open Floor Plan
Storage Space
Vaulted Ceilings

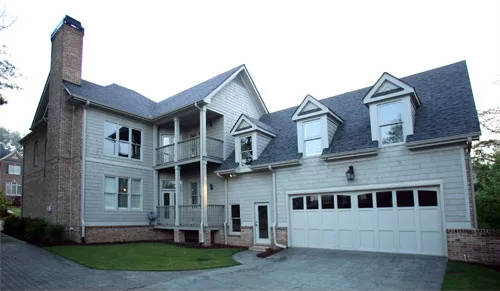

Garage Location
Rear
Garage Options
Attached
Side-entry
3,412 Ft
2
Total Heated
1,659 Ft
2
1st Floor
1,290 Ft
2
2nd Floor
4
Bedrooms
3.5
Bathrooms
2
Garage
2
Stories
43' 4"
Width
82' 0"
Depth
35' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
12/12
Primary Roof Pitch
12/12
Gable Roof Pitch
12/12
Dormer Roof Pitch
Single
Dwelling Number

Unheated Living Space
463 Ft
2
Garage
110 Ft
2
Storage
45 Ft
2
Porch
160 Ft
2
Deck
463 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$900
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$900
$1,400
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,400
$1,550
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,550
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
