Builder Preferred Modern Style Duplex House Plan 5340
See Plan Details
See Architect Preferred Products For This Plan >
House Plan Details
Total
Sq. Ft.
3,100
Per Unit
Sq. Ft.
1,562
Beds
3
Baths
2.5
Stories
2
Garages
1
Width
85' 0"
Depth
31' 0"
Modify This
Home Plan
Detailed Build
Cost Estimator
For assistance,
email
,
live chat
, or call us at
866-214-2242
What's Included?
Select Plan Package
PDF Files - Single Build
$2013
Study Set
$1663
Electronic Study Set for Design Review
PDF Files - Single Build
$2013
PDF Digital Plan Set - emailed
5 Printed Paper Sets
$2188
5 Printed Sets
5x Paper and Digital PDF
$2238
5x Printed paper sets and a Digital PDF
AutoCAD Files
$4026
AutoCAD Drawing Files
Select Foundation Options
$0
Crawlspace
Crawlspace
$0
A joisted crawlspace foundation system is provided in the form of an alternative foundation sheet depicting a wood joisted floor system on the lowest floor.
Slab
$216
A two-pour stem-wall type slab foundation. The slab foundation system is shown in the form of an alternative foundation sheet, added to the plans. Creation of the slab foundation page may take 2 to 3 business days.
Basement
$368
A full in-ground basement design provides details for either poured concrete, or concrete masonry walls. Please note that, in some cases, the design layout, and/or square footage may be adjusted slightly, as necessary to accommodate interior stairs into the basement area. This is particularly the case, for example, with one level designs which do not already incorporate a stairway into the design. Important Note: Basement creation may delay delivery 10 to 15 business days.
Best Price Guarantee*
$0
Optional Add-Ons
Optional Add-Ons
Additional Set (Requires purch...
$45
Full Reverse Sets
$175
Reverse sets are mirror images of the design. With "Full Reverse" plans, though the layout is mirrored, all of the text and dimensions have been adjusted to read normally --- not mirror image. Customers have a strong preference for "right reading" plans, as many services simply print their plans from the back side, leaving text difficult to read, and leading to costly construction errors.
Subtotal:
$0
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please
live chat
,
email
or call for availability.
What You Should Know Before Buying! >
View Sample Construction Drawing >
PLAN IMAGES
Add to Favorites

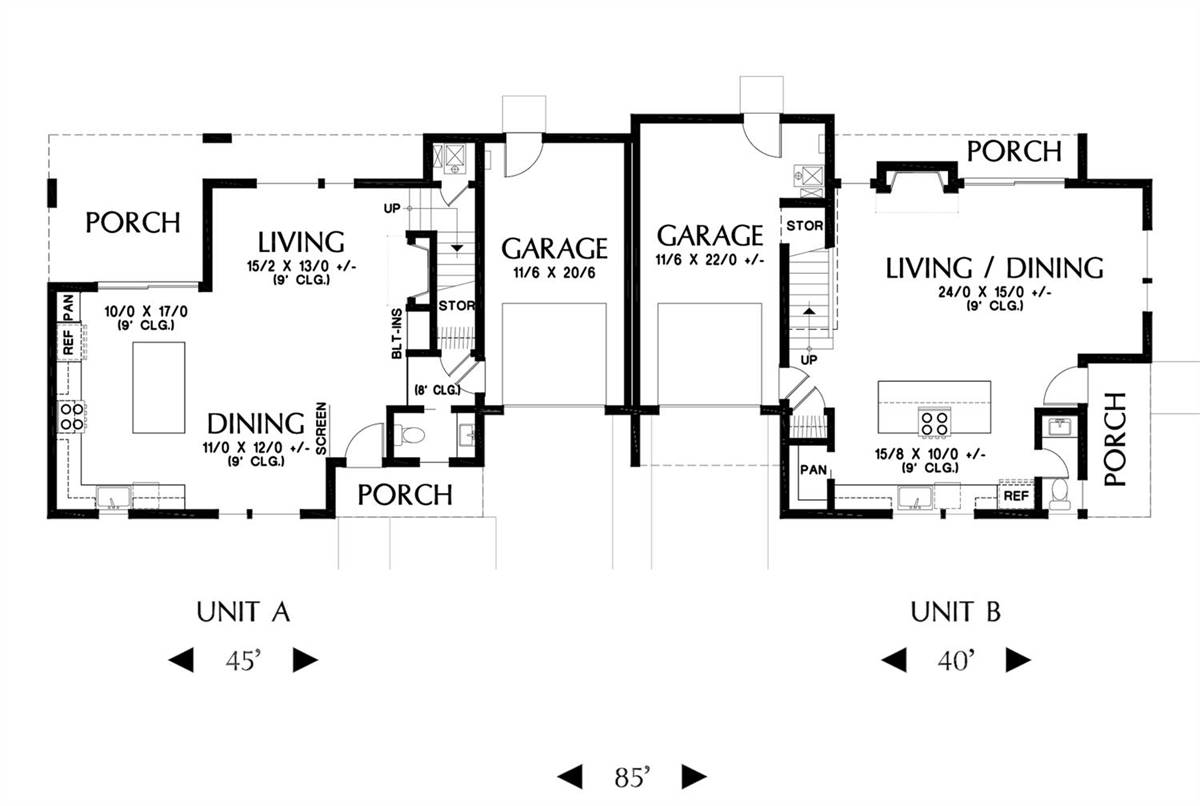

Main Floor Plan

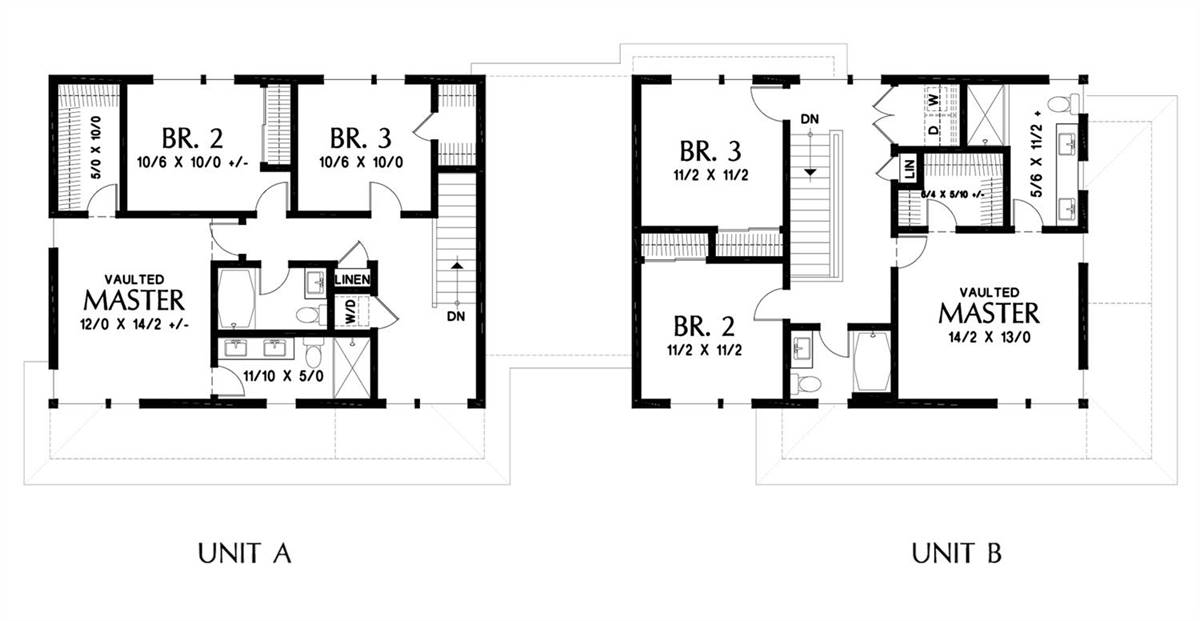

Upper Floor Plan
Main Floor Plan
Upper Floor Plan
© copyright by designer
DETAILS
Total Structure SQ. FT.:
3,100
Unit Total SQ. FT.:
1,562
1st Floor SQ. FT.:
1,432
2nd Floor SQ. FT.:
1,668
Unit A:
1,562
Unit B:
1,538
Bedrooms:
3
Bathrooms:
2.5
Garage:
1
Stories:
2
Main Ceiling Height:
9'
Upper Ceiling Height:
8'
Framing:
2x6
Roof Framing:
Stick
Roof Pitch:
Primary: 2/12
Width:
85' 0"
Depth:
31' 0"
Height:
25' 0"
Exterior Styles:
Contemporary
Modern
Unheated Living Space:
Garage: 534
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Master Bdrm Upstairs
Walk-in Closet
Kitchen Features:
Kitchen Island
Additional Features:
Fireplace
Laundry 2nd Fl
Loft / Balcony
Open Floor Plan
Garage Features:
Attached
Front-entry
Garage Location:
Front
Lot Features:
