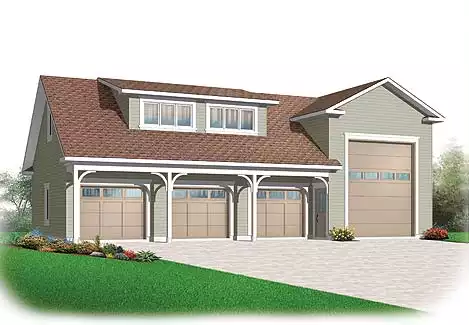

This fabulous garage's three deep auto bays plus an RV or truck bay will keep all of your favorite vehicles safe and dry. Oversized shed dormers on front and back provide light and openness to the upper level, which is perfect for storage, but could be modified to suit a business office or studio.

FEATURES & DETAILS

Foundation Options

Slab

Lot Options

Suited for corner lot

Additional features

Bonus Room
Storage Space
Unfinished Space

Garage Options

Detached

2,466 Ft

Total Heated

1,697 Ft

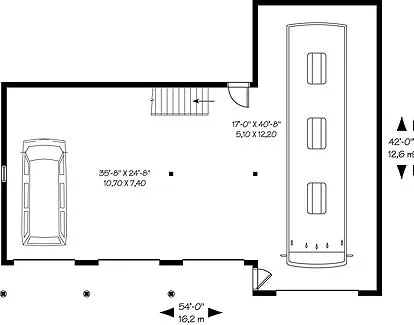

1st Floor

769 Ft

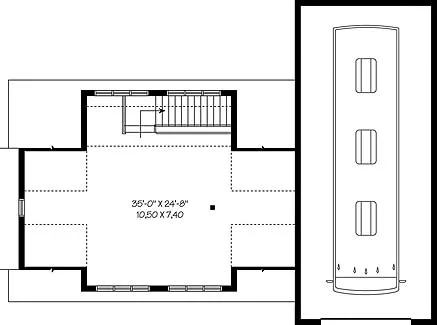

2nd Floor

Garage

Stories

54' 0"

Width

42' 0"

Depth

22' 7"

Height

9.6' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

9/12

Primary Roof Pitch

6/12

Secondary Roof Pitch

3.5/12

Gable Roof Pitch

Garage

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

Exterior Styles

Bungalow

Country

Traditional

Collections

Accessible

Builders

Plan Package Options

Important info before you buy

Select Plan Package

$820

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$820

$935

3 sets + PDF

Please allow 3-5 days for delivery

$935

$1,320

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,320

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

Please allow 3-5 business days for delivery of this plan Please check our PDFs NOW collection for plans that can be downloaded and received immediately or live chat us to help you find a similar plan available now.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
