Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,570 FT²

Beds
3

Baths
2.5

Stories
2

Garage
2

Depth
41' 6"

Width
40'

From
$1,050.00

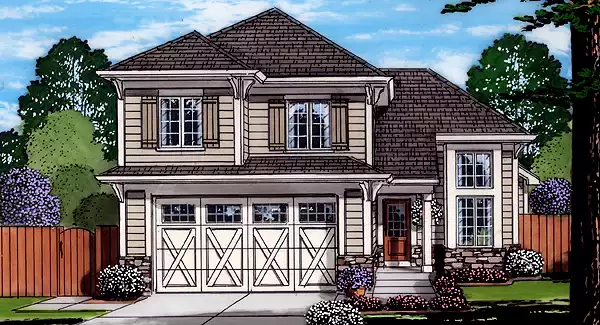

Front Rendering

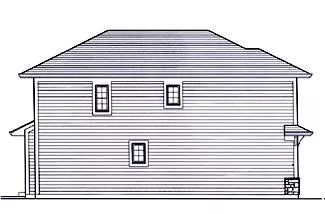

Left Side Elevation

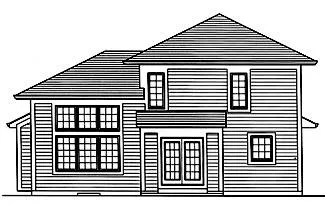

Rear Elevation

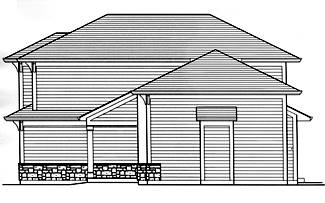

Right Side Elevation

View All 4 Images | Photographs may reflect modified home

Sq Ft

1,570 FT²

From

$1,050.00

Beds

Baths

2.5

Stories

Garage

Depth

41' 6"

Width

40'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

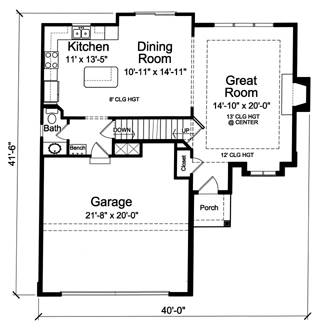

First Floor Plan

Second Floor Plan

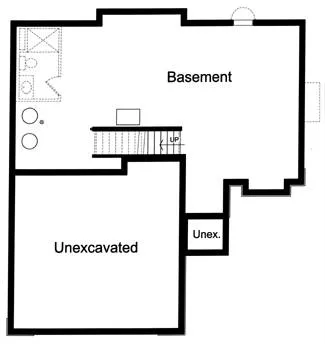

Foundation Plan

First Floor Plan

Second Floor Plan

Foundation Plan

About This Plan

This delightful 2 story cottage house offers a floor plan that extends well beyond what you may expect in a home of this size. A charming exterior of siding and stone trim with a high rise window introduces a great room with gas fireplace and 13' ceiling height, and a front and rear yard view. The dining area with rear yard access enjoys a grand opening to both the great room and kitchen where an island provides additional seating. A mud room offers a great transition in to the home where a drop zone for miscellaneous items can be utilized. The upper level showcases a master bedroom with private bath and walk-in closet. Two additional bedrooms and a bath with double bowl vanity, and a large laundry room complete the second floor. A full basement is included with this plan for storage or additional square footage if needed.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Covered Front Porch
Front Porch

Foundation Options

Basement

Additional features

Fireplace
Great Room
Laundry 2nd Fl
Mud Room
Storage Space

Garage Location

Front

Garage Options

Attached
Front-entry

1,570 Ft

Total Heated

809 Ft

1st Floor

761 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

40' 0"

Width

41' 6"

Depth

25' 6"

Height

8' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Truss

Roof Framing

6:12

Primary Roof Pitch

6:12

Secondary Roof Pitch

6:12

Gable Roof Pitch

Single

Dwelling Number

Unheated Living Space

431 Ft

Garage

Exterior Styles

Cottage

Craftsman

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$820

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$820

$1,050

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,050

$1,100

5 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,100

$1,130

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,130

$1,775

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,775

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
