Sq Ft
1,600 FT²

Beds
3

Baths
2

Stories
1.5

Garage
1

Depth
36'

Width
28'

On Sale
$780.20
$940.00

EXCLUSIVE PLAN

Front Rendering

Rear Rendering

Living Room

Front Rendering

First Floor Plan

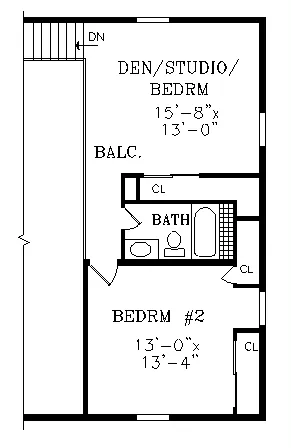

Second Floor Plan

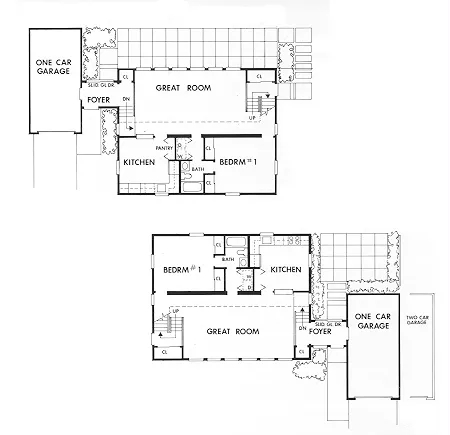

Optional Floor Plan

View All 7 Images | Photographs may reflect modified home

Sq Ft

1,600 FT²

From

$780.20

Beds

Baths

Stories

1.5

Garage

Depth

36'

Width

28'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

Front Rendering

First Floor Plan

Second Floor Plan

Optional Floor Plan

About This Plan

This very modest home is focused on incorporating passive solar features for maximum enrgy efficiency. Plans allow you to connect a garage in different ways thereby permitting the home to be properly oriented to the sun on any lot. The great room is the intended sunny space; a trellis shades a beautiful window wall to eliminate strong summer sun, while permitting lower winter sun to penetrate. The rear interior wall of the great room is a masonry "trombe wall", which will store heat. The home could be built without any grage or with a one or two car garage.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Country Kitchen

Bedroom features

Primary Bdrm Main Floor

Foundation Options

Slab

Additional features

Great Room
Laundry 1st Fl
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached
Front-entry

1,600 Ft

Total Heated

1,008 Ft

1st Floor

582 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

1.5

Stories

28' 0"

Width

36' 0"

Depth

20' 2"

Height

8'-1"' 0"

Main Floor Ceiling

8'-1"' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

7/12

Primary Roof Pitch

8-1/2: 12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

288 Ft

Garage

Exterior Styles

Contemporary

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $589

PDF Bid Set

~~$710~~

PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

Sale: $589

Sale: $780

PDF Single Build

~~$940~~

PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $780

Sale: $872

5 Printed Sets

~~$1,050~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $872

Sale: $934

8 Printed Sets

~~$1,125~~

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

Sale: $934

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
