Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,629 FT²

Bed
3

Bath
2

Stories
1.5

Garage
1

Depth
43' 2"

Width
45'

On Sale
$799.00
$940.00

Front Rendering

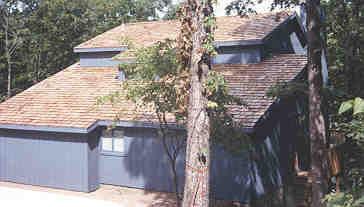

Rear Photo

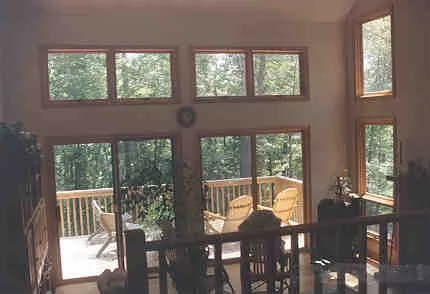

Interior Photo

Living Room

View All 5 Images | Photographs may reflect modified home

Sq Ft

1,629 FT²

From

$799.00

Bed

Bath

Stories

1.5

Garage

Depth

43' 2"

Width

45'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

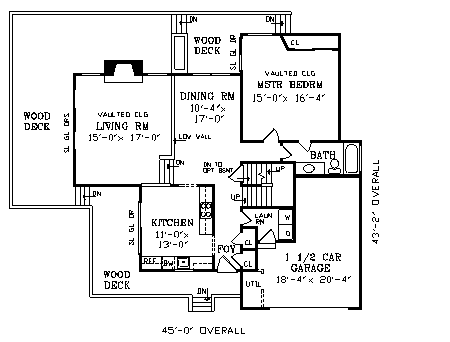

First Floor Plan

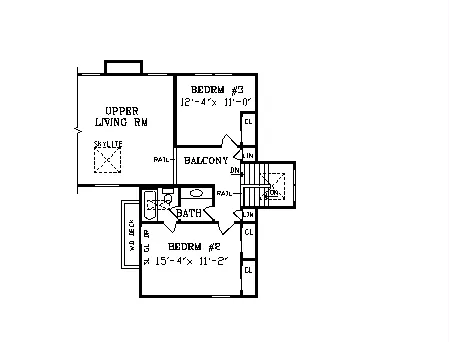

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

For a scenic lake or mountain lot, this spectacular design takes full advantage of the views. I designed a three-sided wraparound deck to expand the relationship between indoor and outdoor living. The sunken living room with a 19-ft. cathedral ceiling, a skylight, a beautiful fireplace and glass galore is the heart of the floor plan. Both the formal dining room and the kitchen overlook the living room and the surrounding deck beyond. The main-floor master bedroom has a 12-ft. cathedral ceiling and private access to the deck and hall bath. Upstairs, two more bedrooms share a skylighted bath and flank a dramatic balcony sitting area that views to the living room below.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Nook / Breakfast Area

Bedroom features

Primary Bdrm Main Floor

Exterior features

Deck
Wraparound Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot
Suited for sloping lot

Additional features

Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Loft / Balcony
Open Floor Plan
Storage Space
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry
Oversized

1,629 Ft

Total Heated

1,098 Ft

1st Floor

531 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

1.5

Stories

45' 0"

Width

43' 2"

Depth

26' 6"

Height

8'-1"' 0"

Main Floor Ceiling

8'-1"' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

9/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

327 Ft

Garage

Exterior Styles

Contemporary

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$710

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$710

$940

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$940

$1,050

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,050

$1,125

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,125

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
