HOUSE PLANS SALE
START AT $888.25
SQ FT
1,164
BEDS
1
BATHS
2
STORIES
1
CARS
3
WIDTH
24'
DEPTH
64'
© copyright by designer
Photographs may reflect modified home | View all 2 images
SQ FT
1,164
BEDS
1
BATHS
2
STORIES
1
CARS
3

House Plan 3160: Cimarron Place

This 1164 sq. ft. Cottage is one of our Lifetime Series:

A Lifetime Home...
Why It's Extraordinary...
Why It's Green:

1) Utility Independence

This two-fold initiative will enable development in remote locations and provide additions to current homes for supplemental, or even primary utility services. This practical and affordable Utility Independence Series provides new opportunities for vacation retreats, private quarters hidden in remote natural areas, and Freedom to live virtually wherever you choose without sacrificing comfort or convenience.

2) Learning from the Past, Planning for the Future...

With each new day, we seem to be confronted with issues of depleting resources or other environmental concerns. This series of designs offers a proactive opportunity to reverse the trend, to use emerging technologies, to become increasingly self-sufficient and become a part, not of the problem, but of the solution.

3) Cimarron Place:

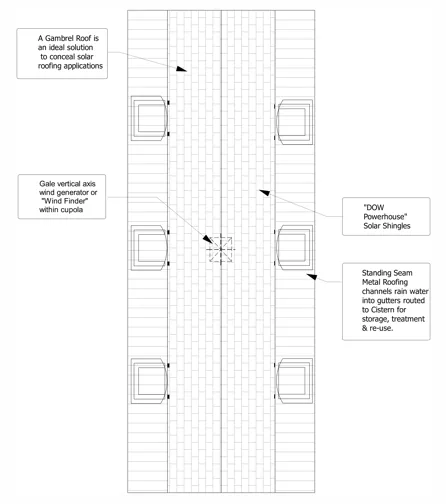

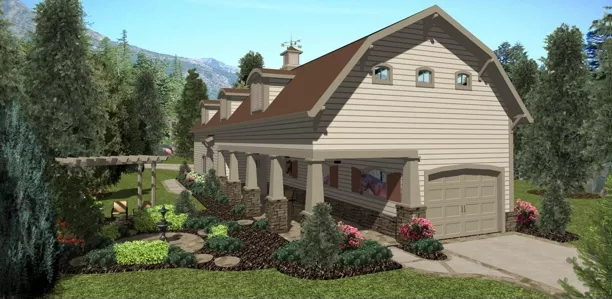

If you think equestrian, then you can imagine the possibilities of Cimarron Place. This is a getaway for those who love horses, the outdoors, entertaining, and an escape from all the rest. Your cares and concerns will melt away as you spend time doing what you enjoy most. Whether a compliment to your current home, or some time on the range you've always envisioned, the Cimarron Place provides the opportunity to experience that freedom. Its Barn styling is the perfect form for its function...a well deserved "time away from it all". Beyond the free-spirited lifestyle, you'll also appreciate the many cost-saving features of this design; Dow Powerhouse Solar Shingles, a Gale vertical axis wind turbine, a Rain Water Cistern Storage System, 6" SIP exterior wall construction, just to mention a few.

The unique floor plan provides both a private Owner's Suite and a bunk area space for "Fun & Games" as well as relaxation. The Suite features a walk-in closet and direct access to the bath. The entertainment center is easily viewable from the sofa or the banquette. The kitchen is an efficiency design and includes a spacious pantry.

The Lower level hosts an array of solar & mechanical equipment, including a tankless water heater and an optional laundry. There are three Stalls, the third of which may be used as a Tack Room. When the ridings done and the sun has set, the expansive covered porch provides a breezy gathering area to share all those "tall tales"...which will likely continue when the gang moves upstairs for some memorable "Fun & Games."

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
$745
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,045
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,045
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets
Eight printed sets of house plans
$1,195
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build
2D electronic editable computer files
$1,495
 Need To Reverse Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$295
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping

Note: Note:Please allow 3 weeks for the completion and delivery of this plan.
Features:
View All Plan Features
Garage Location
Front
Garage Options
Detached
Front-entry
Rear-entry
With Living Space
Foundation Options
Slab

Hide Plan Features
Details:
View All Plan Details
1,164 Ft
2
Total Heated:
1,164 Ft
2
2nd Floor:
1
Bedrooms:
2
Bathrooms:
3
Garage:
1
Stories:
24' 0"
Width:
64' 0"
Depth:
22' 6"
Height:
10' 1 1/8"' 0"
Main Floor Ceiling:
8' 0"
Upper Floor Ceiling:
2x6
Framing:
Truss
Roof Framing:
14/12
Primary Roof Pitch:
6/12
Secondary Roof Pitch:
Garage
Dwelling Number:
Unheated Living Space
Exterior Styles
Cottage
Country
Craftsman
Collections
Exclusive
Outdoor Living

Hide Plan Details
