House Plan 3509: Chesterfield

An abundance of gables enhance this traditional styled home. The skylit rear porch is accessed from several areas offering outdoor enjoyment. Entertaining is a breeze in the large kitchen/breakfast area.

House Plan Details

Sq. Ft.
1,974
Beds
3
Baths
2.1
Stories
1
Garages
2
Width
72' 0"
Depth
55' 2"
1st Floor
1,974
Garage
518
Porch
382
Select Plan Package
Five Sets - Minimum Const
$870
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $870

Floor Plans

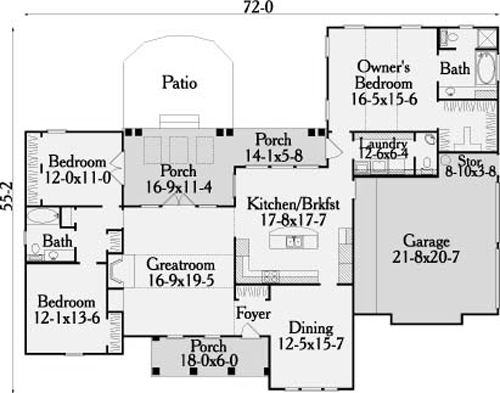

First Floor Plan

First Floor Plan
© copyright by designer

House Plan Specifications

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 2
Stories: 1
Exterior Style
Cottage
Southern
Traditional
Dimensions
Height: 22' 0"
Depth: 55' 2"
Width: 72' 0"
Heated Living Space
Total Sq. Ft: 1,974
1st Floor: 1,974
Unheated Living Space
Garage: 518
Porch: 382
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 8
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Separate Tub and Shower
Separate Tub and Shower
Split Bedrooms
Split Bedrooms
Walk-in Closet
Walk-in Closet
Kitchen Features
Country Kitchen
Country Kitchen
Kitchen Island
Kitchen Island
Nook / Breakfast Area
Nook / Breakfast Area
Peninsula / Eating Bar
Peninsula / Eating Bar
Additional Room Features
Dining Room
Dining Room
Fireplace
Fireplace
Foyer
Foyer
Great Room
Great Room
Laundry 1st Fl
Laundry 1st Fl
Mud Room
Mud Room
Storage Space
Storage Space
Vaulted Ceilings
Vaulted Ceilings

Our Guarantee

  • Only the highest quality plans
  • International Residential Code compliant
  • Complete structural details on all plans
  • Best plan and modification price guaranteed
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • House plans delivered in minutes
  • 100% satisfaction guarantee
