House Plan 2434: Chesterfield

Simple and sophisticated, this home features tall windows and elegant gables. Light pours into the entry through the sidelights and the transom over the door. Wide-open spaces run through the center of the home to accommodate the public rooms.  Read more >

House Plan Details

Sq. Ft.
1,699
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
50' 0"
Depth
51' 0"
Select Plan Package
PDF Files - Single Build
$1158
Select Foundation Options
$0
Crawlspace
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

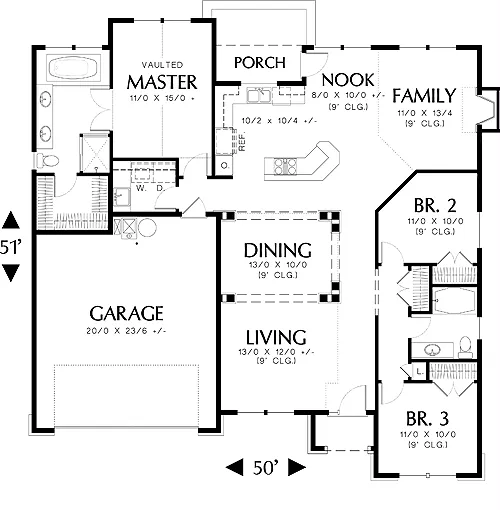

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,699
1st Floor SQ. FT.:
1,699
Bedrooms:
3
Bathrooms:
2.0
Garage:
2
Stories:
1
Main Ceiling Height:
Varies'
Upper Ceiling Height:
'
Framing:
2x6
Roof Framing:
Truss
Roof Pitch:
Primary: 7/12
Gable: 10/12
Width:
50' 0"
Depth:
51' 0"
Height:
22' 0"
Exterior Styles:
Cottage
Country
Ranch
Unheated Living Space:
Garage: 475
Porch: 38
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Kitchen Features:
Kitchen Island
Nook / Breakfast Area
Additonal Features:
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Garage Features:
Attached
Front-entry
Garage Location:
Front
Lot Features:
Suited for narrow lot
Suited for view lot
