HOUSE PLANS
START AT $3,600
SQ FT
7,915
BEDS
5
BATHS
6.5
STORIES
2
CARS
4
WIDTH
102'
DEPTH
135'
© copyright by designer
Photographs may reflect modified homes.
SQ FT
7,915
BEDS
5
BATHS
6.5
STORIES
2
CARS
4



House Plan 3409: Chatham Downs

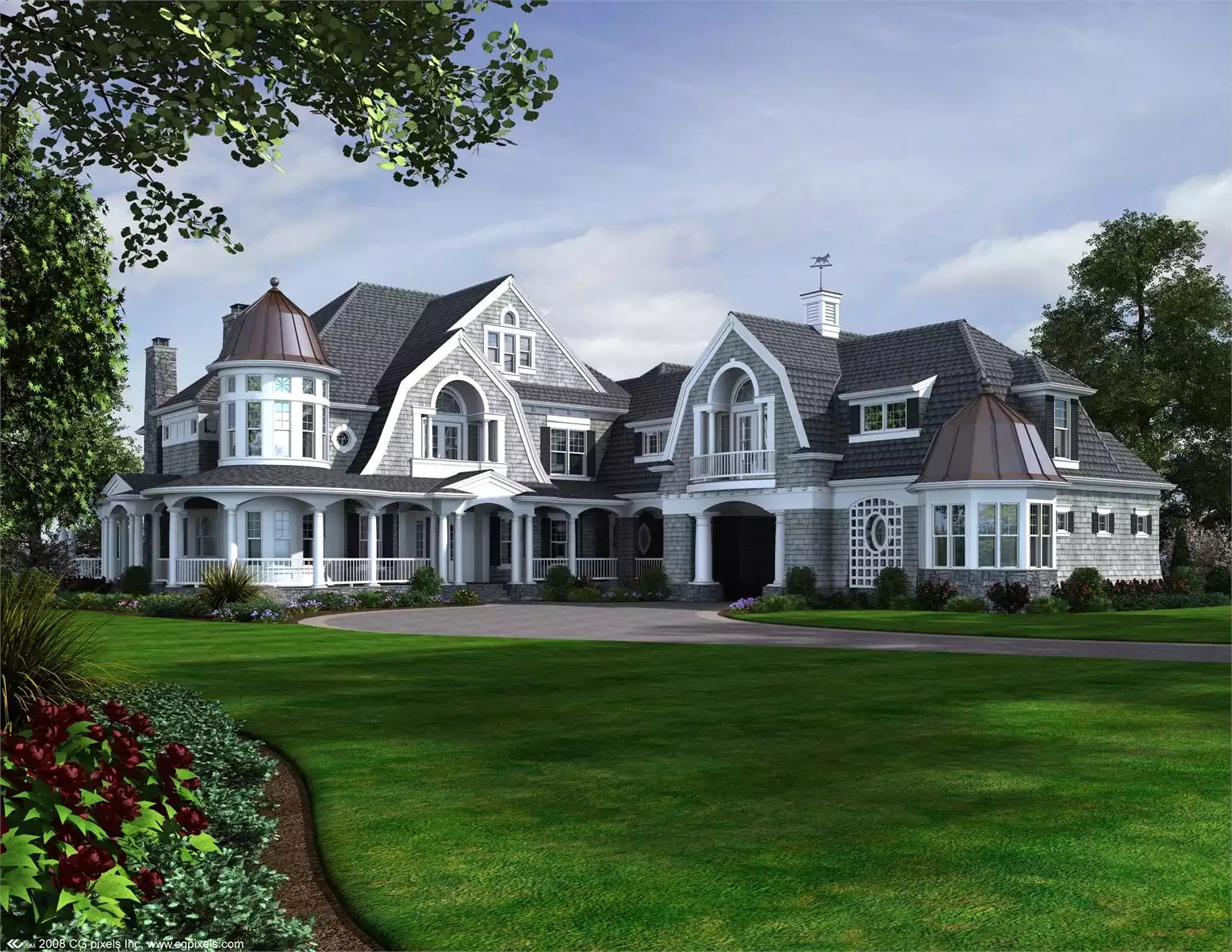

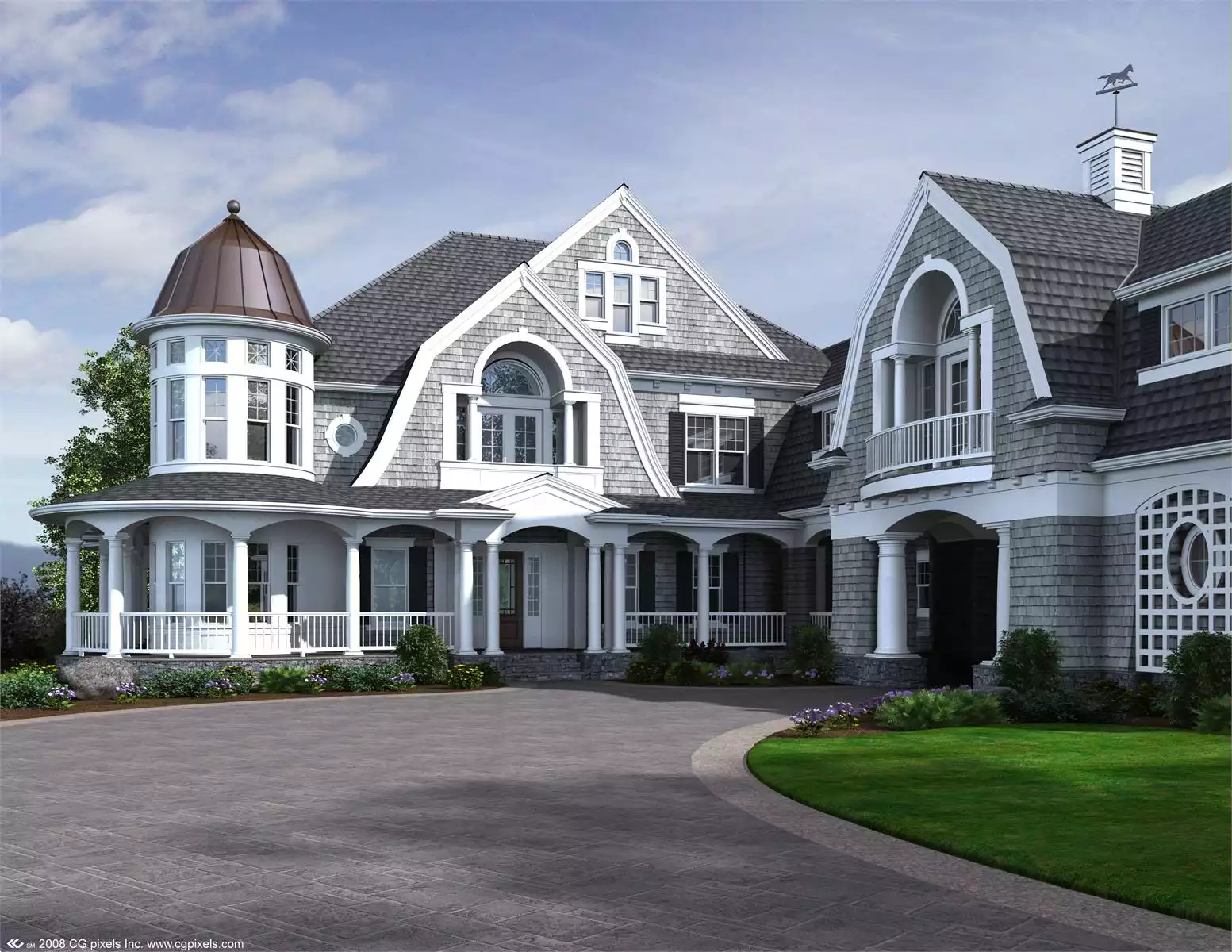

You can picture this amazing five-bedroom house plan near the beaches of Cape Cod. Graceful porches embrace much of the exterior of this home plan. A quiet library and a formal dining room flank the inviting foyer. The island kitchen is modern and vast. The family chef will appreciate the sizable pantry as well as the butler's pantry. The spacious great room offers a dramatic high ceiling and plenty of backyard views.  Read more >
Click to Zoom In on Floor Plan

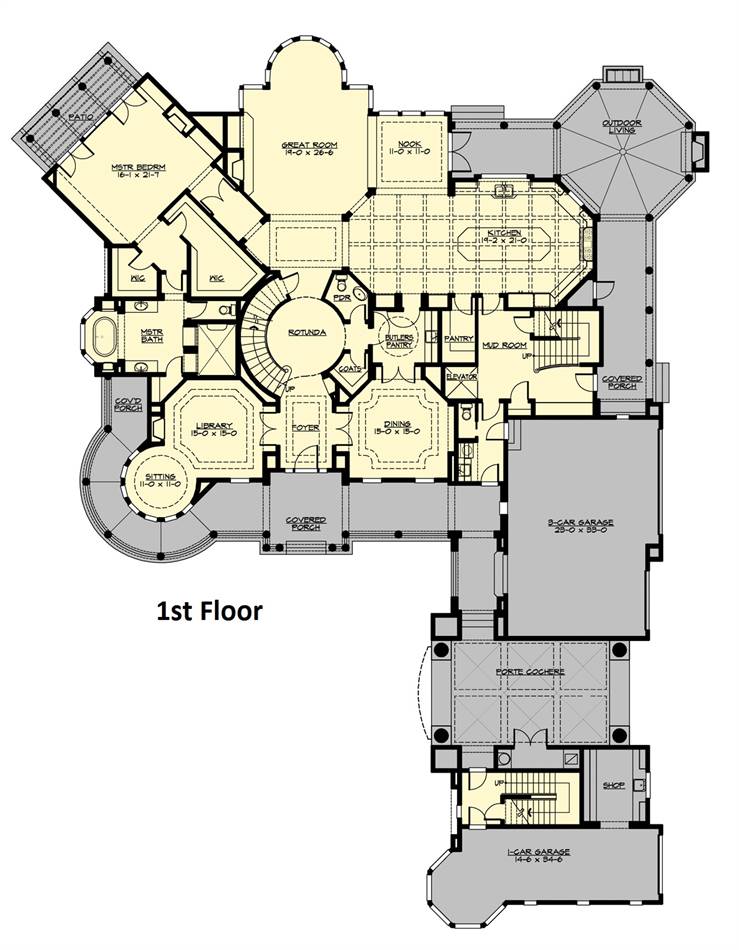

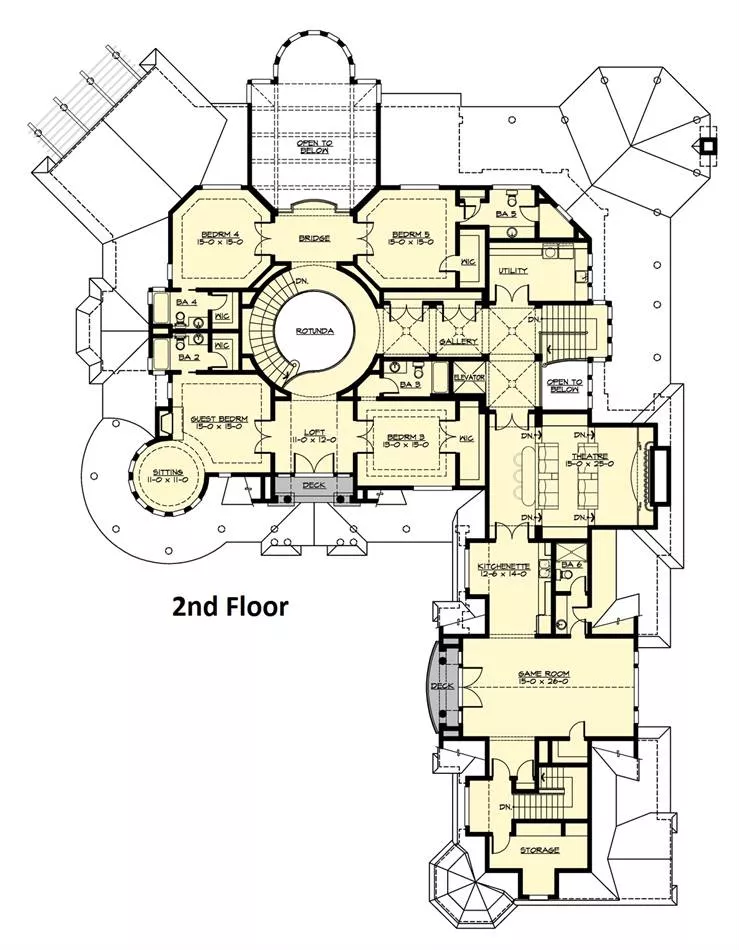

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$4,000

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$6,000
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$250
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.
Features:
View All Plan Features
Bedroom features
Master Bdrm Main Floor
Additional features
Bonus Room
Great Room
Home Office
Laundry 1st Fl
Laundry 2nd Fl
Garage Location
Side
Garage Features
Attached

Hide Plan Features
Details:
View All Plan Details
9,315 Ft
2
Total Structure:
7,915 Ft
2
Total Heated:
4,105 Ft
2
1st Floor:
3,810 Ft
2
2nd Floor:
5
Bedrooms:
6.5
Bathrooms:
4
Garage:
2
Stories:
102' 0"
Width:
135' 0"
Depth:
39' 6"
Height:
10
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x6
Framing:
Combination
Roof Framing:
10:12
Primary Roof Pitch:
28:12
Secondary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
1,400 Ft
2
Garage:
Exterior Styles
Cape Cod
Craftsman
French Country

Hide Plan Details
