Sq Ft
1,595 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
37' 4"

Width
70'

From
$940.00

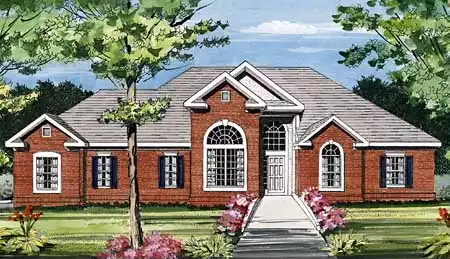

Front Rendering #1

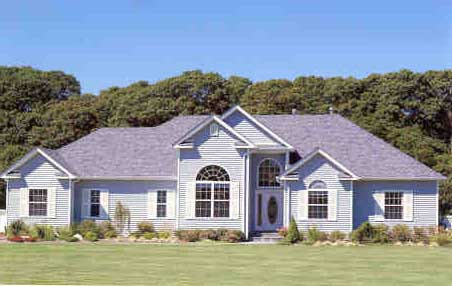

Front View

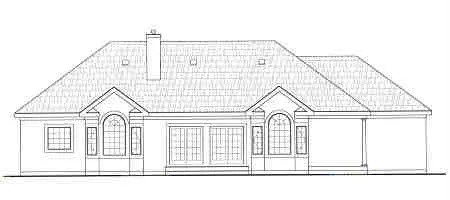

Rear Rendering

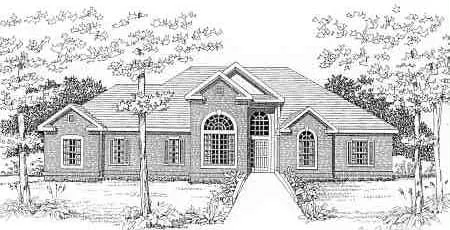

Front Rendering #2

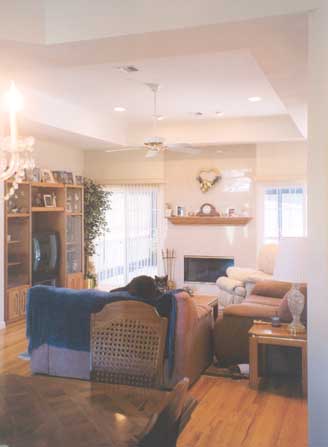

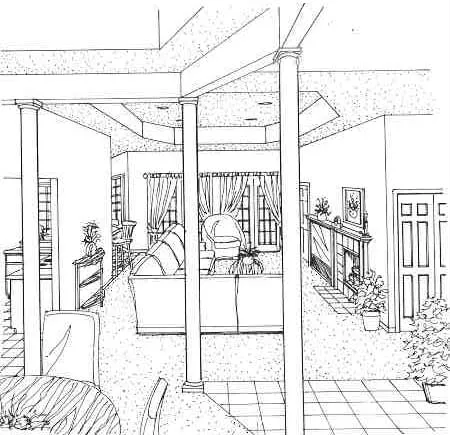

Great Room

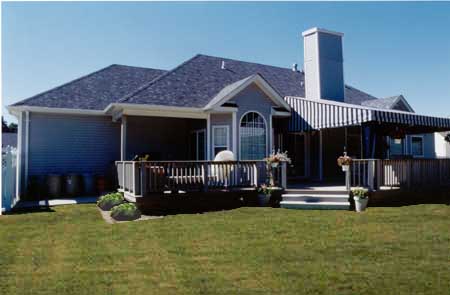

Rear Exterior

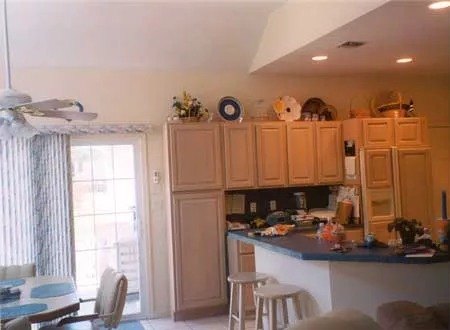

Kitchen

View All 8 Images | Photographs may reflect modified home

Sq Ft

1,595 FT²

From

$940.00

Beds

Baths

Stories

Garage

Depth

37' 4"

Width

70'

Modify

Cost Estimator

Sample Plan

Architect's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

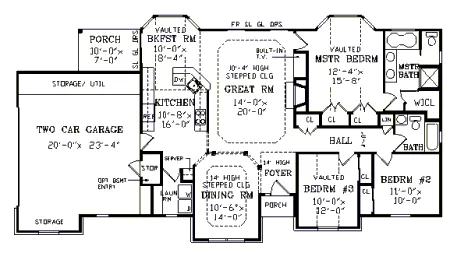

First Floor Plan

About This Plan

A formal hip roof graces this lovely three bedroom ranch home, which boasts not only good looks, but a great layout as well. The private master suite, although located in the same bedroom wing as all the bedrooms, has a separate entrance. It includes a vaulted ceiling, three closets and aprivat compartmented bath. The dramatic open living area, comprising the great room, dining room and foyer, flaunt high ceilings, adding to the airy volume of the home. The adjacent kitchen and breakfast area also flow into this beautiful space. Note the rear porch off the breakfast room. The plan has been designed to also accommodate a wheelchair, if necessary.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Additional features

Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Storage Space
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached

1,595 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

70' 0"

Width

37' 4"

Depth

22' 0"

Height

9' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

9/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

548 Ft

Garage

Exterior Styles

European

Ranch

Southern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$680

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$680

$940

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$940

$1,050

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,050

$1,125

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,125

$1,795

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,795

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
