House Plan 5539: Castella

House Plan Details

Sq. Ft.
2,875
Beds
4
Baths
3.0
Stories
2
Garages
3
Width
48' 0"
Depth
53' 0"
1st Floor
1,272
2nd Floor
1,603
Garage
650
Select Plan Package
PDF Files - Single Use Li
$1400
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0

Note: This plan cannot be purchased for construction in Washington State.

PLAN IMAGES

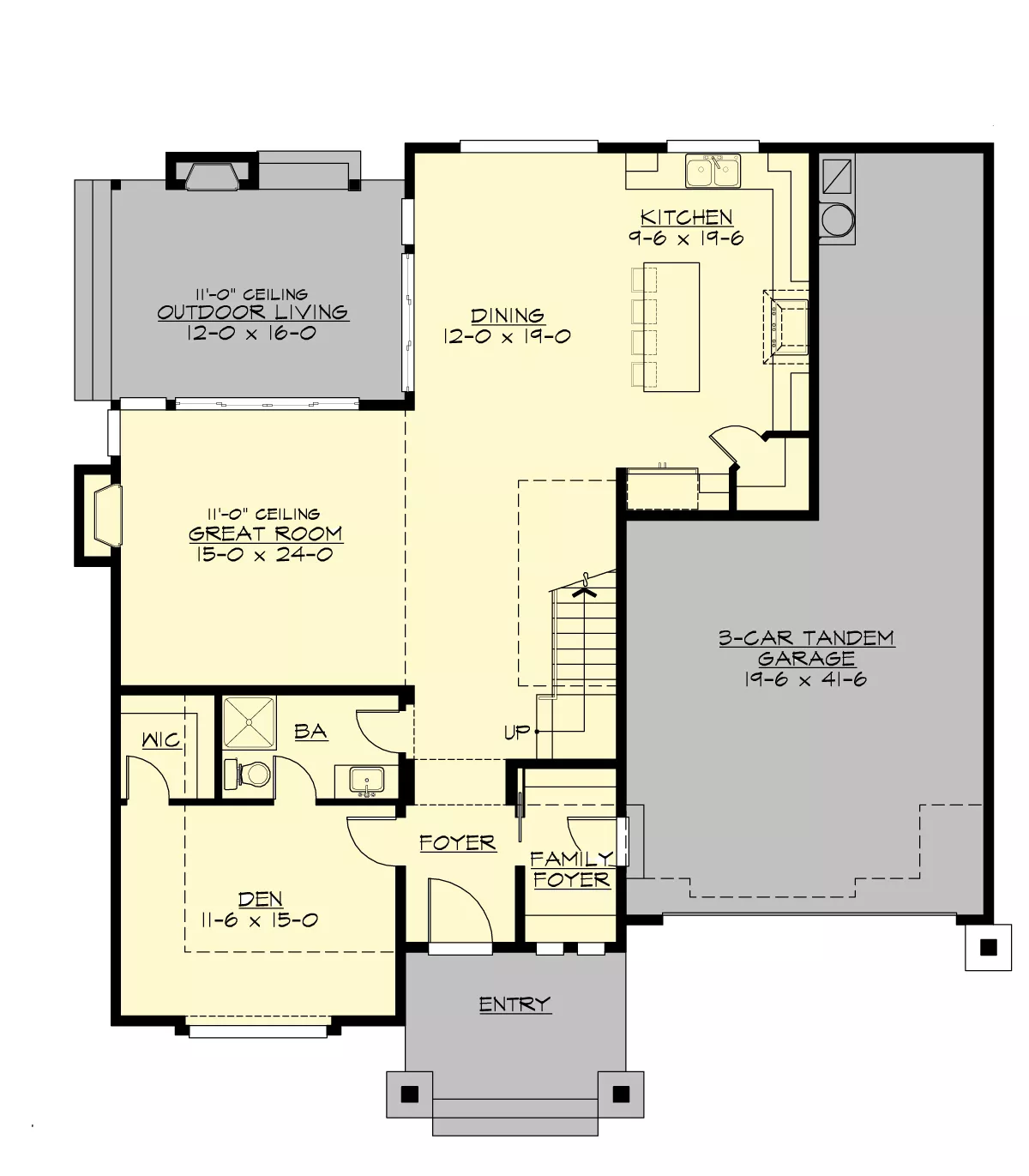

Main Floor

Main Floor
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 3.0
Garage: 3
Stories: 2
Exterior Style
Contemporary
Modern
Dimensions
Width: 48' 0"
Height: 24' 6"
Depth: 53' 0"
Heated Living Space
Total Sq. Ft: 2,875
1st Floor: 1,272
2nd Floor: 1,603
Unheated Living Space
Garage: 650
Ceiling
Upper Ceiling Ft: 8
Main Ceiling Ft: 9
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features

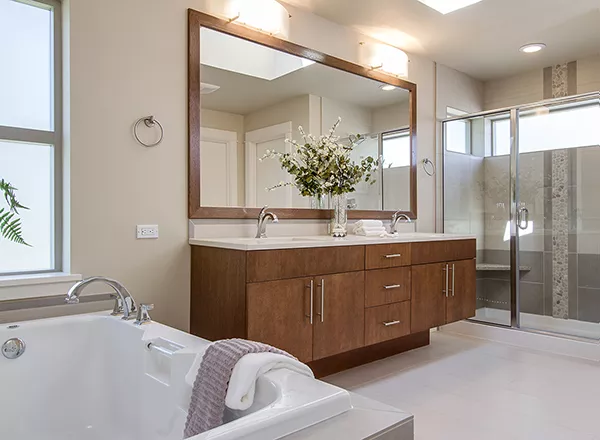

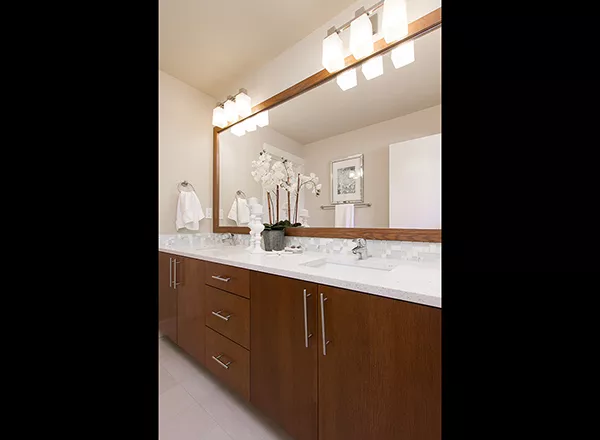

Double Vanity Sink

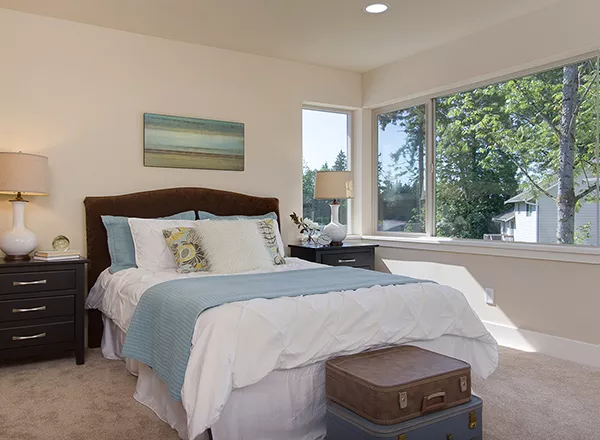

Master Bdrm Upstairs
Separate Tub and Shower

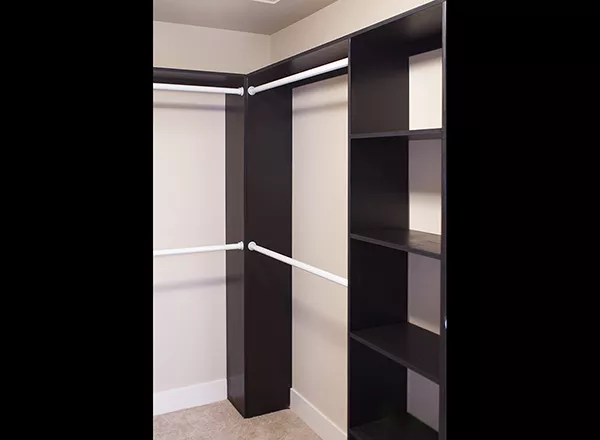

Walk-in Closet

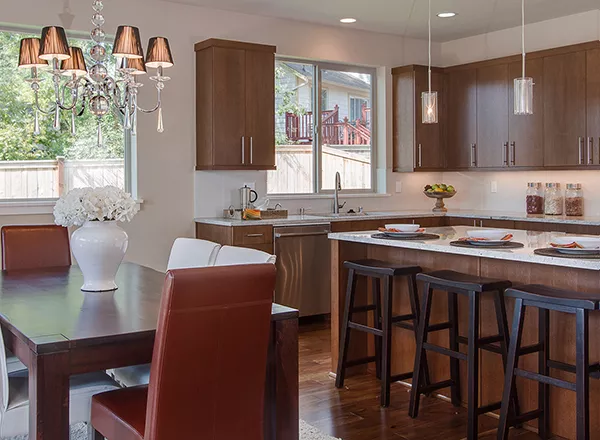

Kitchen Features
Kitchen Island
Peninsula / Eating Bar
Walk-in Pantry
Additional Room Features
Bonus Room

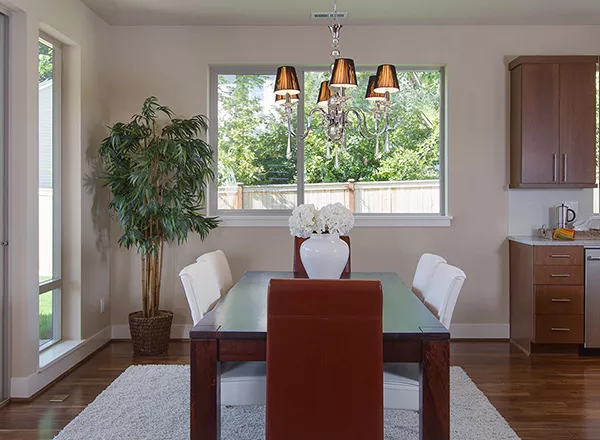

Dining Room
Fireplace

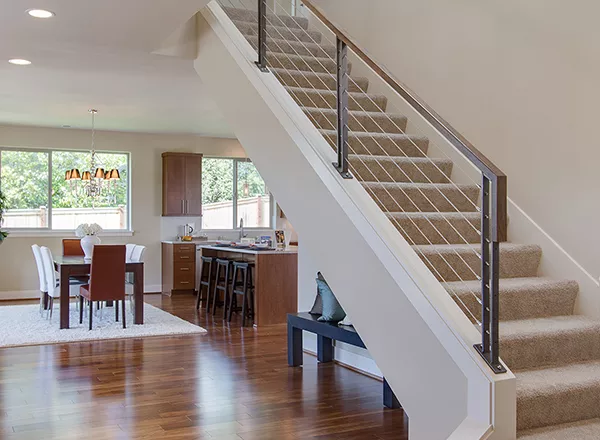

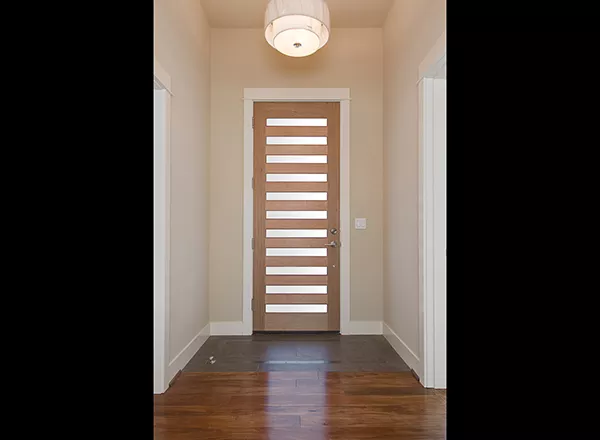

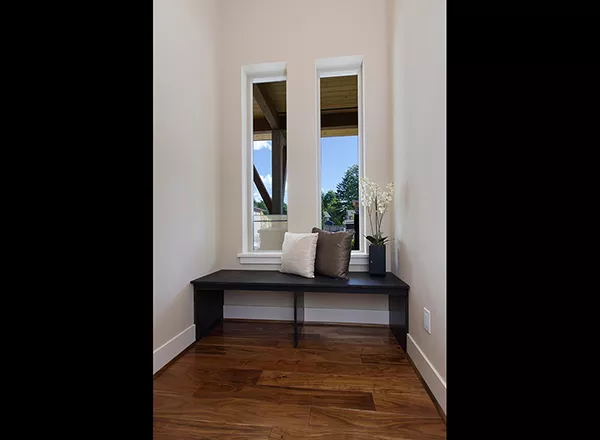

Foyer

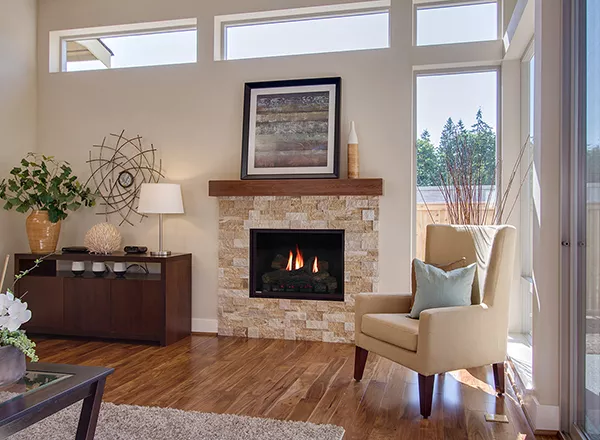

Great Room

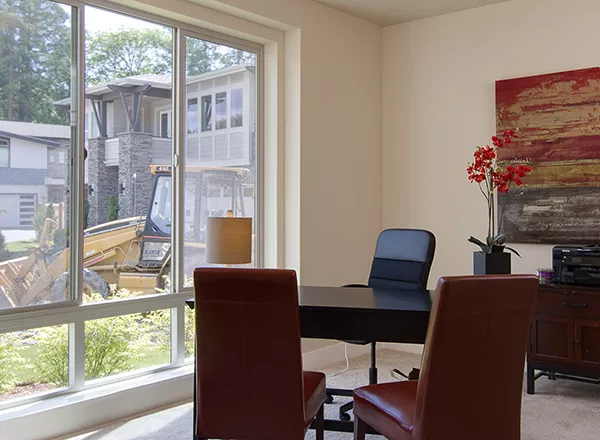

Home Office

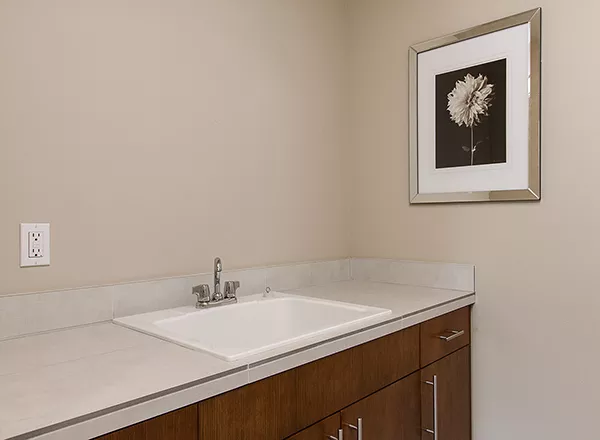

Laundry 2nd Fl
Mud Room
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Tandem
Lot Features
Roof Pitch
Primary: 4

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
