Sq Ft
5,768 FT²

Beds
5

Baths
5.5

Stories
2

Garage
3

Depth
61'

Width
108'

From
$1,695.00

Front Rendering

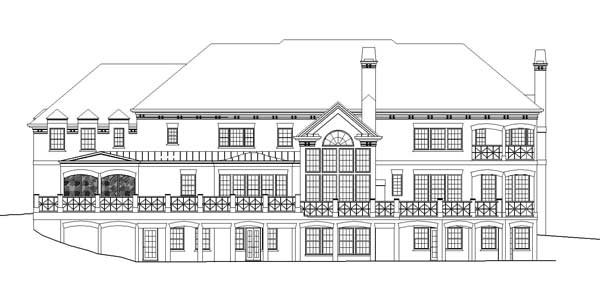

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

5,768 FT²

From

$1,695.00

Beds

Baths

5.5

Stories

Garage

Depth

61'

Width

108'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

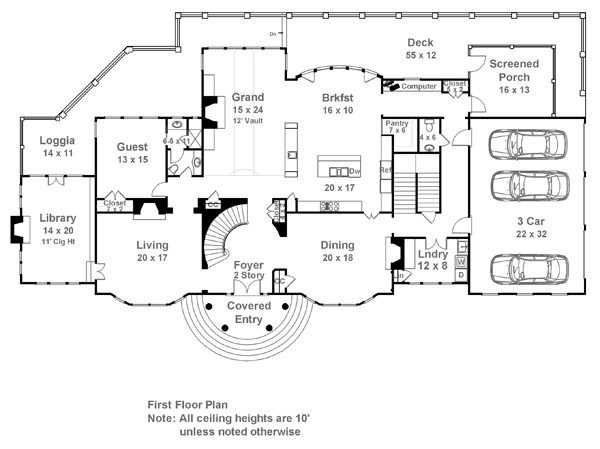

1st Floor Plan

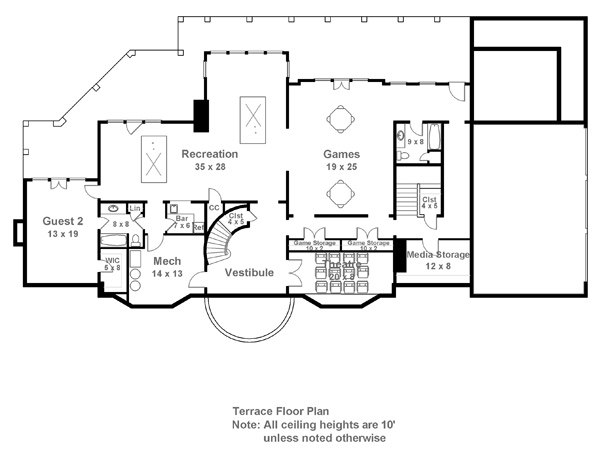

Terrace Floor Plan

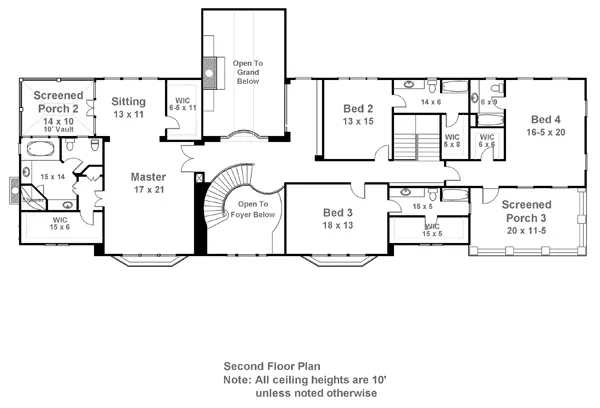

2nd Floor Plan

1st Floor Plan

Terrace Floor Plan

2nd Floor Plan

About This Plan

Typically you'd only find a classic family estate like this in the United Kingdom or Europe, but you can live this lifestyle everyday. Although this grand home has all the timeless elements of truly tasteful design, this rendition is thoroughly modern and replete with every convenience and luxury. The floor plan is spacious and flexible enough for formal dinners and raucous Superbowl parties. Note the guest suite on the first floor near the library (a loggia access enhances the beamed-ceiling library). The family room is cavernous but close enough to the breakfast room and kitchen to make it practical. The grand staircase separates the master suite on the second floor from secondary bedrooms. Many extras, like the screened porch or the cedar closet, make this a home to treasure.

FEATURES & DETAILS

Exterior features

Rear Porch

Foundation Options

Daylight Basement
Walkout Basement

Garage Location

Side

Garage Options

Attached

5,768 Ft

Total Heated

3,115 Ft

1st Floor

2,653 Ft

2nd Floor

Bedrooms

5.5

Bathrooms

Garage

Stories

108' 0"

Width

61' 0"

Depth

36' 4"

Height

10' 0"

Main Floor Ceiling

10' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/10

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

Exterior Styles

Collections

Luxury

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$1,695

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,695

$2,125

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,125

$2,225

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,225

$2,495

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,495

$3,290

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$3,290

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
