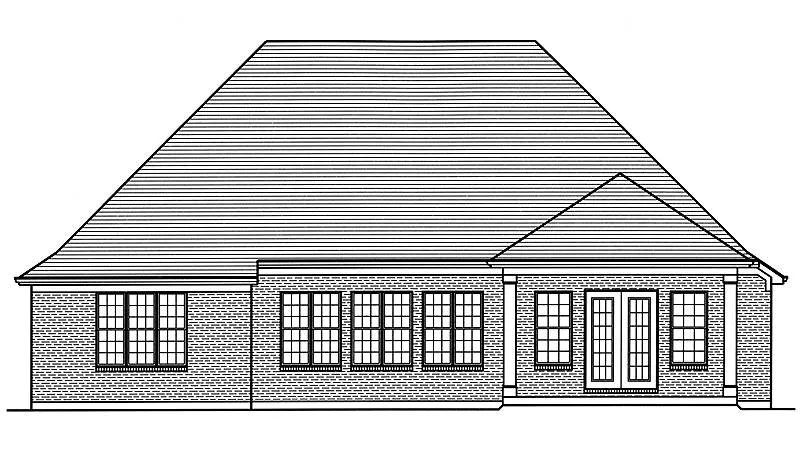

Rear Elevation
Rear Elevation

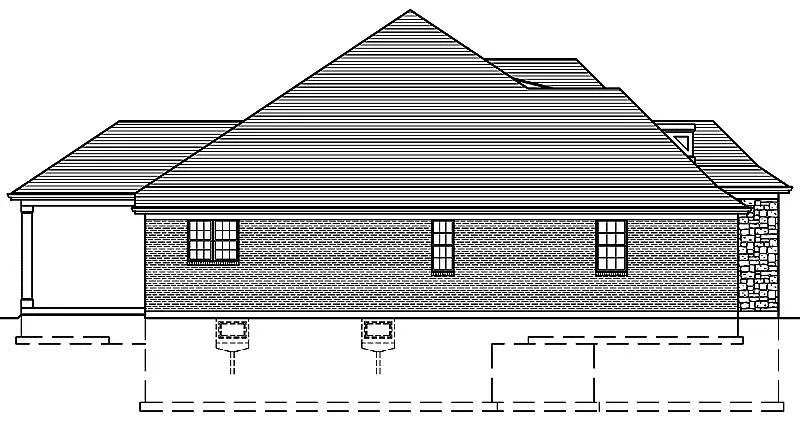

Left Side Elevation
Left Side Elevation

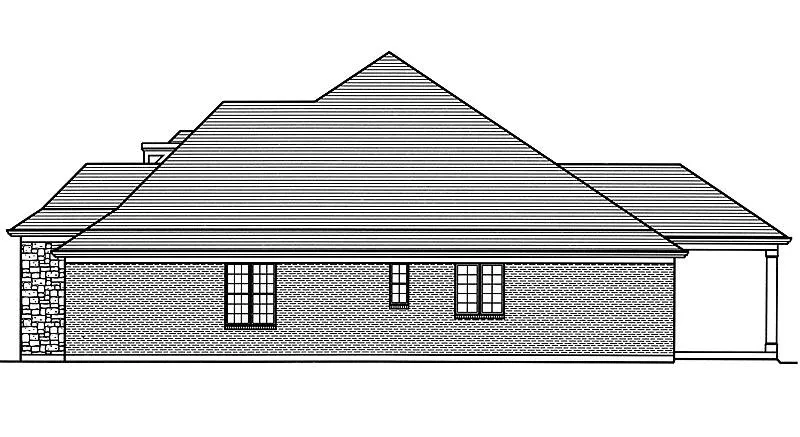

Right Side Elevation
Right Side Elevation

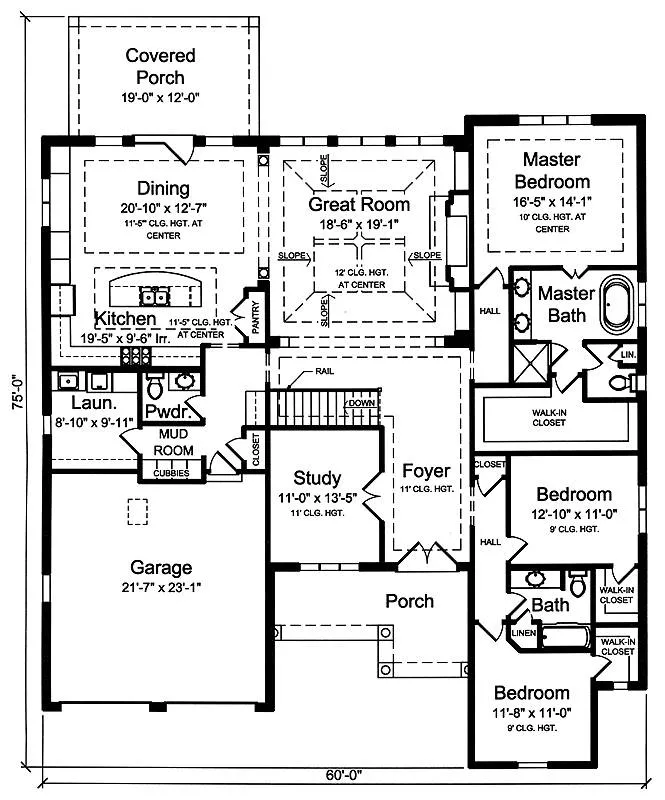

First Floor Plan

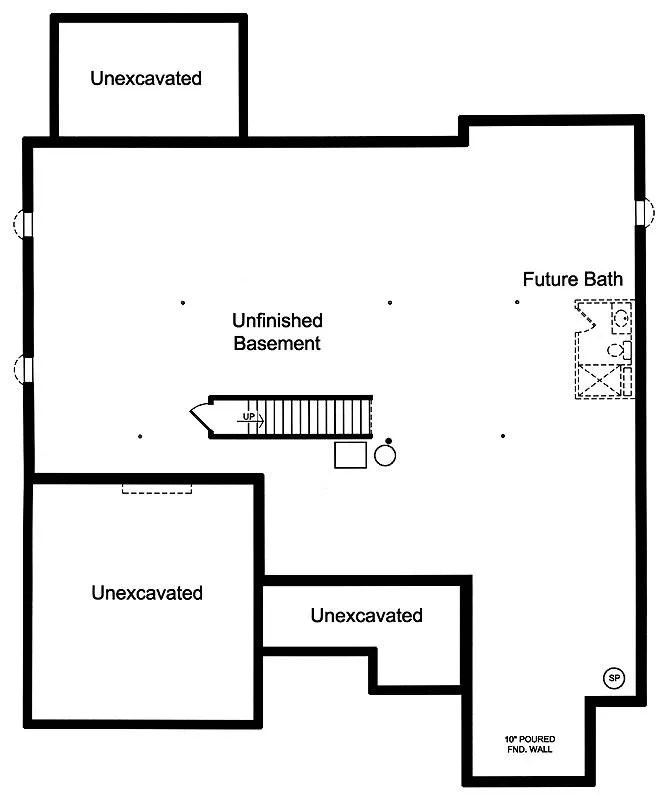

Foundation Plan

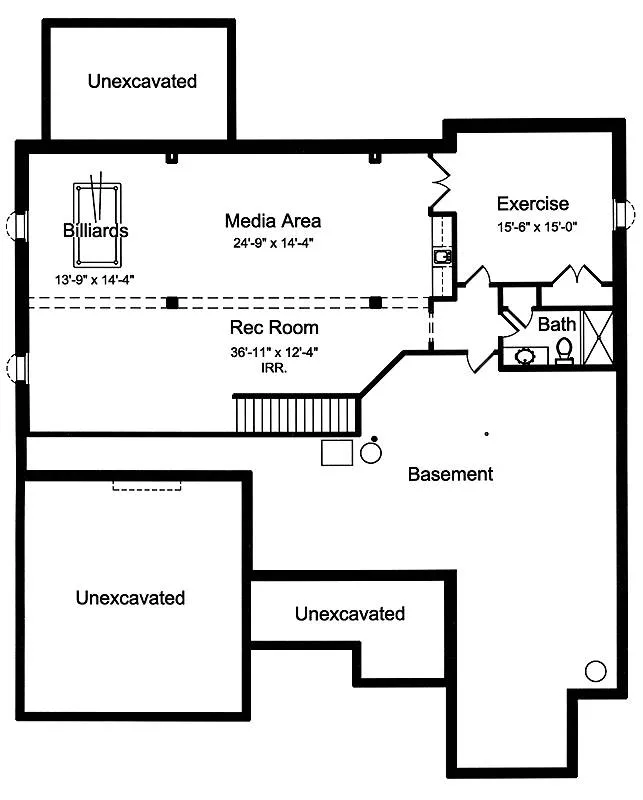

Optional Finished Basement Plan
© copyright by designer
Mouse over photo to pause

Carmelite 3 Bedroom Traditional Style House Plan 7849

Sophisticated and functional are words used to describe this wonderfully designed one level home. Brick, stone, multiple gables and carefully selected details create a beautiful façade. The open floor plan showcases a great room with gas fireplace, kitchen with large island and spacious, informal dining area, each space topped by an 11' raised ceiling height of various styles.  Read more >

House Plan Details

Sq. Ft.
2,731
Beds
3
Baths
2.5
Stories
1
Garages
2
Width
60' 0"
Depth
75' 0"
Select Plan Package
PDF
$950
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,731
1st Floor SQ. FT.:
2,731
Covered Rear Porch:
226
Bedrooms:
3
Bathrooms:
2.5
Garage:
2
Stories:
1
Main Ceiling Height:
9'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Truss
Roof Pitch:
Primary: 8:12
Secondary: 12:12
Width:
60' 0"
Depth:
75' 0"
Height:
29' 6"
Exterior Styles:
Country
French Country
Ranch
Traditional
Unheated Living Space:
Garage: 498
Porch: 170
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Kitchen Features:
Country Kitchen
Kitchen Island
Additional Features:
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Unfinished Space
Vaulted Ceilings
Garage Features:
Attached
Front-entry
Garage Location:
Front
Lot Features:
