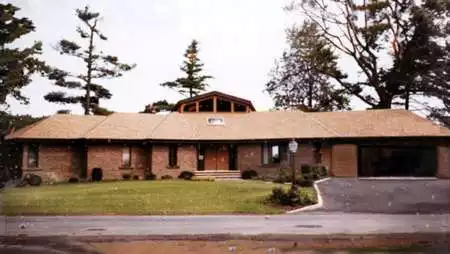

House Plan 3724: CARMEL

The angled floor plan permits flexibility in site placemrnt for this contemporary ranch. Past the inviting entrance, the skylighted foyer awaits guests with a dramatic 14 1/2-ft. vaulted ceiling. An open staircase also invites one to the lower level.  Read more >

House Plan Details

Sq. Ft.
1,816
Beds
3
Baths
2.1
Stories
1
Garages
2
Width
88' 4"
Depth
57' 9"
1st Floor
1,816
Bonus
1,435
Garage
420
Deck
691
Select Plan Package
PDF Construction Set - Si
$925
Select Foundation Options
$100
Basement
$0
Optional Add-Ons
Subtotal: $795

PLAN IMAGES

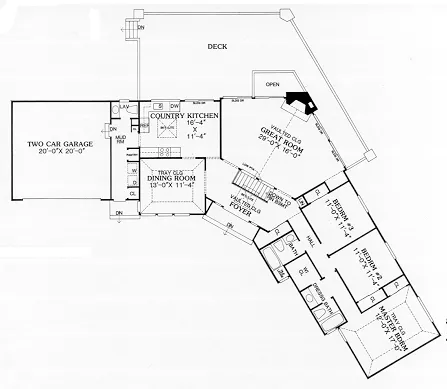

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 2
Stories: 1
Exterior Style
Contemporary
Modern
Ranch
Dimensions
Width: 88' 4"
Height: 20' 6"
Depth: 57' 9"
Heated Living Space
Total Sq. Ft: 1,816
1st Floor: 1,816
Bonus: 1,435
Unheated Living Space
Garage: 420
Deck: 691
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 8'-1"
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
His and Hers Master Closets
Master Bdrm Main Floor
Kitchen Features
Country Kitchen
Nook / Breakfast Area
Additional Room Features
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Mud Room
Unfinished Space
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for sloping lot
Roof Pitch
Primary: 7/ 12
